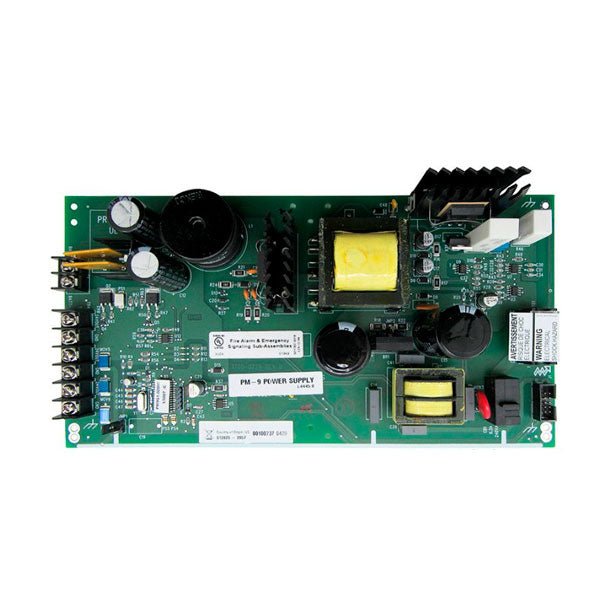

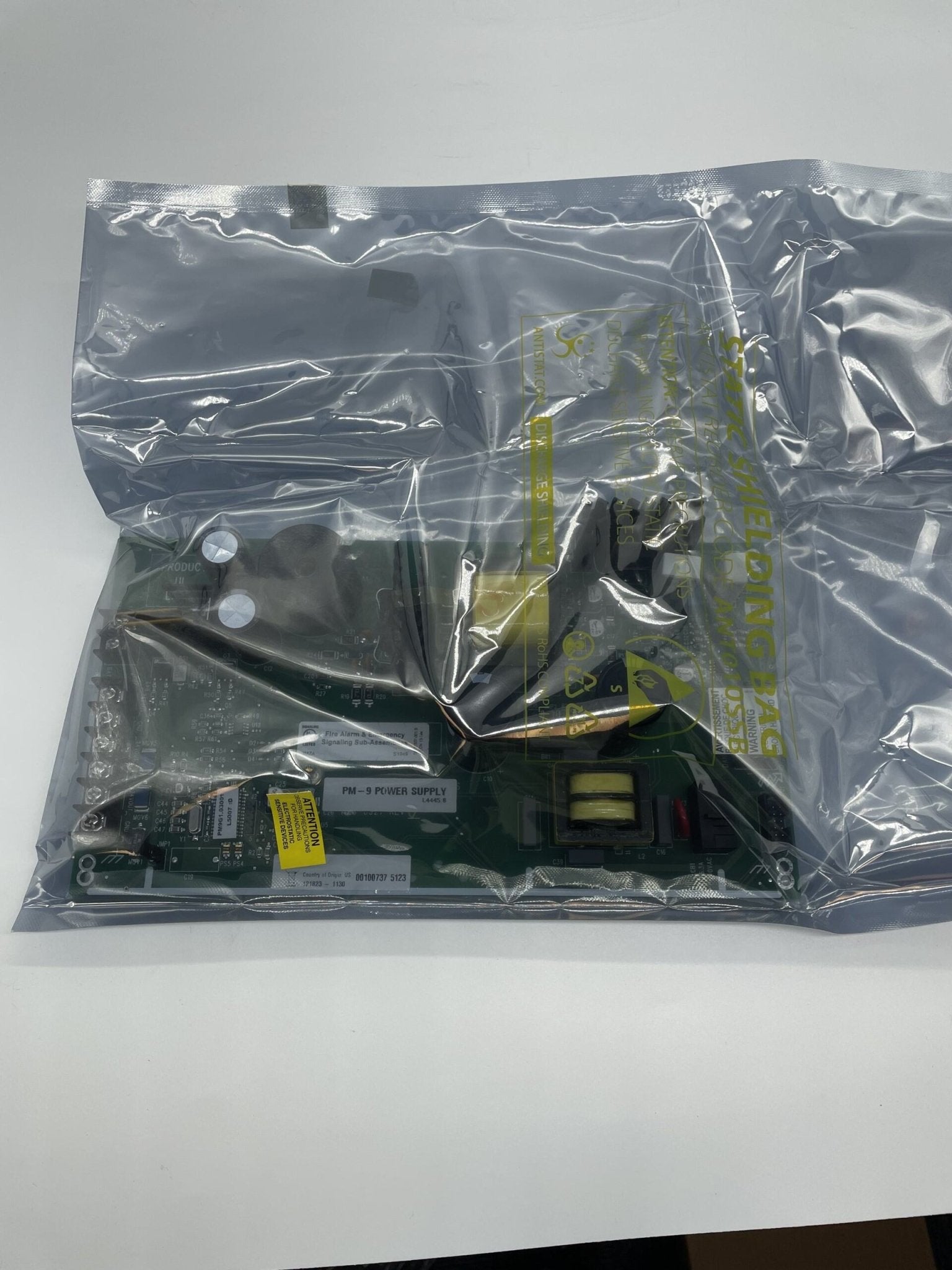

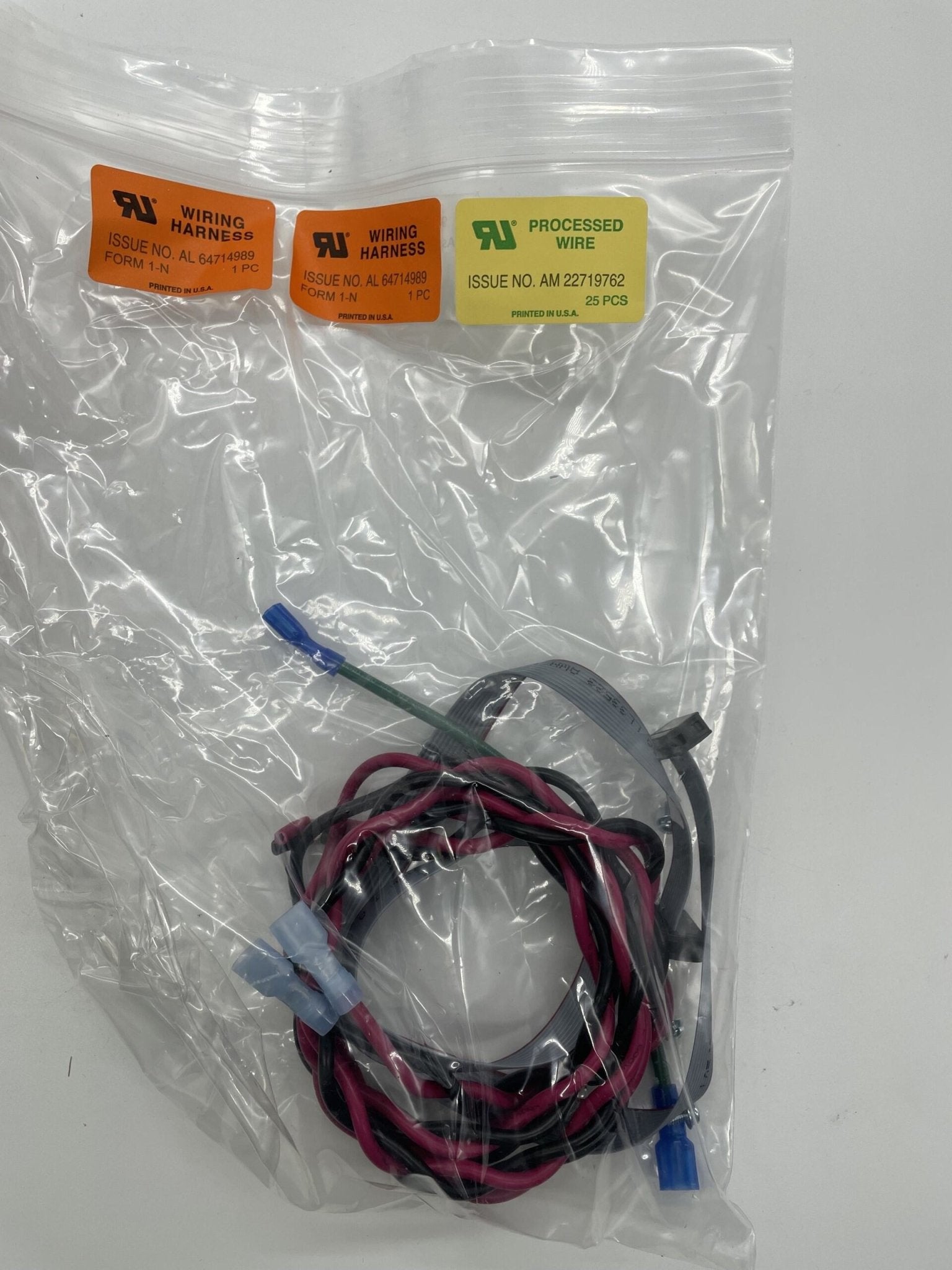

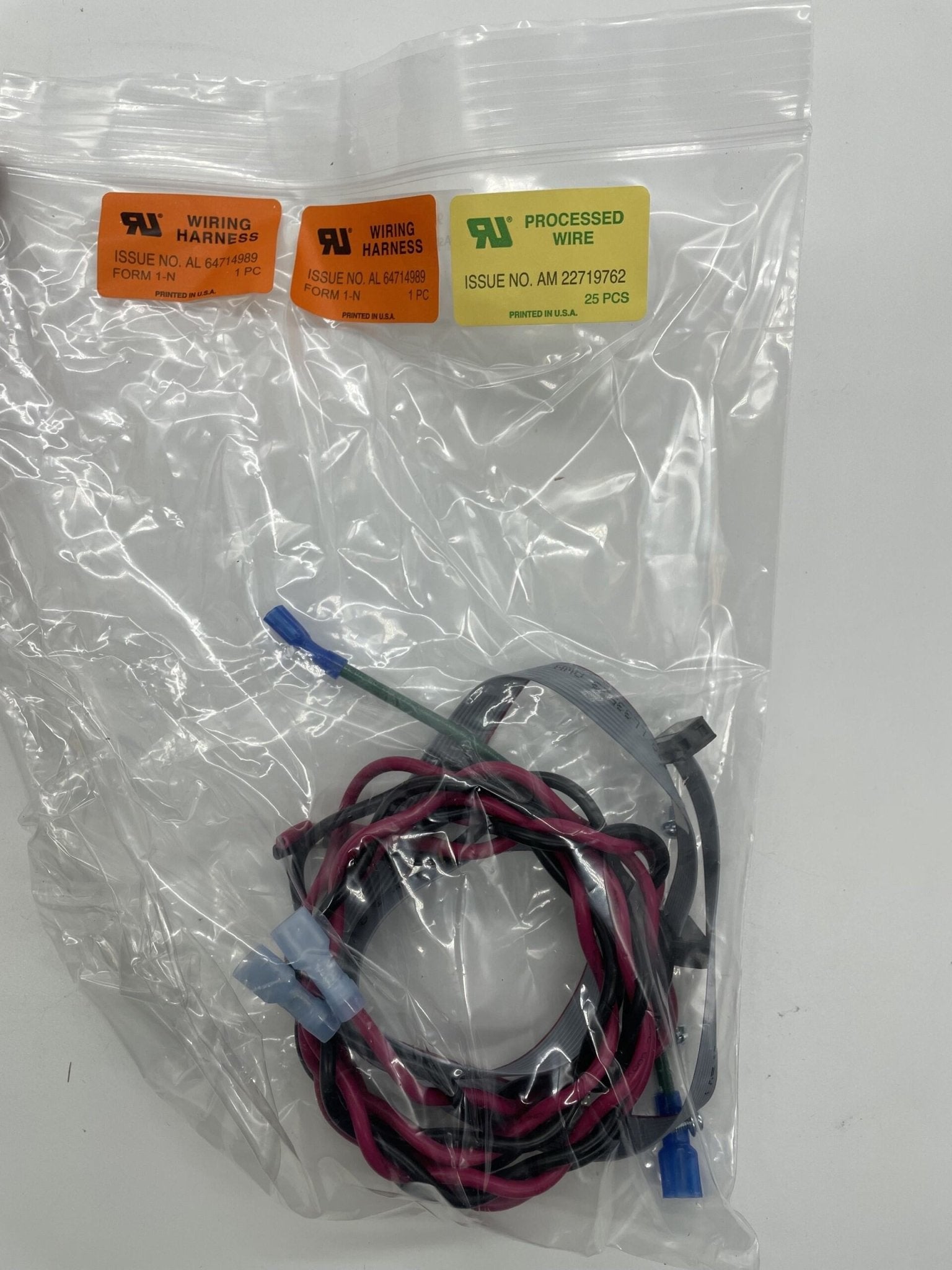

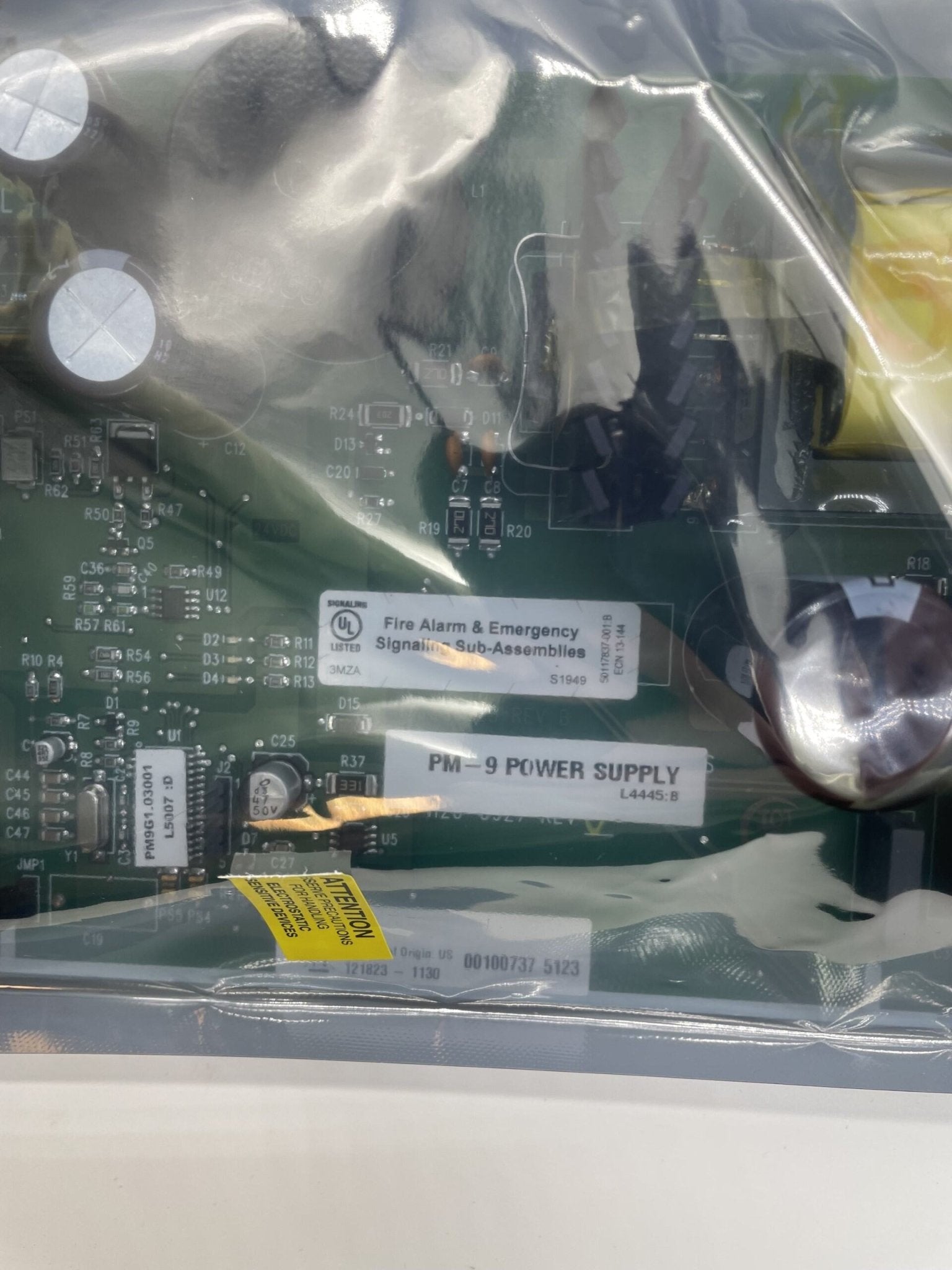

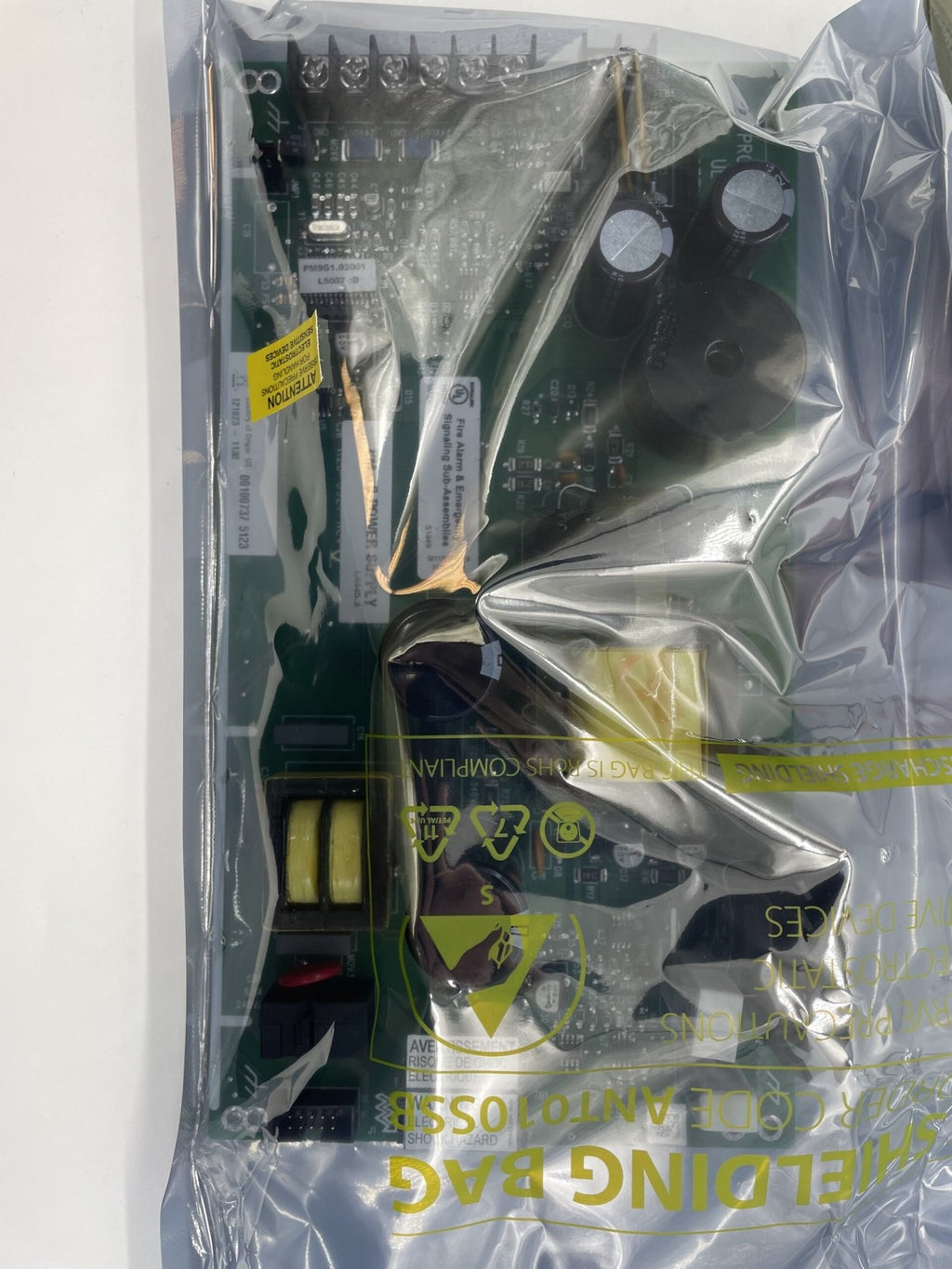

Gamewell-FCI PM-9 — 120 VAC, 60 Hz switching power supply and battery charger that provides 9 amperes of filtered, regulated 24 VDC (nominal) to E3 Series® system components.
The PM-9 is the main power module for the E3 Series Expandable Emergency Evacuation System, the E3 Series Combined Fire and Mass Notification System, and the E3 Series Broadband Voice Evacuation System. Switching technology keeps the module compact and efficient, and an internal battery charging circuit delivers 1 ampere of charging current and will maintain batteries up to 55 AH (batteries are not furnished). The module typically mounts in E3 Series cabinets — Cabinet B backbox, the INX-E3 or INCC-E3 sub-assembly plate in Cabinet C, the E3-INX-D or E3-ILI-D plate in Cabinet D — or in retrofit kits.
Specifications
| Type |
Power supply and battery charger, 120 VAC |
| Input voltage |
120 VAC 60 Hz @ 3.5 A max. |
| Output voltage |
24 VDC (nominal) FWR |
| Output current |
9 amperes |
| Battery charging current |
1 ampere |
| Battery capacity supported |
Up to 55 AH (batteries not furnished) |
| Alarm current |
0.050 A |
| Operating temperature |
32°F to 120°F (0°C to 49°C) |
| Relative humidity |
0 to 93% non-condensing at 90°F (32°C) |
| Dimensions |
10 1/2 in. W x 5 in. H x 2 in. D (27 x 13 x 5 cm) |
| Standards |
UL 864 10th Edition; UL 2572 2nd Edition for Mass Notification |
| Listings |
UL S1869 Vol. 14 (UL 864 10th Ed.) and S1949 Vol. 19 (UL 2572 2nd Ed.); FM 3017416; MEA FDNY COA 6077; CSFM 7165-1703:0125; City of Chicago (Class 1, Class 2, High Rise); City of Denver approved |
| Country of origin |
U.S.A. |
Installation notes
-
Batteries not included: the integral charger will recharge batteries up to 55 AH, but the batteries themselves are not furnished with the module.
-
120 VAC only: this is the 120 VAC 60 Hz model; do not apply it to a 220/240 VAC supply.
-
Cabinet mounting: mounts in Cabinet B backbox, Cabinet C INX-E3 or INCC-E3 sub-assembly plates, Cabinet D E3-INX-D or E3-ILI-D plates, or retrofit kits — confirm the plate for your enclosure before ordering.
-
Installation documents: refer to PM-9 Installation Instructions P/N 9000-0548, the E3 Series Expandable Emergency Evacuation Manual P/N LS10080-000GF-E, and the Mass Notification System Manual P/N LS10013-000GF-E. The data sheet itself is not intended for installation purposes.
-
Environment: rated 32°F to 120°F, but the manufacturer recommends a normal room temperature of 60–80°F (15–27°C) because extremes shorten standby battery and electronics life.
Related models
-
29229 — AC line filter kit listed as an accessory for this power supply
Specifications taken from the Gamewell-FCI data sheet "PM-9 120 VAC Power Supply," document 9020-0555 Rev. R (06/20). Manufacturer specifications are subject to change without notice.
