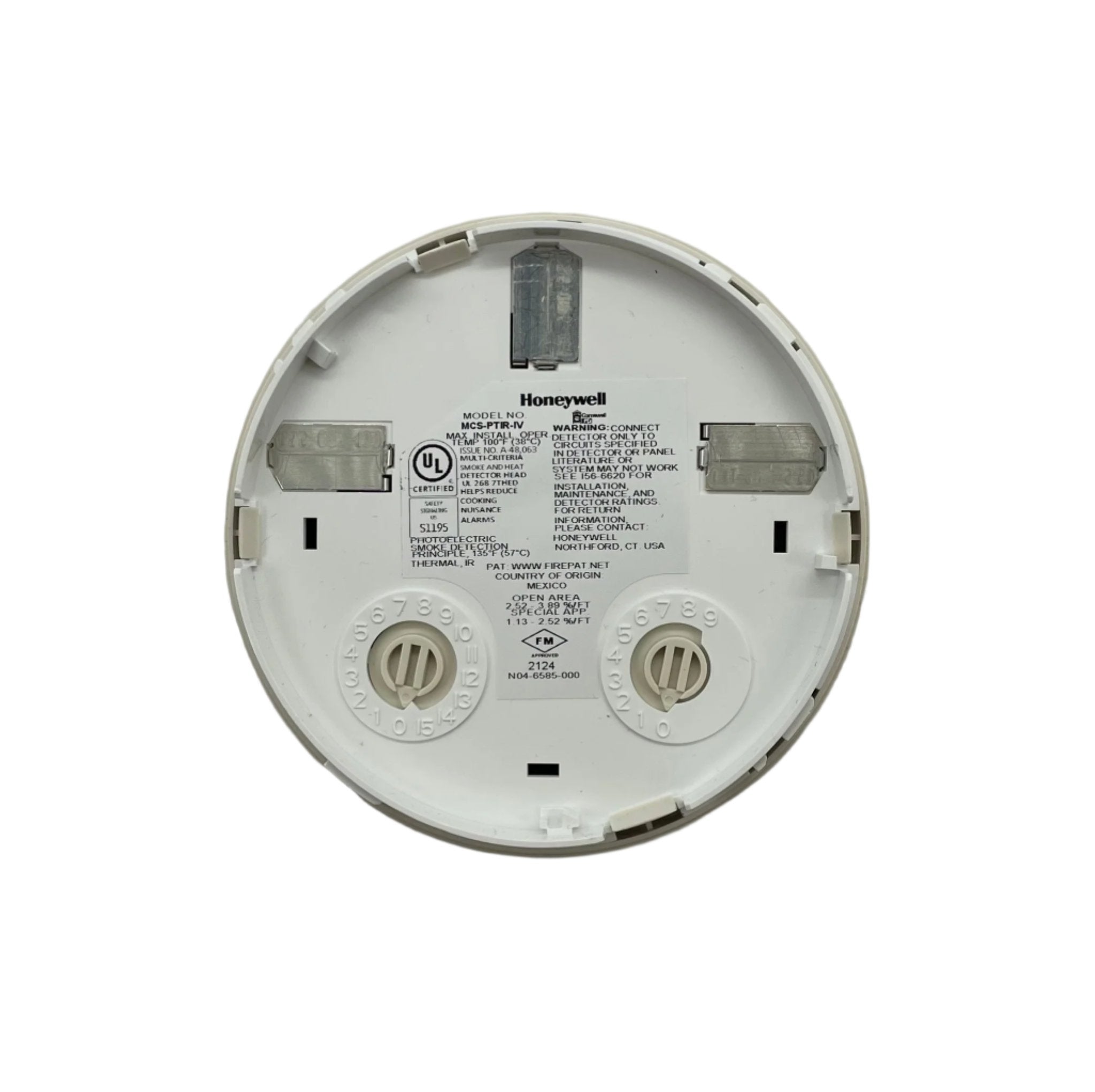

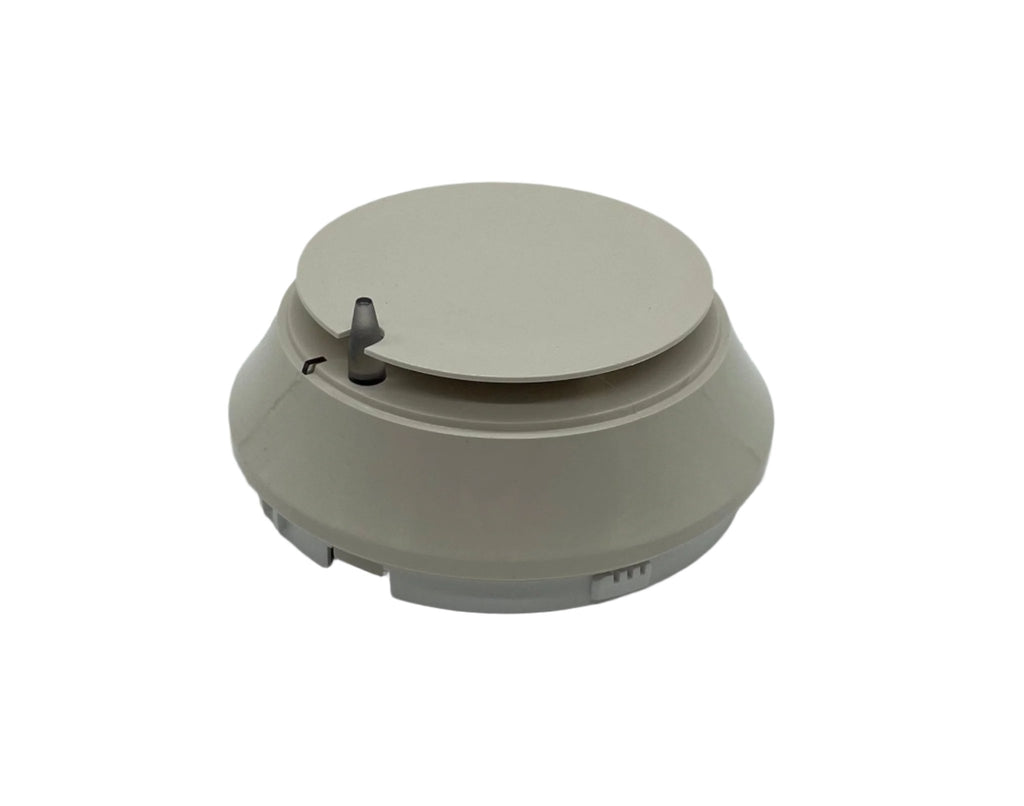

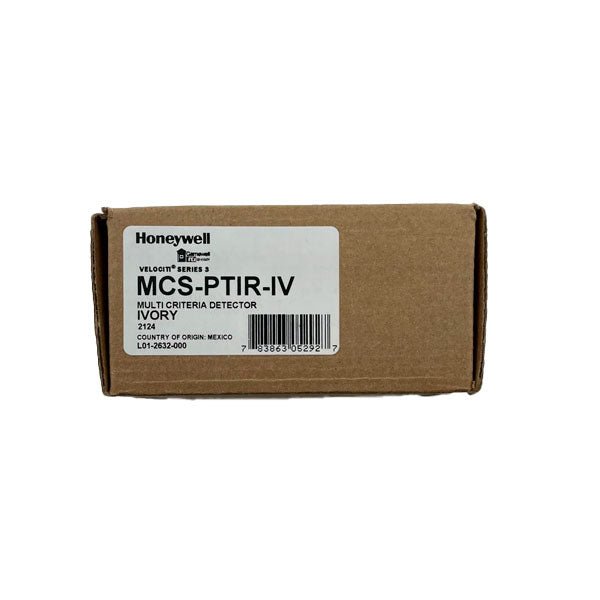

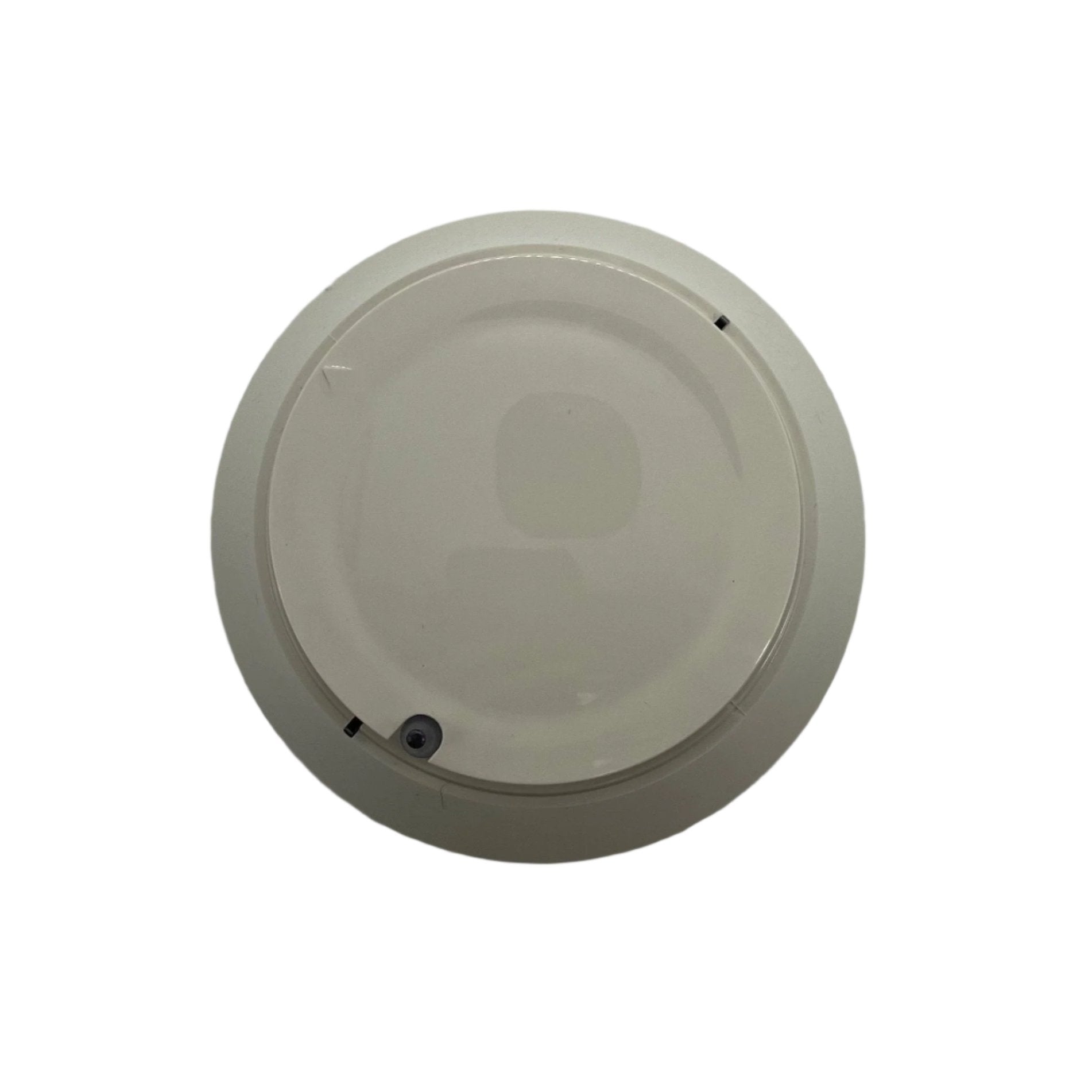

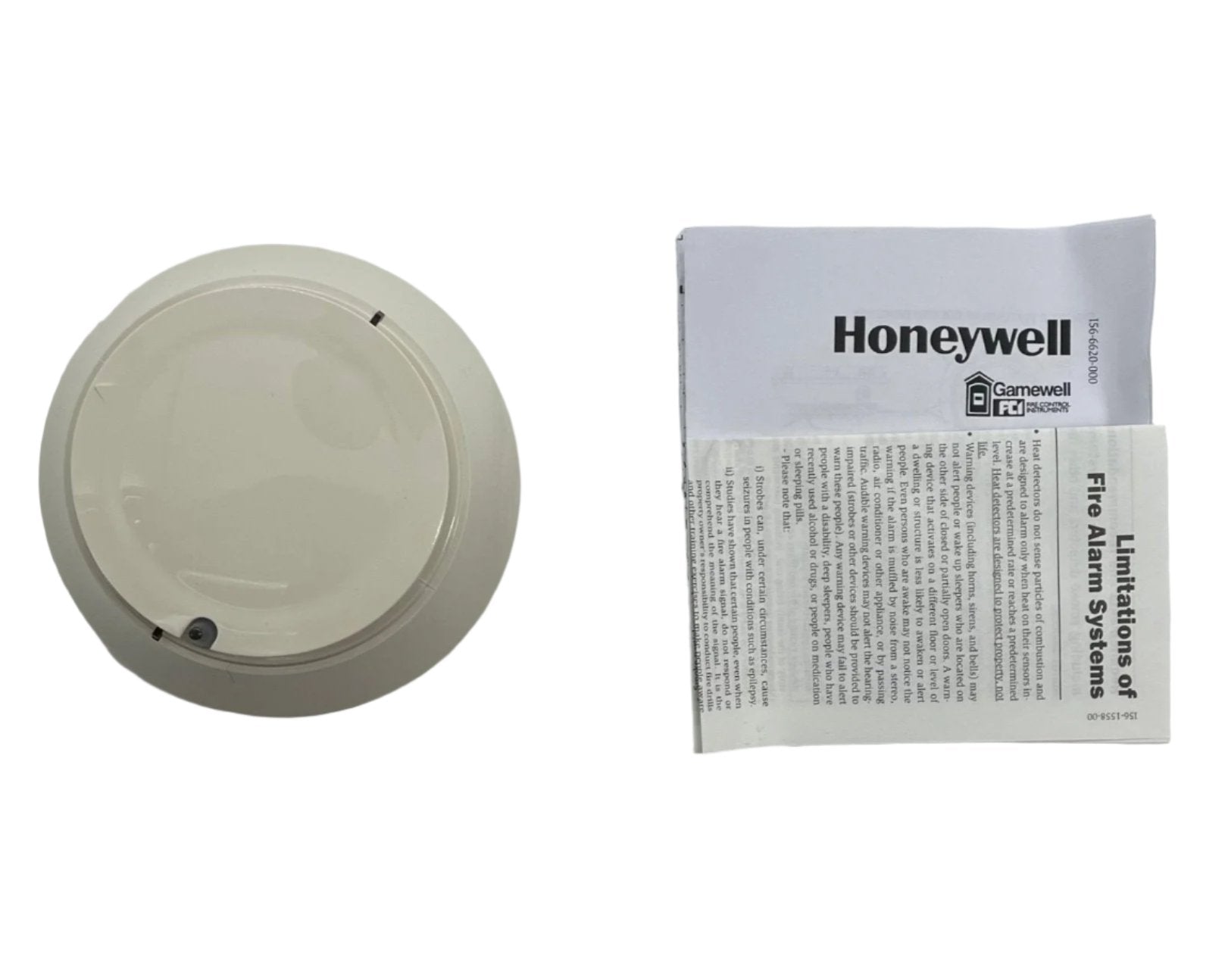

Gamewell-FCI MCS-PTIR-IV Multi-Criteria Photo/Thermal/Infrared Detector
MCS-PTIR and MCS-PTIR-IV are intelligent, multi-criteria detectors that combine photoelectric, thermal, and infrared (PTIR) sensors in one unit to sense multiple components of a fire.
This approach enables enhanced sensitivity to real fire with heightened immunity to nuisance particulates.
Multiple sensors and communication can greatly reduce nuisance alarms compared to single sensing methods.
Sophisticated algorithms maximize the advantages of all four sensor types, creating our best detection strategy offering heightened immunity to nuisance particulate and enhanced sensitivity to real fire.
• Photoelectric sensor detects airborne particles associated with smoke.
• Thermal sensor detects heat and rate-of-rise (135°F fixed temperature threshold).
• Infrared sensors discern light patterns in the environment as an additional data point for alarm determination.
This ability to reject certain nuisance alarm triggers, such as theater smoke, supports the use of the detector in applications where moderate to heavy nuisance conditions exist that might cause single sensing detectors to trigger a false alarm.
The PTIR detector meets UL 268 7th edition and UL 521 certification requirements and can indicate distinct smoke and heat alarms. This dual nature supports a local alarm setting for photoelectric detection and a general evacuation setting based on thermal detection. This can minimize work interruptions in multi-level buildings.
Documents
FAQ
What is the difference between the MCS-PTIR-IV and the MCS-PTIR?
The MCS-PTIR-IV is ivory and runs on both Velociti and CLIP protocols. The MCS-PTIR is bright white and Velociti only.
Is a base included?
No. Compatible bases include the B501-IV and B300-6-IV standard bases, B200S-IV sounder base, B224BI-IV isolator base and B224RB-IV relay base.
What are the electrical ratings?
15 to 32 VDC, 200 µA operating current at 24 VDC, 2 mA maximum alarm current and 4.5 mA maximum current.
Where should it be installed?
It is rated for 32°F to 100°F (0°C to 38°C), 15% to 90% RH non-condensing, and air velocity up to 300 ft/min.
