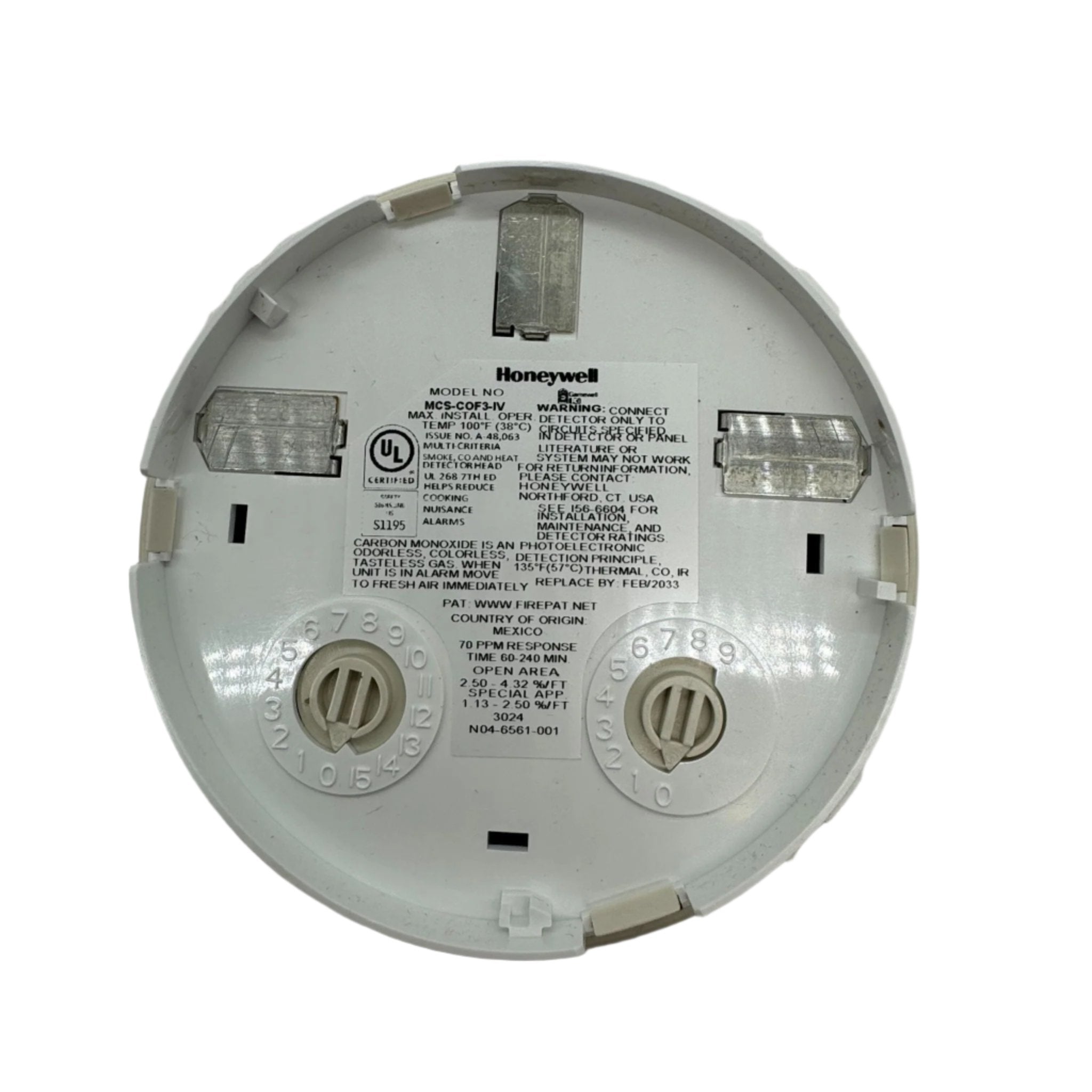

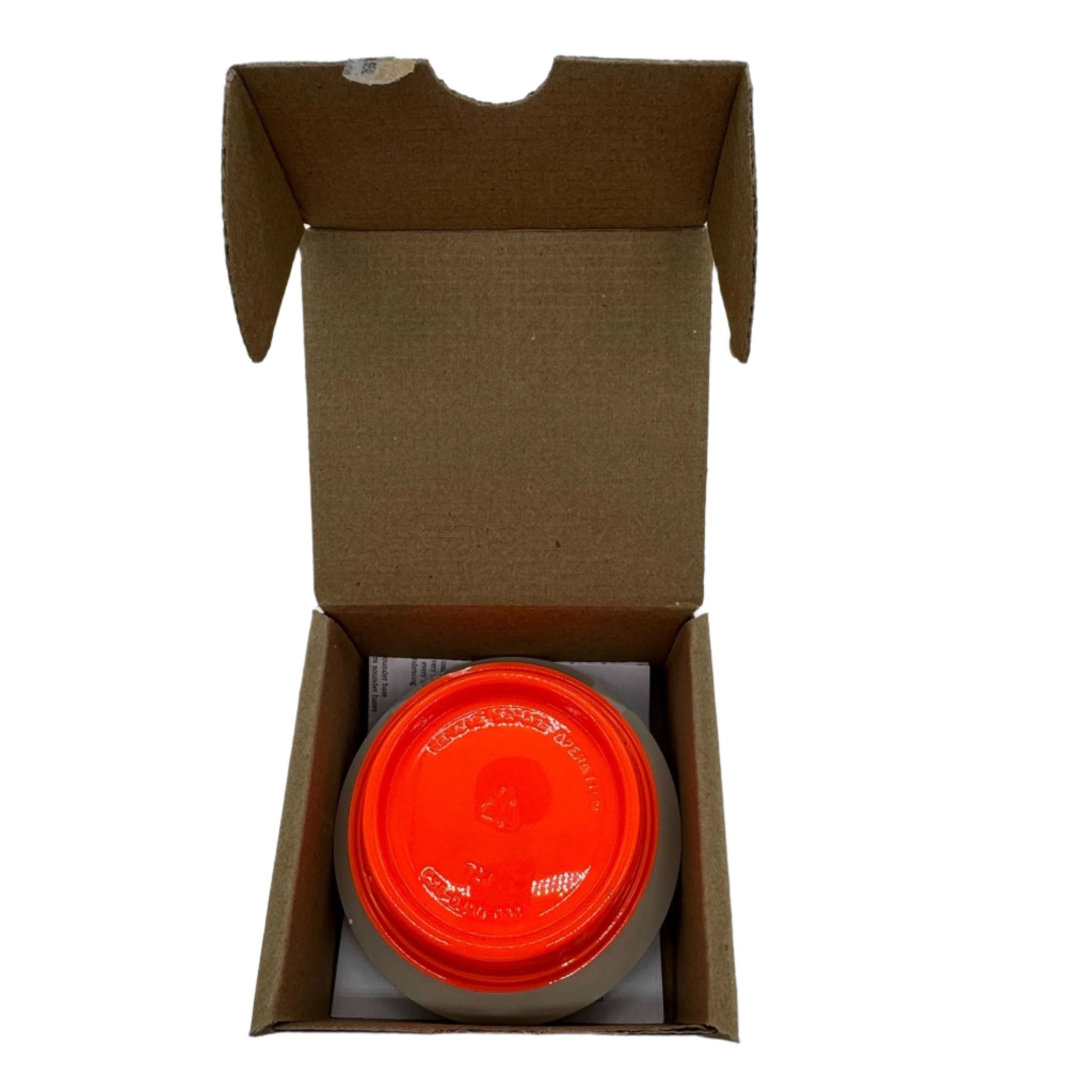

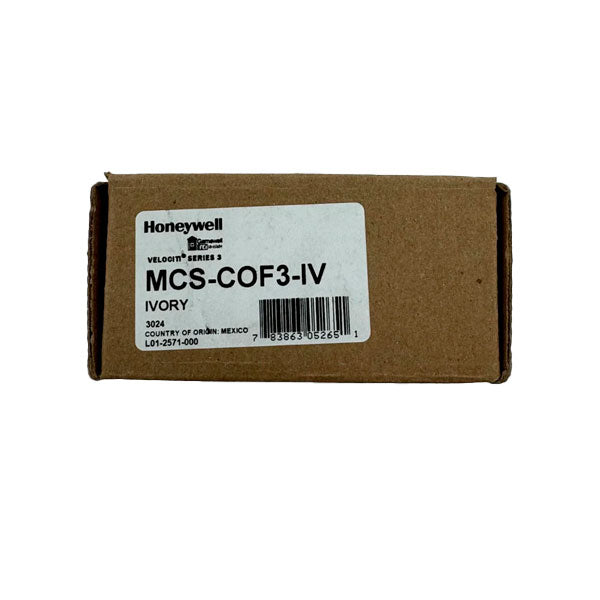

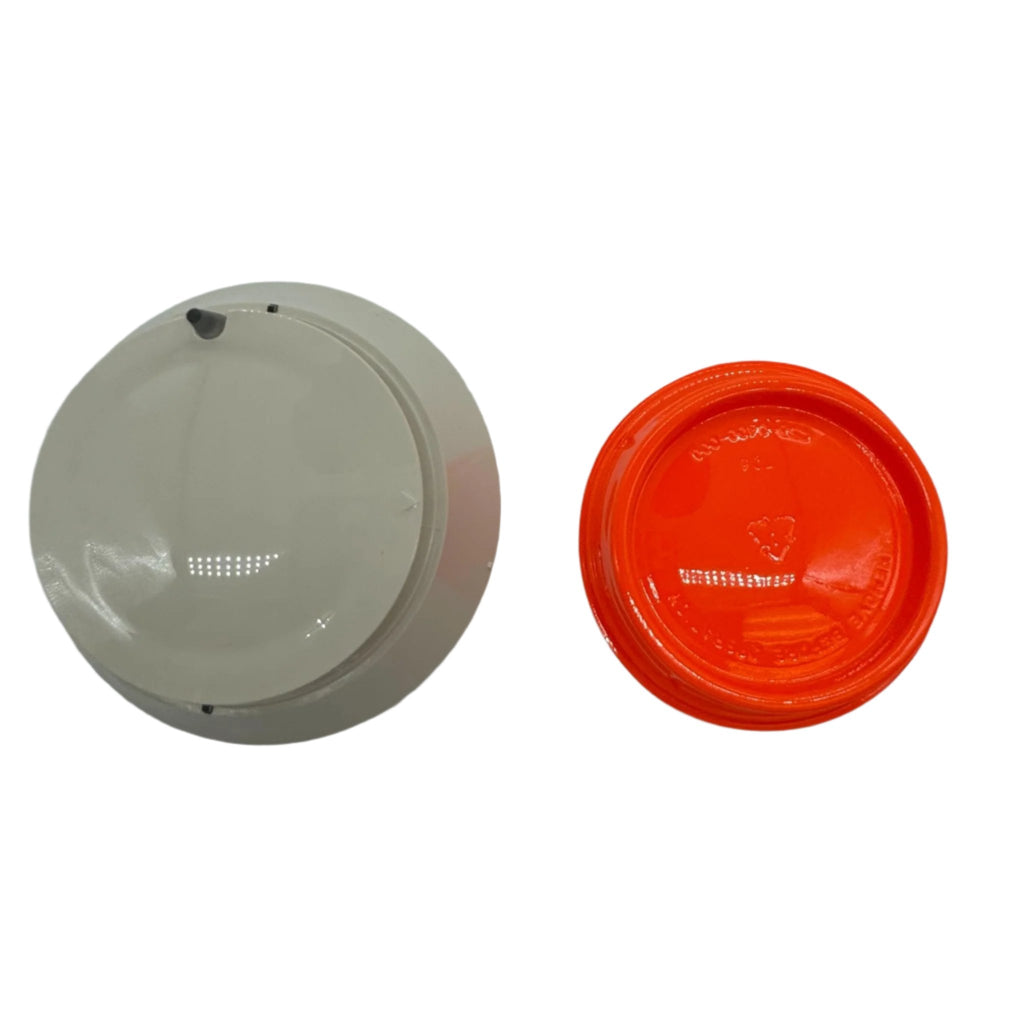

Gamewell-FCI MCS-COF3-IV — a plug-in addressable multi-criteria fire/CO detector in ivory that combines four separate sensing elements — smoke, carbon monoxide, light/flame and heat — while using only one address on the SLC loop.
Photoelectric sensors detect airborne particles associated with smoke; thermal sensors detect heat and rate-of-rise with a 135°F fixed temperature threshold; infrared sensors discern light patterns in the environment as an additional data point for alarm determination; and an electrochemical CO cell creates a separate signal for life safety carbon monoxide detection. Sophisticated algorithms combine all four sensor types for enhanced sensitivity to real fire with heightened immunity to nuisance particulate — including the ability to reject triggers such as theater smoke, which suits the detector to spaces where moderate to heavy nuisance conditions would false-alarm a single-sensing detector. B200S series intelligent sounder bases are recommended: they generate a Temp 3 pattern for fire or a Temp 4 pattern for CO alarm, and recognize the System Sensor synchronization protocol so the base can form part of the general evacuation signal. The mounting base is ordered separately.
Specifications
| Type |
Advanced multi-criteria fire/CO detector, ivory color |
| Sensing elements |
Photoelectric smoke, electrochemical CO, infrared light/flame, thermal heat |
| Thermal threshold |
Heat and rate-of-rise; 135°F fixed temperature threshold |
| Protocol |
Velociti® SLC protocol; uses only one address on the loop |
| Operating voltage range |
15 to 32 VDC |
| Operating current @ 24 VDC |
200 uA (one communication every 5 seconds, green LED blink on communication) |
| Maximum alarm current |
2 mA @ 24 VDC (one communication every 5 seconds, red LED solid on) |
| Maximum current |
4.5 mA @ 24 VDC (one communication every 5 seconds, amber LED solid on) |
| Isolator load rating |
0.0063 |
| Height |
2.7 in. (69 mm) installed in B200S series sounder base |
| Diameter |
6.875 in. (175 mm) installed in B200S series sounder base |
| Weight |
3.4 oz. (95 g) |
| Operating temperature range |
32°F to 100°F (0°C to 38°C) |
| Operating humidity range |
15% to 90% relative humidity, non-condensing |
| Air velocity |
0 to 4000 ft./min. (0 to 1219.2 m/min.) |
| CO cell life |
10-year CO cell with end-of-life warning |
| CO alarm thresholds |
70 ± 5 ppm: response 60–240 min.; 150 ± 5 ppm: response 10–50 min.; 400 ± 10 ppm: response 4–15 min. |
| Standards |
UL 268 7th Edition; UL 521; UL 2075 (tested to the sensitivity limits defined in UL 2034) |
| UL |
S1195 |
| CSFM |
7272-1703:0508 |
| Country of origin |
Mexico |
Installation notes
-
Velociti® protocol only: the MCS-COF3 family operates in Velociti® SLC protocol. Confirm panel compatibility before specifying it on a legacy loop.
-
One address, two alarm types: the detector occupies a single SLC address but reports fire and CO as separate signals — program the panel so a CO alarm does not annunciate as fire.
-
Sounder base for distinct tones: a separate audible signal for fire (Temp 3) versus CO (Temp 4) requires a B200S series intelligent sounder base. A plain B501 or B300-6 base gives no local audible.
-
Narrower temperature range than a plain smoke detector: the CO cell limits the detector to 32°F to 100°F (0°C to 38°C). Do not use it in unconditioned spaces rated for wider-range detectors.
-
CO cell end of life: the electrochemical cell has a 10-year life with an end-of-life warning; budget for detector replacement rather than cell service.
-
Color kits are IR-specific: use the CK300-IR series color kits (cover and trim ring) — the standard CK300 kits are for detectors without the infrared sensor.
-
Ivory accessories: match the ivory body with B501-IV, B300-6-IV, B200S-IV, B224BI-IV or B224RB-IV bases and the TR300-IV trim ring.
Related models
-
MCS-COF3 — the identical detector in bright white.
-
MCS-COF — the earlier-generation multi-criteria fire/CO detector; different dimensions, weight, color offering and CSFM listing. Do not substitute its specifications for the COF3.
-
B200S-IV / B200S-LF-IV — ivory intelligent addressable sounder bases; the -LF version is low frequency.
-
RA100Z — remote LED annunciator.
-
M02-04-00 / M02-09-00 — detector test magnet and telescoping test magnet.
Specifications taken from the Gamewell-FCI data sheet “MCS-COF3 and MCS-COF3-IV Multi-Criteria Fire/CO Detector,” document 9021-61099 rev. A (04/19). Manufacturer specifications are subject to change without notice.
