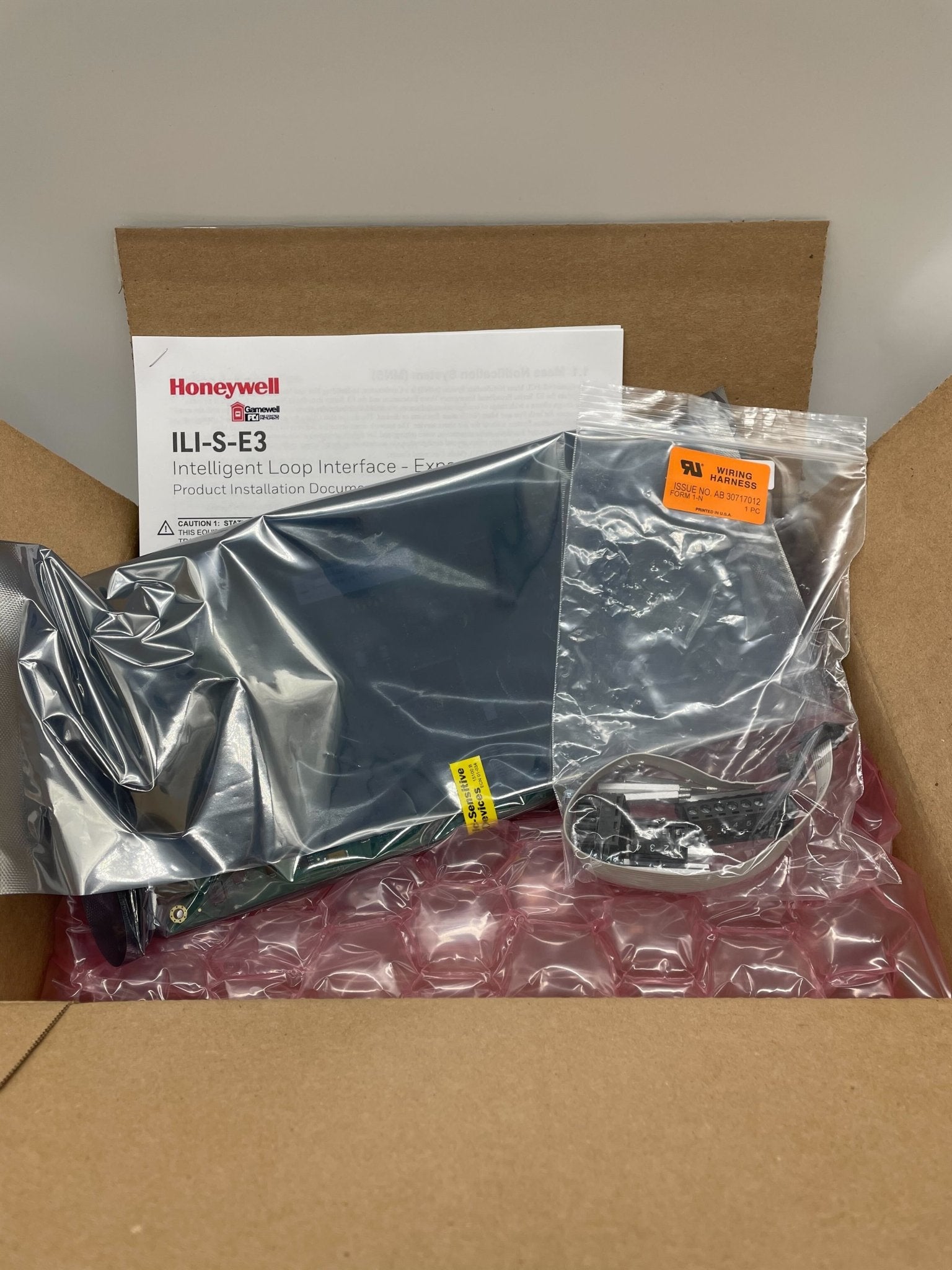

Gamewell-FCI ILI-S-E3 is the Intelligent Loop Interface expansion board for E3 Series control panels. It adds two electrically isolated signaling line circuits to the system and occupies one node on the Broadband network.
The layout is similar to the ILI-MB-E3 main board with a number of components omitted, so it adds loop capacity rather than a second panel. Each SLC supports Velociti and CLIP devices, and the board is powered from the PM-9 or PM-9G power supply.
Specifications
| SLCs |
2, Class A, Class X or Class B |
| Velociti capacity |
159 detectors, 159 modules and 159 sounder bases per SLC |
| CLIP capacity |
99 detectors and 98 modules per SLC |
| Operating voltage |
24 VDC FWR from PM-9 / PM-9G |
| Current |
0.118 A operating, 0.119 A alarm |
| SLC line limits |
40 ohms maximum, 0.5 µF maximum |
| Temperature |
32 to 120 °F |
| Standards |
UL 864 10th Edition, UL 2572 2nd Edition |
Installation notes
- Class X wiring requires System Sensor M500X isolator modules
- Mounts in E3 Series cabinets on the E3-ILI-CPLATE, E3-INCC-CPLATE, E3-INX-CPLATE or D-plate options

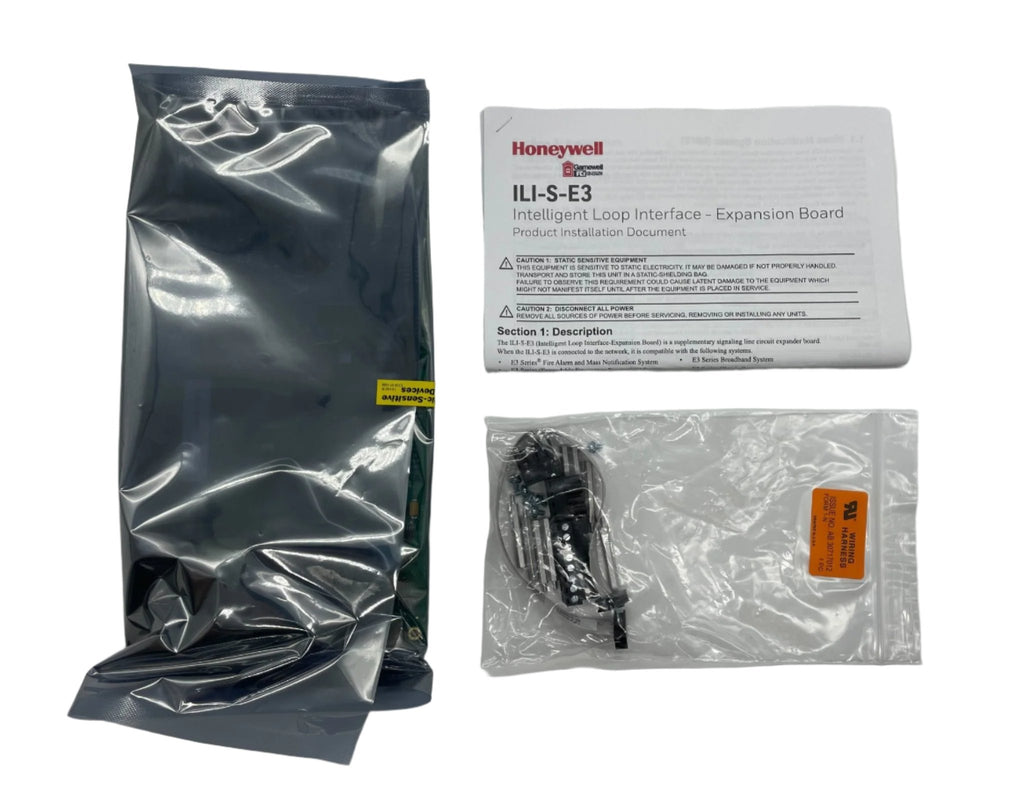

- Installation instructions: document 9000-0569
Related models
- ILI-MB-E3: main board with two SLCs, two NACs and relays
- ILI95-S-E3 and ILI95-MB-E3: ILI95 versions of the expansion and main boards
Documents
FAQ
Is the ILI-S-E3 a standalone panel?
No. It is a supplementary SLC expander for E3 Series systems and is used together with the ILI-MB-E3 main board.
How many devices does each loop support?
In Velociti mode, up to 159 detectors, 159 modules and 159 addressable sounder bases per SLC. In CLIP mode the installation instructions give 99 detectors and 98 modules per SLC.
What powers the board?
24 VDC FWR from the PM-9 or PM-9G power supply.
Can the SLCs be wired Class X?
Yes, but Class X wiring requires System Sensor M500X isolator modules.
