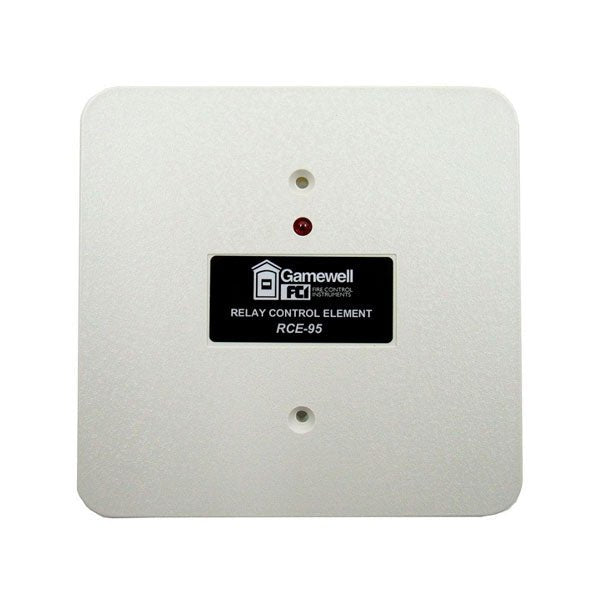

Gamewell-FCI RCE-95 — addressable relay control element that interfaces panel analog circuits to building functions and reports whether they actually operated.
Fire alarm panels must drive equipment they do not own: door holders, elevator recall, dampers, motors. The RCE-95 supplies the dry contacts from the signalling line circuit, plus a feedback input so the panel learns the equipment status instead of assuming the command took effect.
- For Gamewell-FCI 600 Series and ILI95-E3 Series analog addressable panels; XP95
- Two-wire non-polarized SLC connection; Style 4, 6 or 7 wiring; fully supervised
- Form-C dry contacts rated 2.0 A at 30 VDC or 0.2 A at 120 VAC, behind a 2 amp Slo Blow fuse
- 24 VDC from the analog circuit; standby current 0.0008 A, alarm current 0.0015 A
- Integral LED annunciates activation; address set by a single DIP switch on the board
- Surface or flush mount in a standard 4.688 in. backbox; 32 to 120 °F
Trim ring 70839 is ordered separately for flush mounting. RCD is the optional Relay Control Display, one per eight elements, and it works only with the IdentiFlex 632 and IF650.
Documents
FAQ
Which panels does the RCE-95 work with?
Gamewell-FCI 600 Series and ILI95-E3 Series analog addressable fire alarm control panels.
Does it confirm the relay operated?
Yes. It provides positive feedback of relay activation to the panel.
How is it mounted?
Surface or flush, in a standard 4.688 in. electrical backbox, in an easily visible location.
Is the wiring supervised?
Yes. It is fully supervised and supports Style 4, 6 or 7 wiring.
