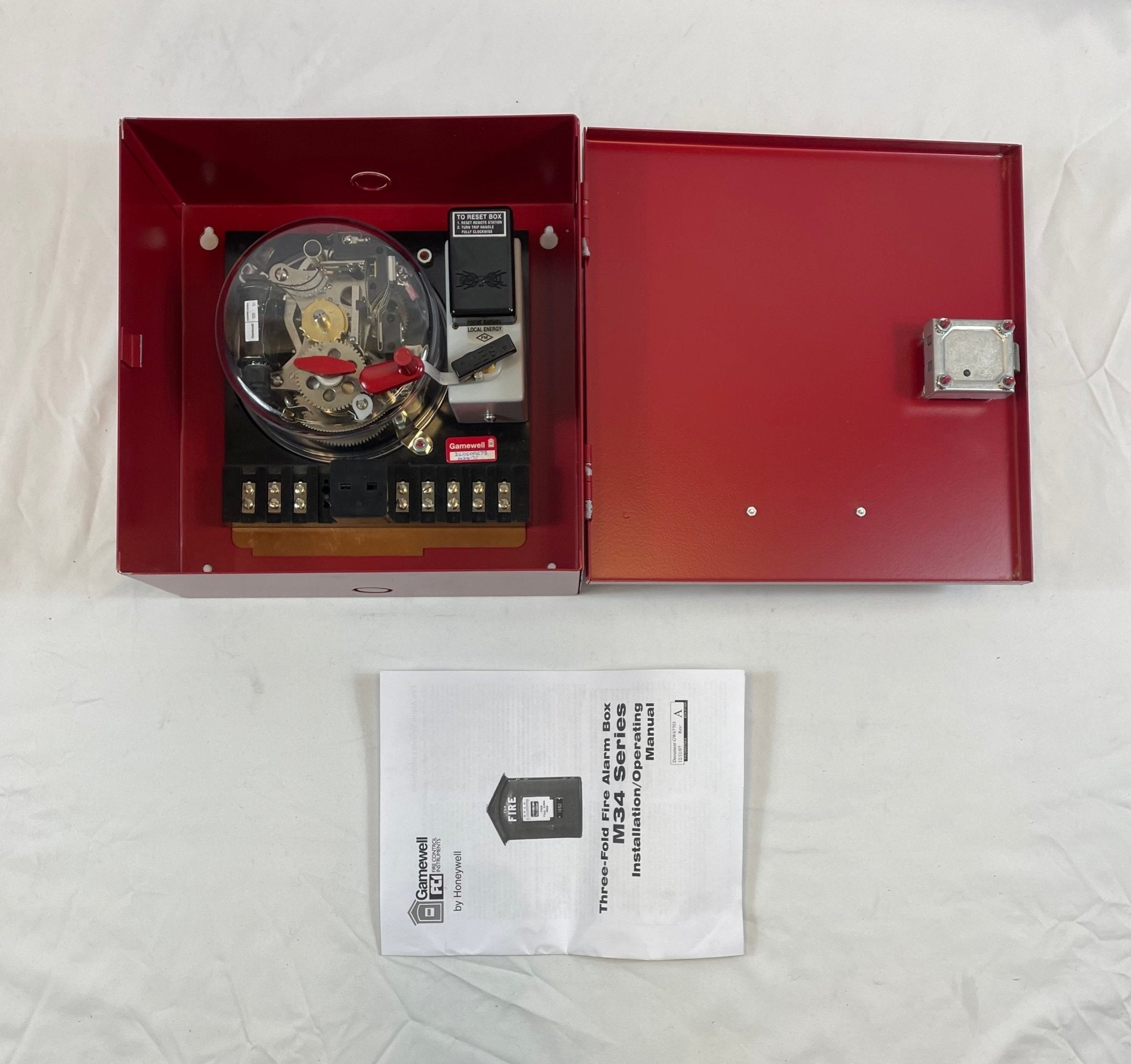

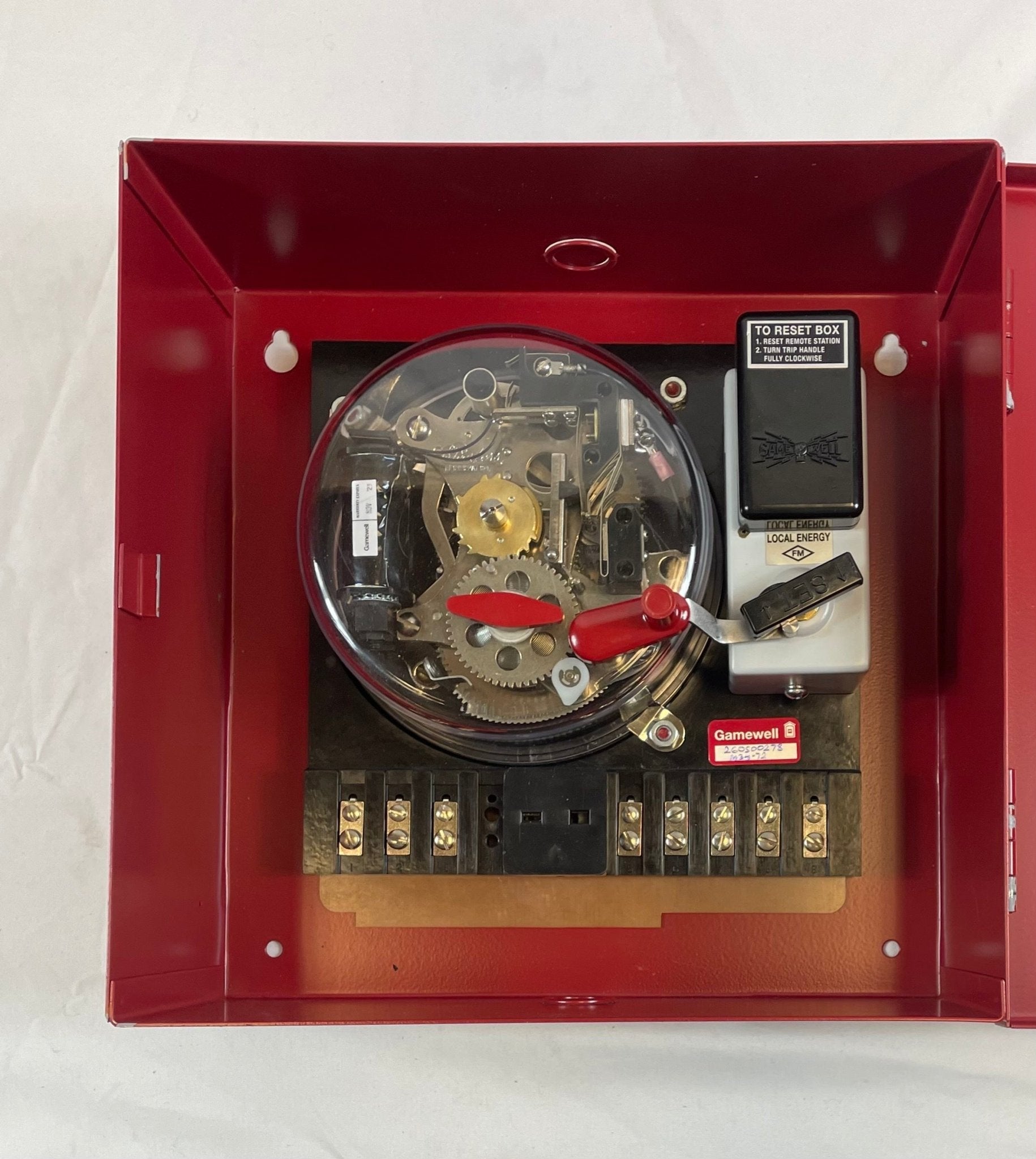

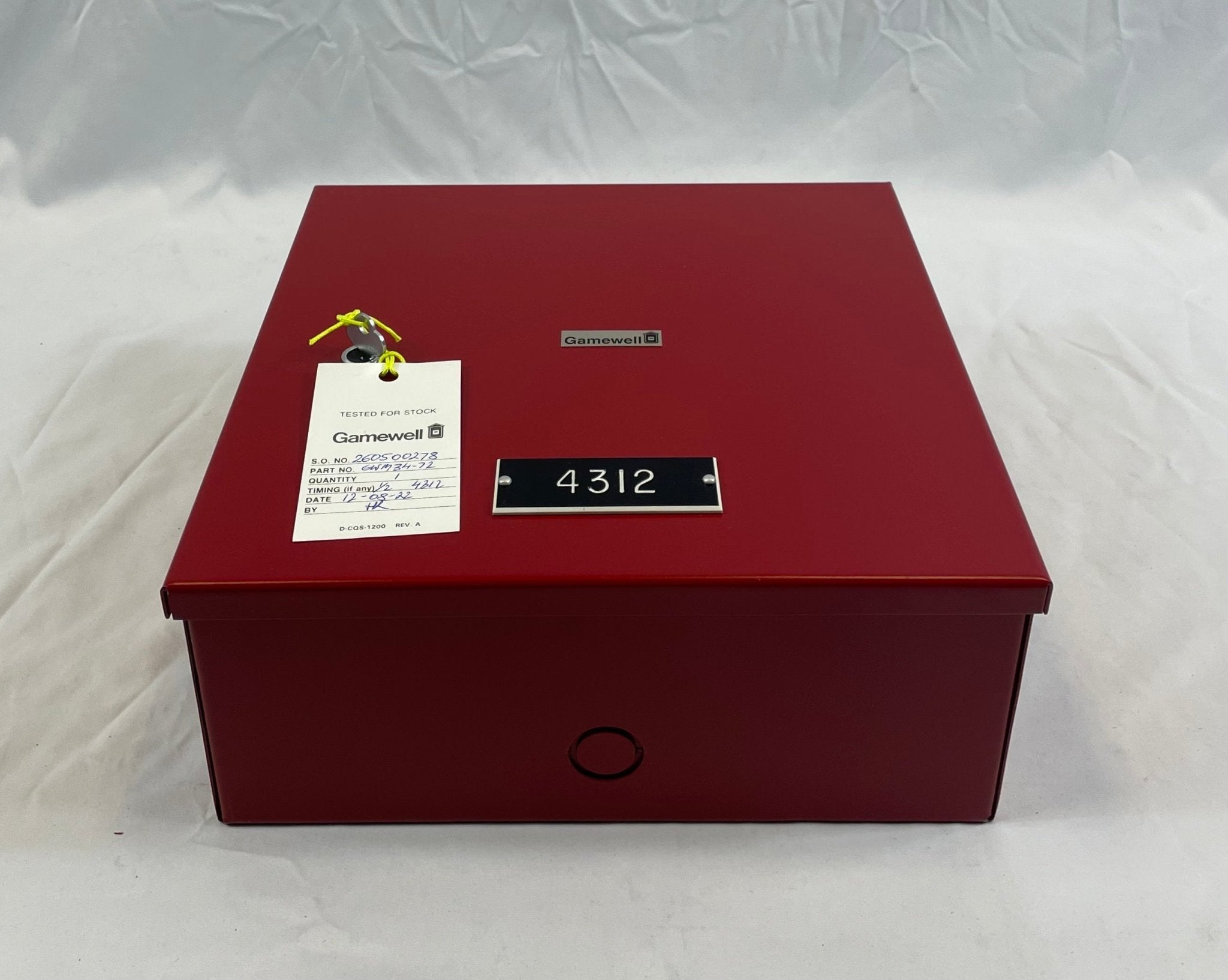

GWM34-72 is a Gamewell-FCI local energy trip transmitter for coded fire alarm reporting. The Gamewell-FCI data sheet CS-2261 lists the corresponding M34-72 as a local energy trip transmitter in a sheet metal housing with a plain door, without test block, tap key and bell; the figures below are from that sheet. It uses the Gamewell-FCI three-fold spring-driven movement and transmits its code number over a normally closed series metallic municipal or industrial circuit when tripped electrically by an interior fire alarm system.
Specifications
| Type |

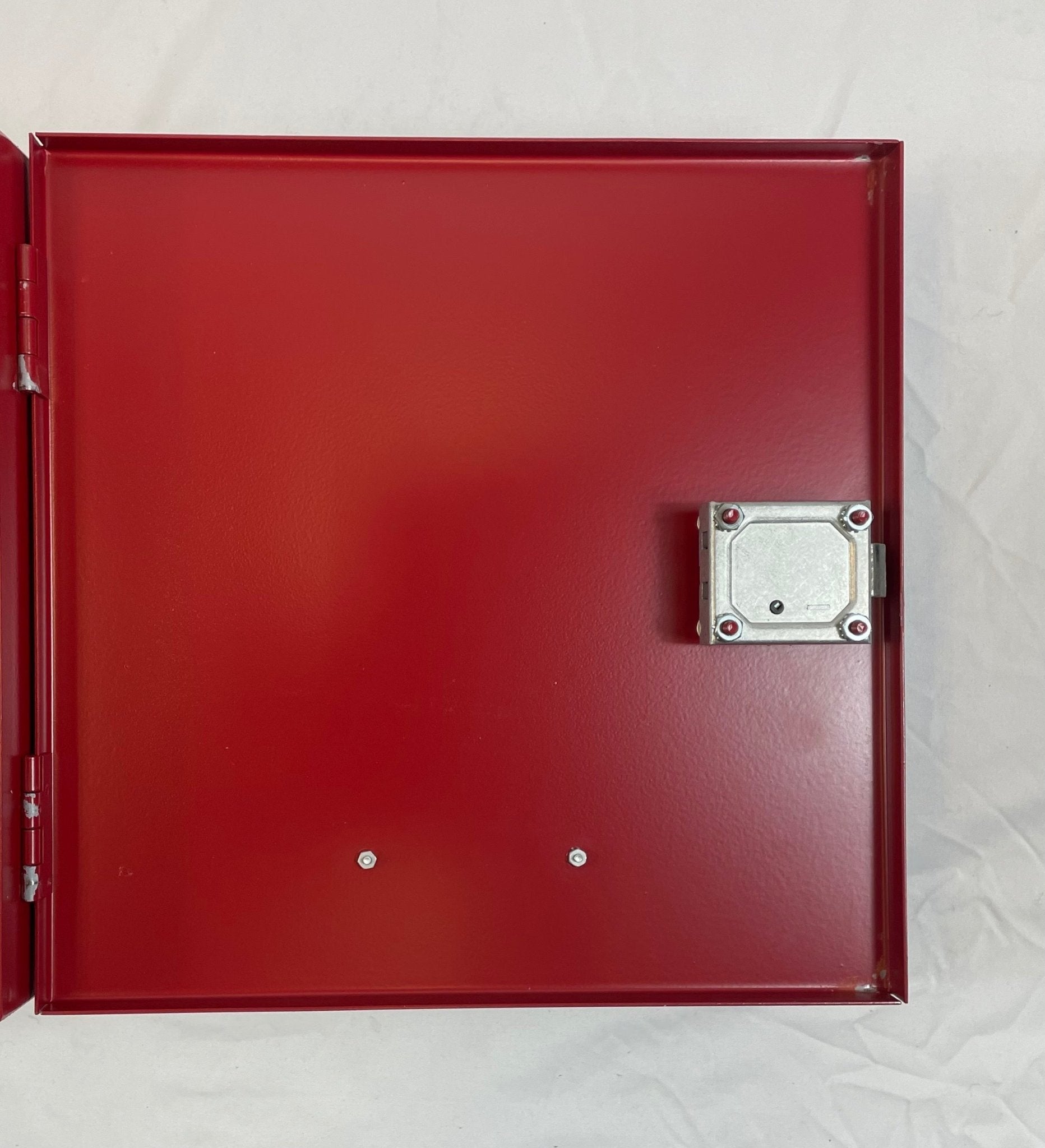

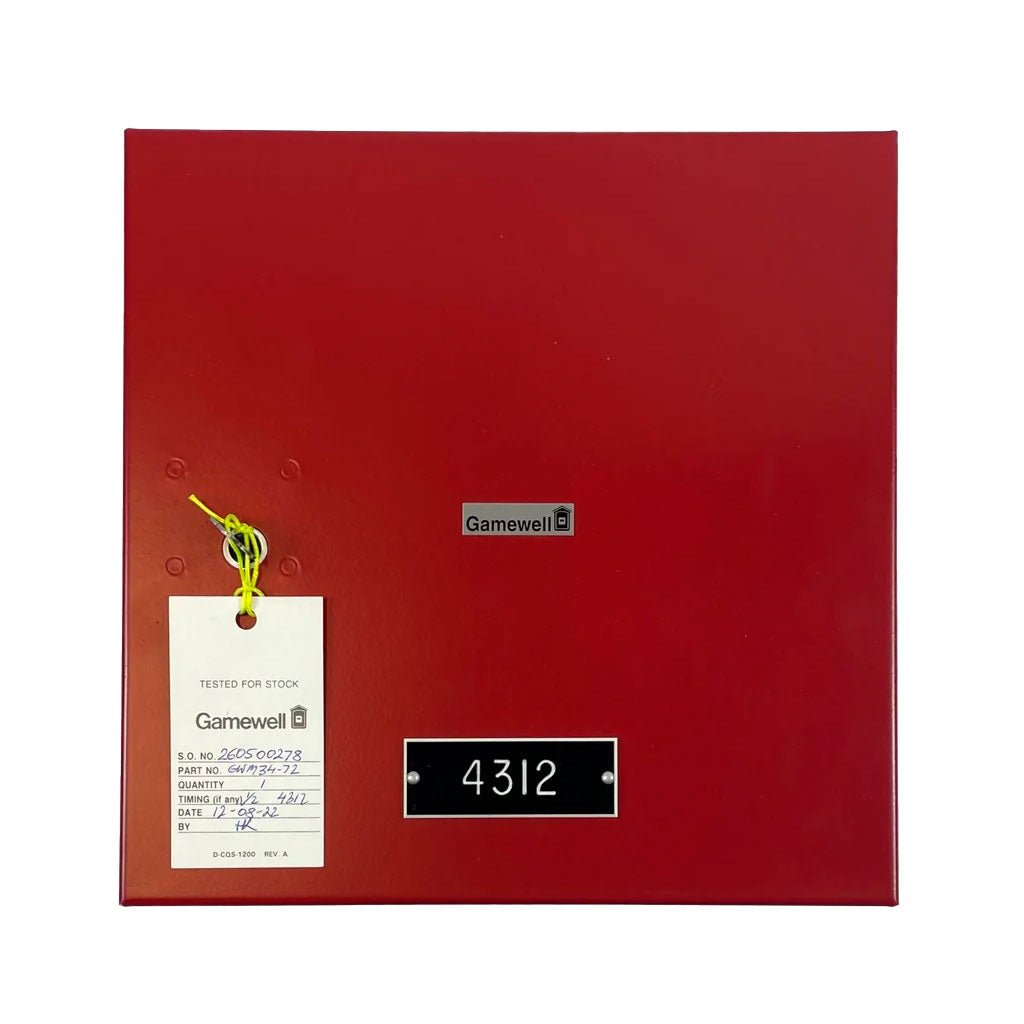

Local energy trip transmitter, sheet metal housing, plain door |
| Not included |
Test block, tap key, bell |
| Signaling circuit |
Normally closed series metallic circuit, normal DC flow 0.100 A |
| Rounds per alarm |
Four rounds of the box code |
| Trip coil alarm current |
0.250 A DC or 0.380 A 60 Hz AC |
| Auxiliary supervisory current |
Not more than 0.050 A DC or 0.070 A 60 Hz AC |
| Nominal coil voltage |
3.65 VDC or 50 VAC 60 Hz (series resistor for higher voltages) |
| Max. safe trip coil current |
125% of nominal |
| Coil insulation |
125 VAC (1,250 VAC breakdown test) |
Compatibility and installation notes
- A local energy type box needs a local power source for auxiliary operation; interior control panels designed to operate a local energy master box can perform the supervisory function.
- Auxiliary circuit wiring must be in rigid conduit and installed per the National Electrical Code.
- NFPA recommends the master box be placed outside, but convenient to, the protected building. With aerial lead-in wiring, lightning protection is recommended (Gamewell-FCI GW 44551-01 arrester).
- Honeywell lists the GWM34 local energy trip family as discontinued.
Related models
- M34-56, M34-110, M34-111 (cottage shell), M34-92, M34-113, M34-114 (flush) and M34-75: other local energy trip versions.
- M34-71: shunt trip version in the same sheet metal housing.
Documents
Specifications from Gamewell-FCI data sheet CS-2261 Rev. A1, Three-Fold Fire Alarm Boxes and Transmitters (2009). Manufacturer specifications are subject to change.
