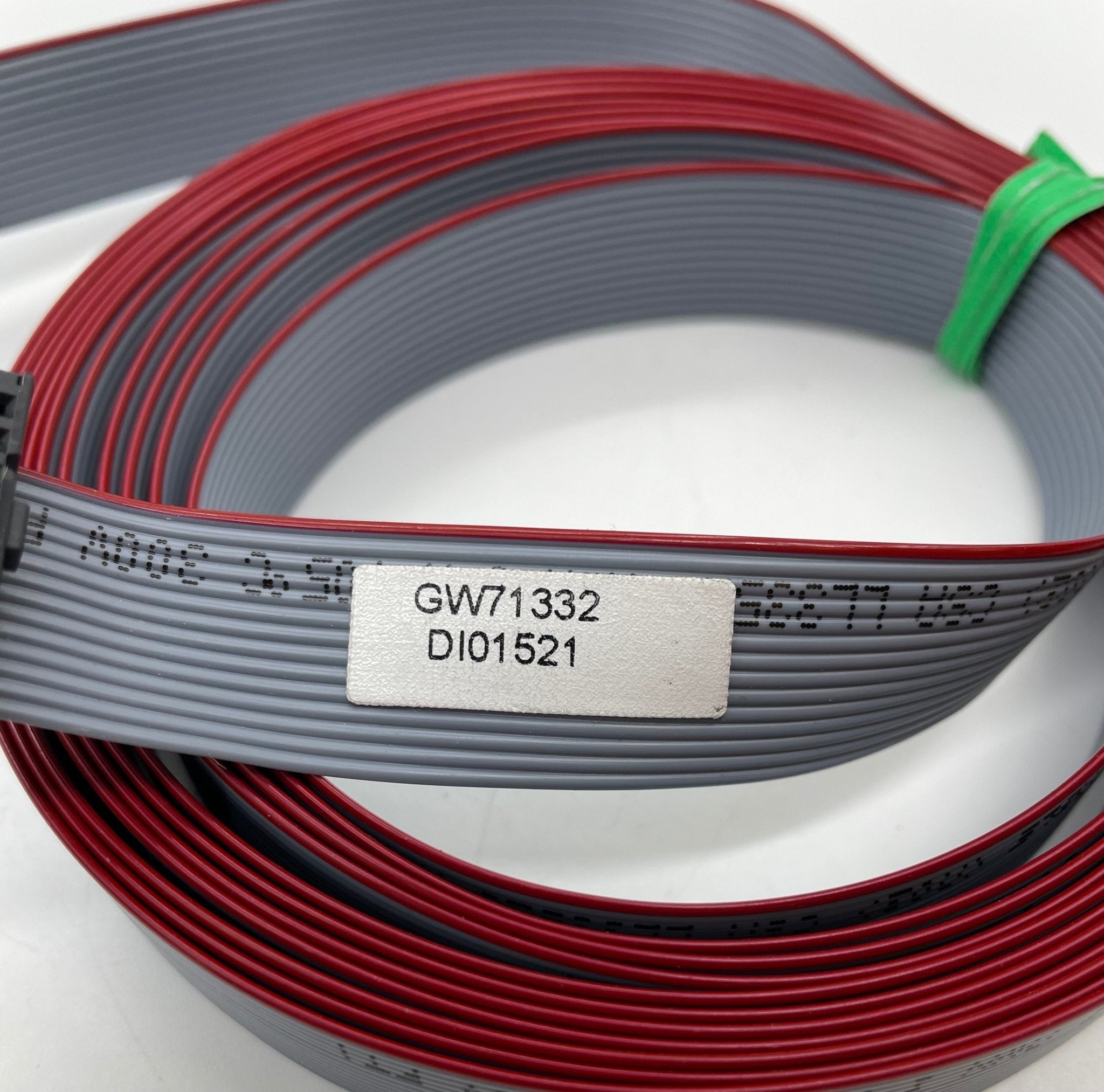

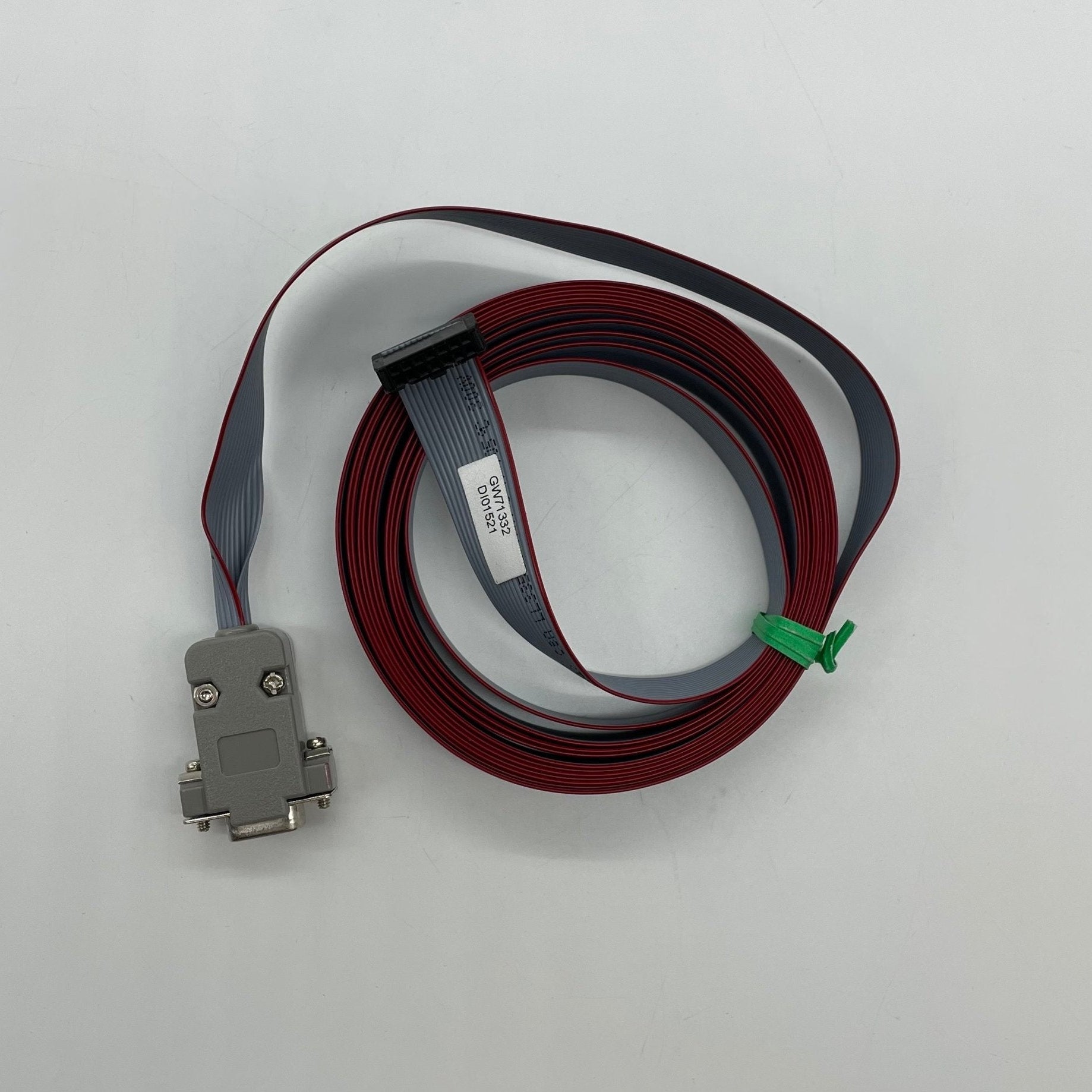

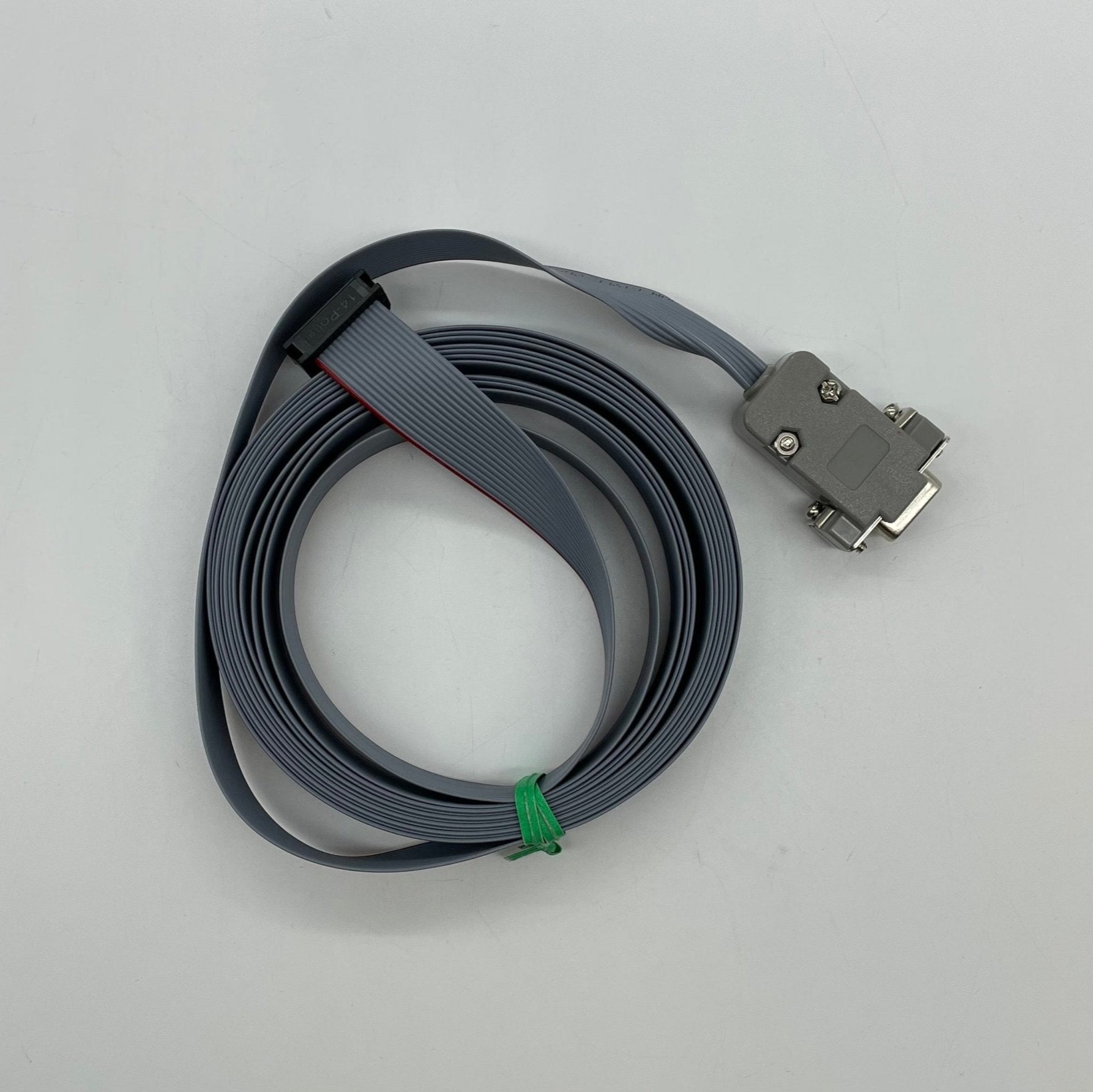

Gamewell-FCI GW71332 is the 71332 14 pin ribbon cable that connects a laptop or computer to port P2 of the CPU module on IdentiFlex fire alarm control panels. Port P2 is the laptop interface connector. Technicians use it for panel programming and service connections, so confirm the port type before ordering.
Specifications
| Gamewell part number |
71332 |
| Cable |
14 pin ribbon |
| Connects |
Computer to CPU module port P2 (laptop interface) |
| Reference drawing |
D-W1142 |
| Panel family |
IdentiFlex: IF 610, IF 630, IF 632 and IF 650 |
Installation notes
- Jumper JP5 is placed between pins 2 and 3 on the CPU module (normally not used)
- Cable 70703 serves a different connector, the isolated RS-232 port of the Bus module
- Cable 70704 serves the Com2 port of a SIM-232 module
