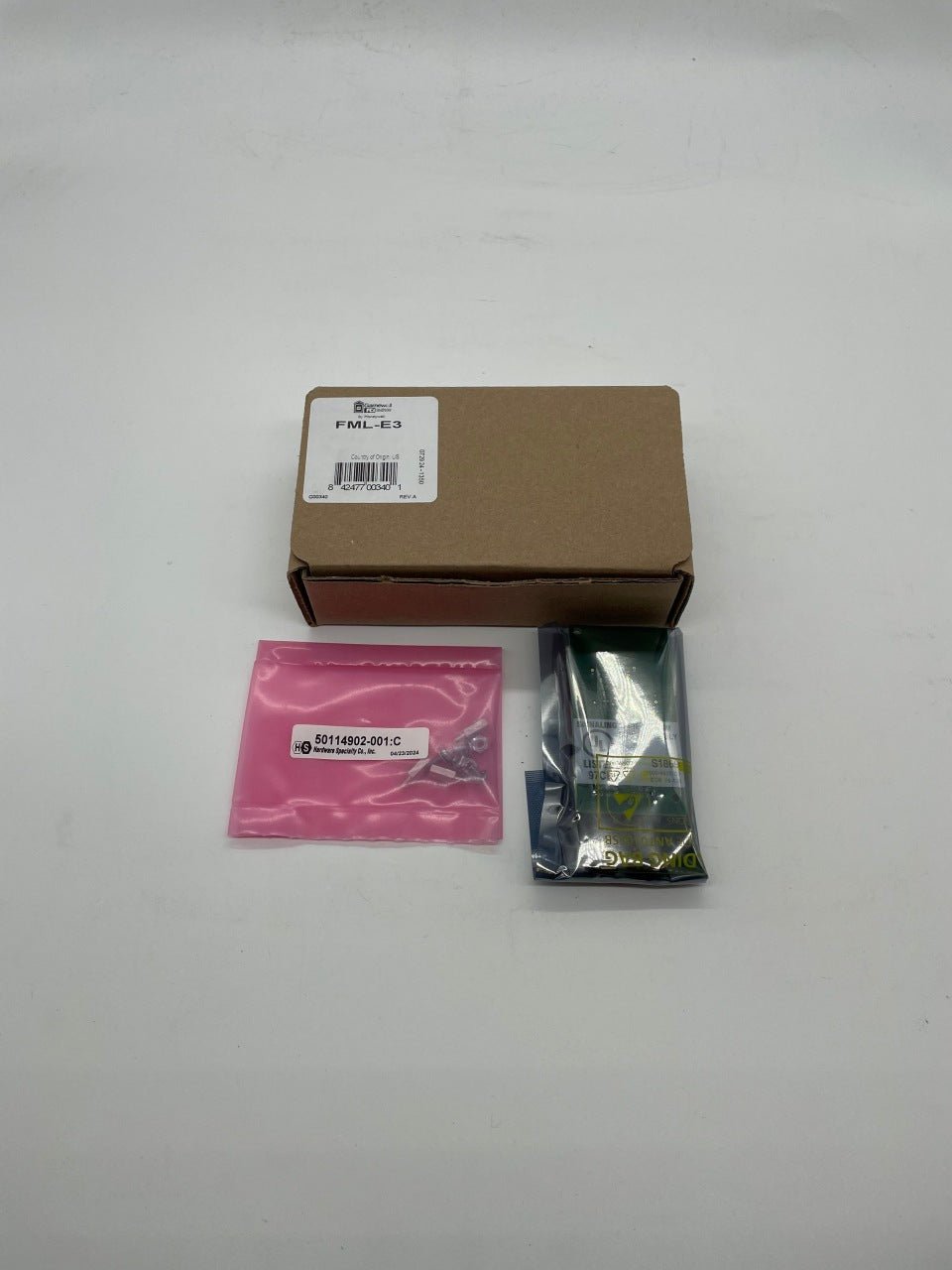

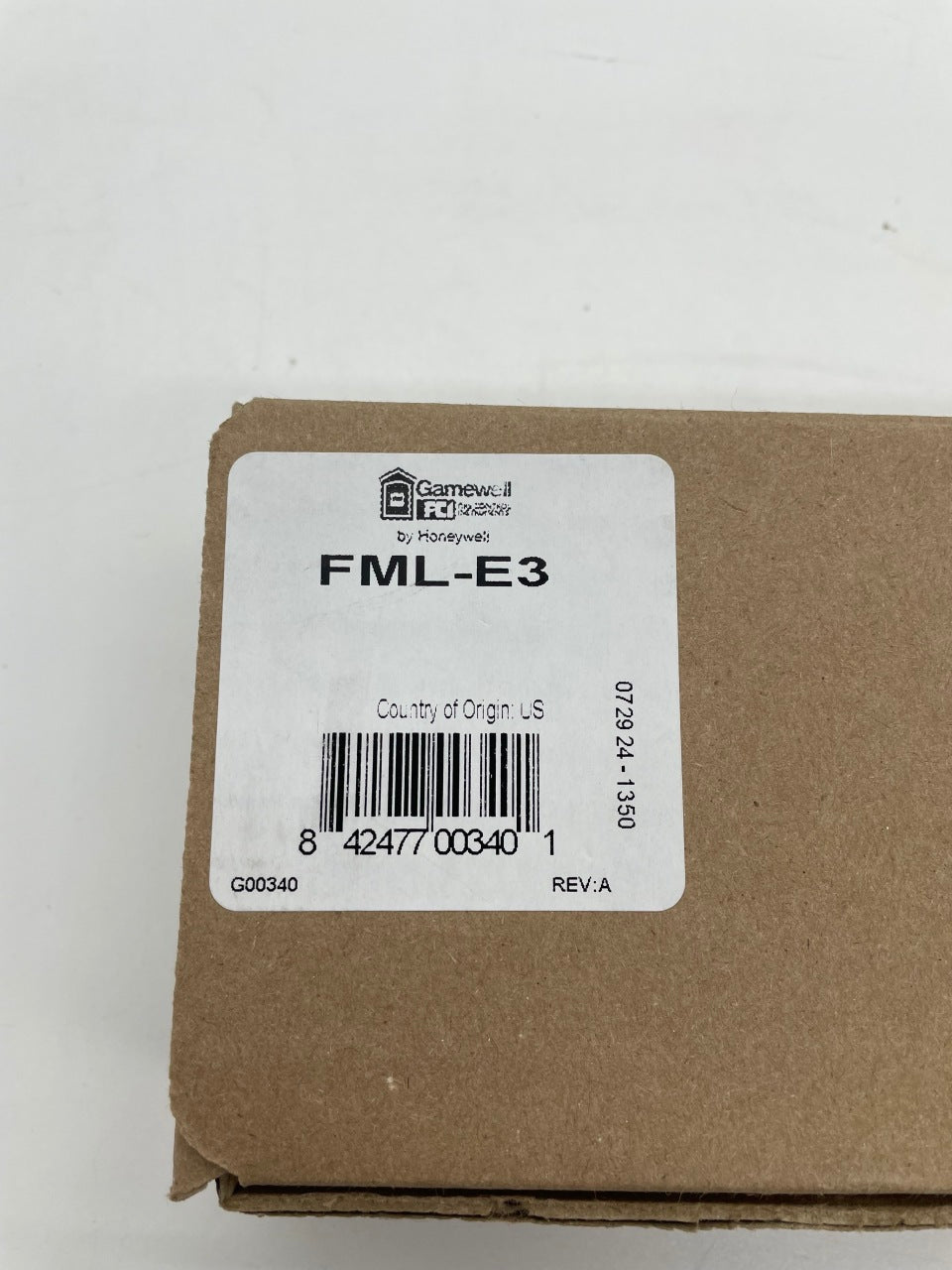

Gamewell-FCI FML-E3 — plug-in multi-mode fiber loop module for fiber-optic networking on the Gamewell-FCI E3 Series ARCNET network.

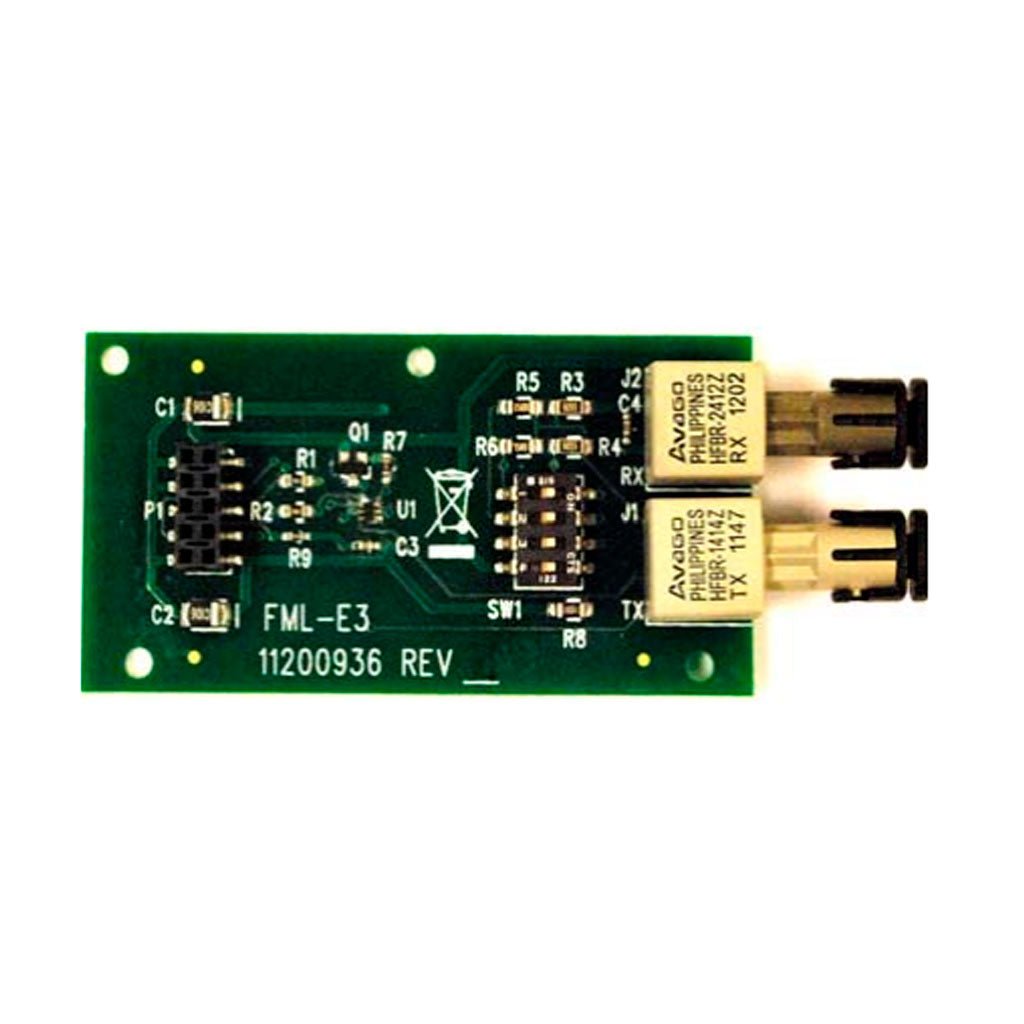

The FML-E3 provides one transmit (TX) or receive (RX) channel over multi-mode fiber between E3 Series nodes. It plugs onto the designated mounting pattern of the RPT-E3-UTP network repeater circuit board and is also used with the INI-VG Series voice gateways. Up to two fiber loop cards can be added to each supporting E3 Series component, and multi-mode and single-mode modules can be combined on the same network card.
Specifications
| Model |
FML-E3 |
| Fiber type |
Multi-mode, 62.5/125 micrometer |
| Connectors |
ST style |
| Maximum attenuation |
8 dB |
| Channel |
Single TX or RX |
| Compatible with |
RPT-E3-UTP network repeater; INI-VGC, INI-VGE, INI-VGX voice gateways |
| Standard |
ANSI/UL 864 9th Edition |
Installation notes
- Up to two fiber loop modules per supporting E3 Series component
- Plug-in card secured to the mounting pattern on the RPT-E3-UTP board
- Refer to installation instructions LS10046-000GF-E
Related models
- FSL-E3: single-mode version with LC connectors, 30 dB maximum attenuation on 9/125 micrometer cable
Documents
FAQ
What is the difference between the FML-E3 and FSL-E3?
The FML-E3 is for multi-mode fiber with ST connectors and 8 dB maximum attenuation on 62.5/125 cable. The FSL-E3 is for single-mode fiber with LC connectors and 30 dB maximum attenuation on 9/125 cable.
Which E3 components accept it?
The RPT-E3-UTP network repeater and the INI-VG Series voice gateways (INI-VGC, INI-VGE and INI-VGX).
How many can be installed per board?
Up to two fiber loop cards per supporting E3 Series component, and single-mode and multi-mode modules can be combined.
