Gamewell-FCI FLPS-7-RB — the ordering number for the FLPS-7 main supply circuit board, the seven ampere power supply of the S3 Series SLP fire alarm panel.
Gamewell-FCI names the sub-assembly FLPS-7 and sells it as FLPS-7-RB, calling it the SLP 120VAC 7A power supply for the replacement or retrofit solutions. It is the main supply of the panel, not an auxiliary or booster: the basic S3 configuration is an SLP main board, an LCD-SLP touchscreen, an SLC loop module and this board.
- Rated 7 amperes at 24 VDC, supervised
- Nominal input 120 VAC, 60 Hz, 2.75 A max; the same table also lists 240 VAC at 1.4 A
- L1 AC hot, L2 neutral, EARTH ground, J1 DC output; JP5 and JP6 factory set to 120 VAC
- 32 to 120 °F, 0 to 93% humidity at 90 °F
- Mounts in the SLP-BB B-Slim or the larger S3BB B-size cabinet
- Required, not optional, for every listed service type including releasing
It is a board and not a boxed supply, so no cabinet, door or batteries come with it: both the SLP-RETROFIT kit for legacy 7100 B-Slim and IF602 panels and the S3BB-RB cabinet list it among the parts they require.
Documents
FAQ
What is the FLPS-7-RB?
Gamewell-FCI lists it as the SLP 120 VAC 7 A power supply, for use with the S3 Series replacement or retrofit solutions.

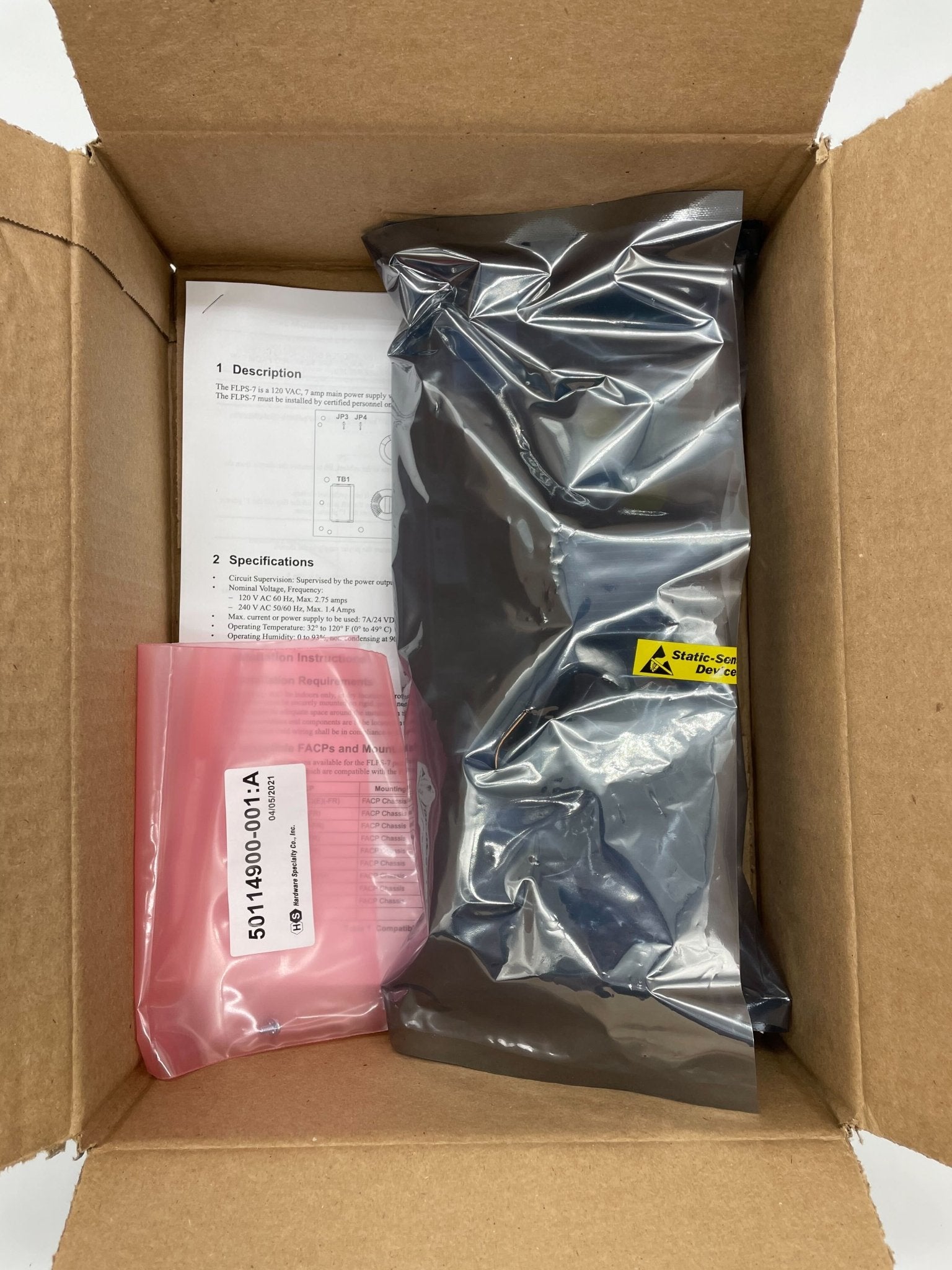

Does it come with a cabinet or batteries?
No. It is a power supply board only.
Which kits need it?
The SLP-RETROFIT kit for 7100 B-Slim and IF602 panels and the S3BB-RB cabinet both list the FLPS-7-RB among their required parts.
