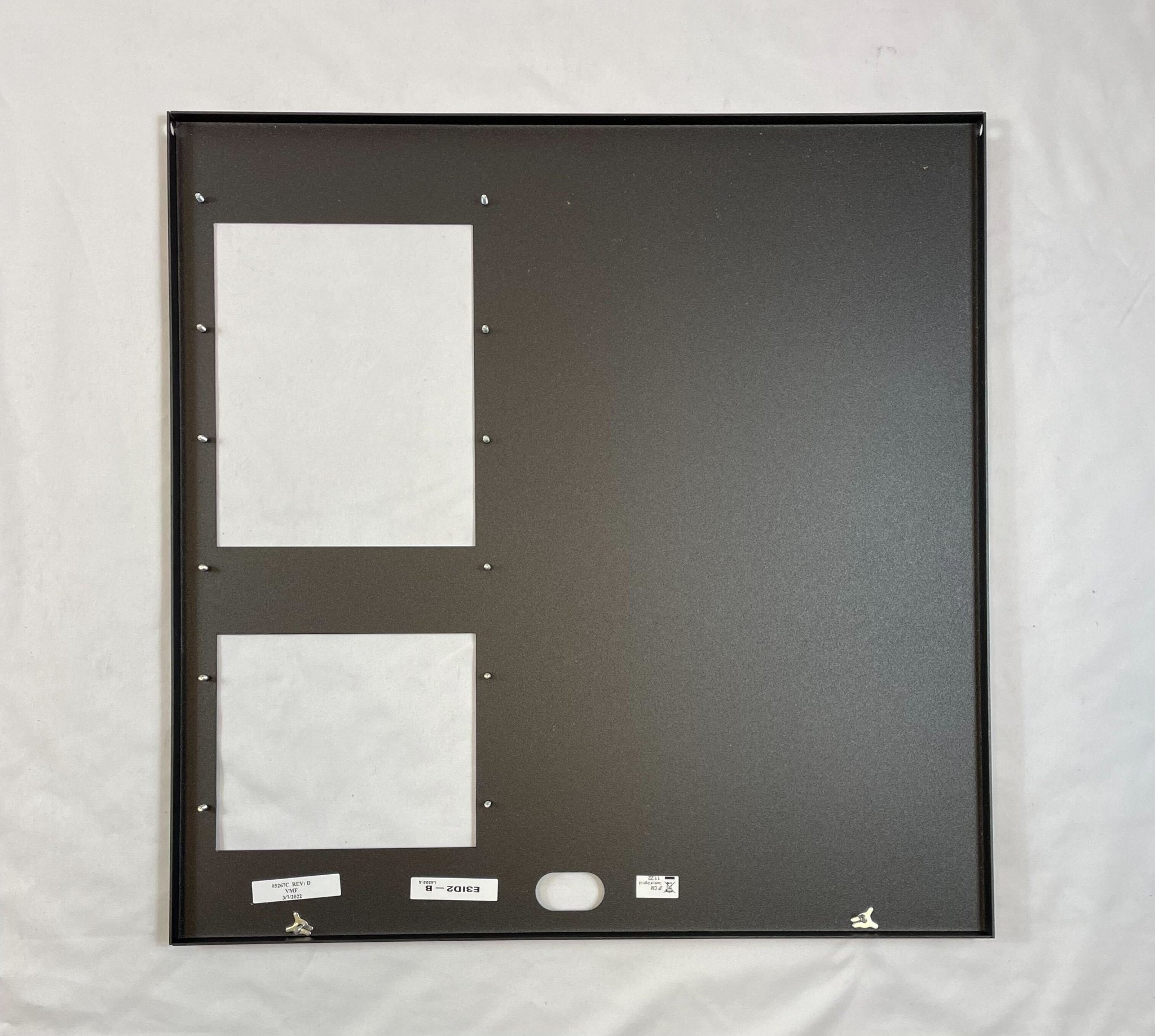

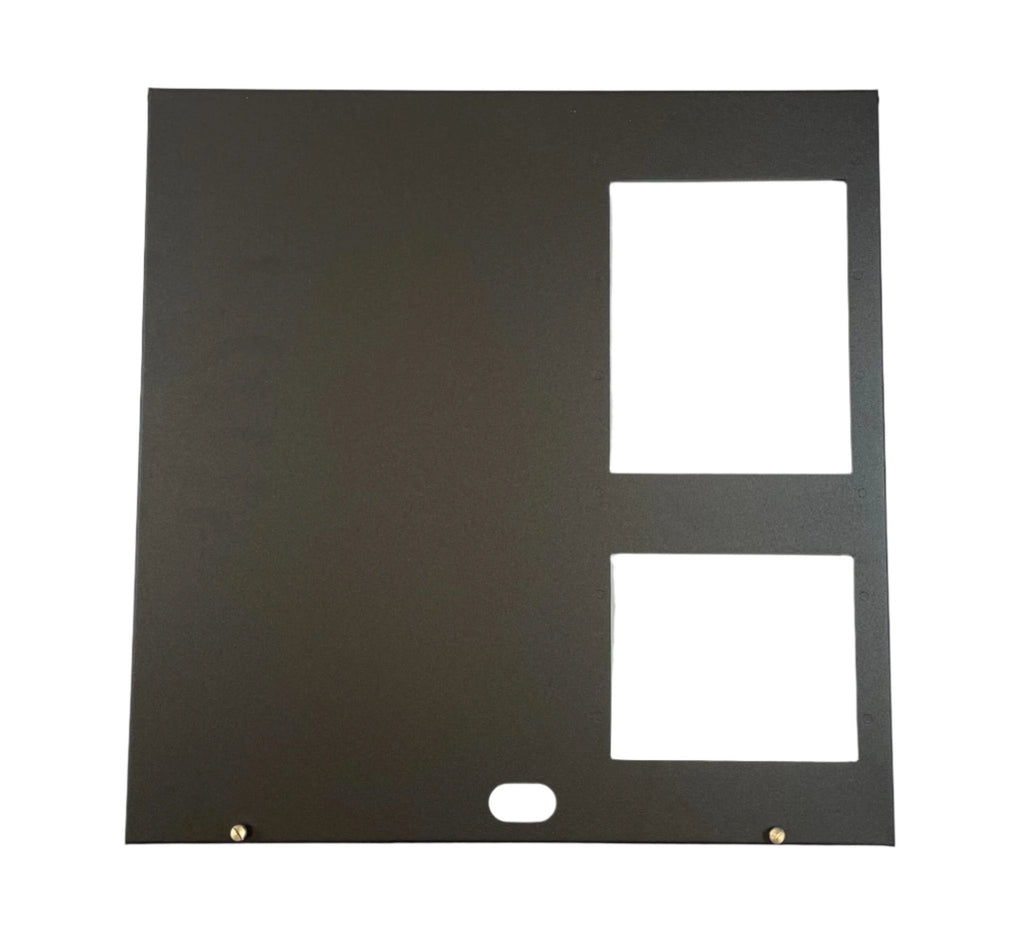

Gamewell-FCI E3ID2-B — two-slot inner door panel for the E3 Series "B" size cabinet.

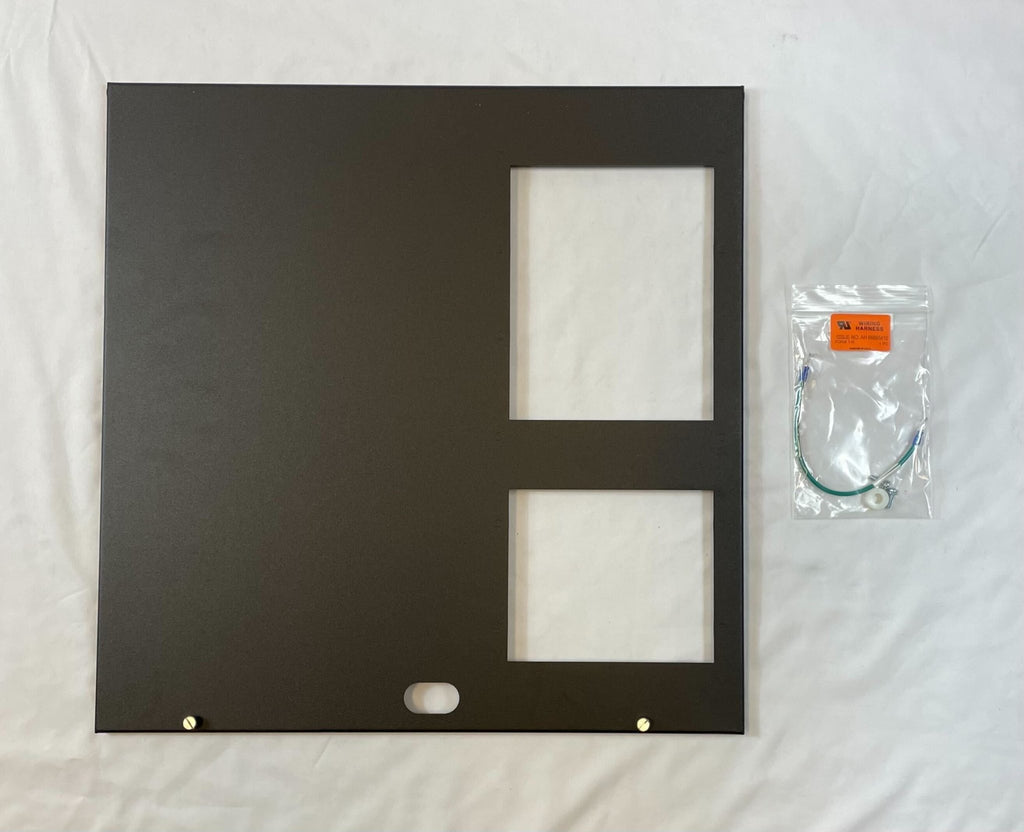

Gamewell-FCI catalogues E3 Series enclosures by cabinet letter, and the suffix on an inner door is that letter, not a colour or a revision. An E3 cabinet is a backbox plus an outer locking door with a Lexan window; the inner door is the panel behind it that carries the operator-facing modules, and it is removable and fitted with a bonding strap so grounding continuity is kept when it is taken off. ID2 means two module slots on one door panel — it is a single door, not a pair.
- Fits the E3 Series Cabinet "B" backbox, E3BB-BB (black) or E3BB-RB (red)
- Cabinet B: 19-3/8"W × 19-3/8"H × 4-1/2"D (49 × 49 × 11 cm)
- Holds one LCD-E3 display plus one ASM-16/ANU-48, or one NGA plus one ASM-16/ANU-48
- 16-gauge steel cabinet construction, IBC seismic certified
- UL 864 10th Edition and UL 2572 2nd Edition for mass notification
Match the cabinet letter exactly: E3ID2-A is the AA cabinet, E3ID2-C and E3ID2-D are the two-bay command center doors, and the E3ID3 doors carry three module slots instead of two.
