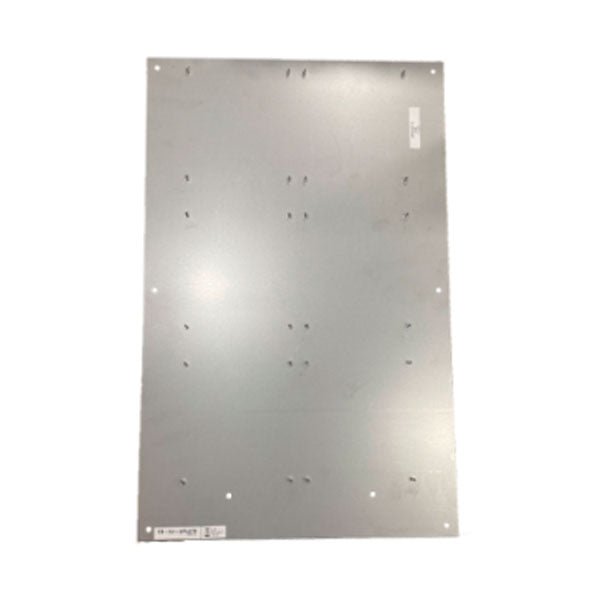

Gamewell-FCI E3-ILI-CPLATE is the intelligent loop module mounting plate for the C-size E3 Series cabinet backbox. It provides the mounting pattern for the power supply, loop interface boards and network option boards inside a C-size backbox.
Specifications
| Item |
Intelligent loop module mounting plate |
| Cabinet size |
C |
| Cabinet dimensions |
19 3/8 in. W x 30 in. H x 4 1/2 in. D (49 x 76 x 11 cm) |
Plate capacity
- PM-9 or PM-9G power supply: 1
- ILI-MB-E3 or ILI95-MB-E3 loop interface: 1
- Additional ILI-MB-E3, ILI95-MB-E3, ILI-S-E3, ILI95-S-E3 or ANX: up to 2
- DACT-E3 digital communicator: 1; RPT-E3 network repeater: 1
- Optional FPT-GATE-3 extender plate: 1
E3 Series cabinet features
- 16-gauge steel backbox with mounting patterns for sub-assembly plates
- Backbox knockouts positioned for conduit access
- Removable outer and inner doors with an inner door bonding strap
- Keylock with quarter-turn latch; furnished ground studs on backbox and door
- Cabinets are UL 864 and UL 2572 certified and IBC seismic certified
