Gamewell-FCI ASD-PL3R-IV — a Velociti® Series 3 plug-in intelligent photoelectric smoke sensor in ivory, with remote test capability for duct applications.

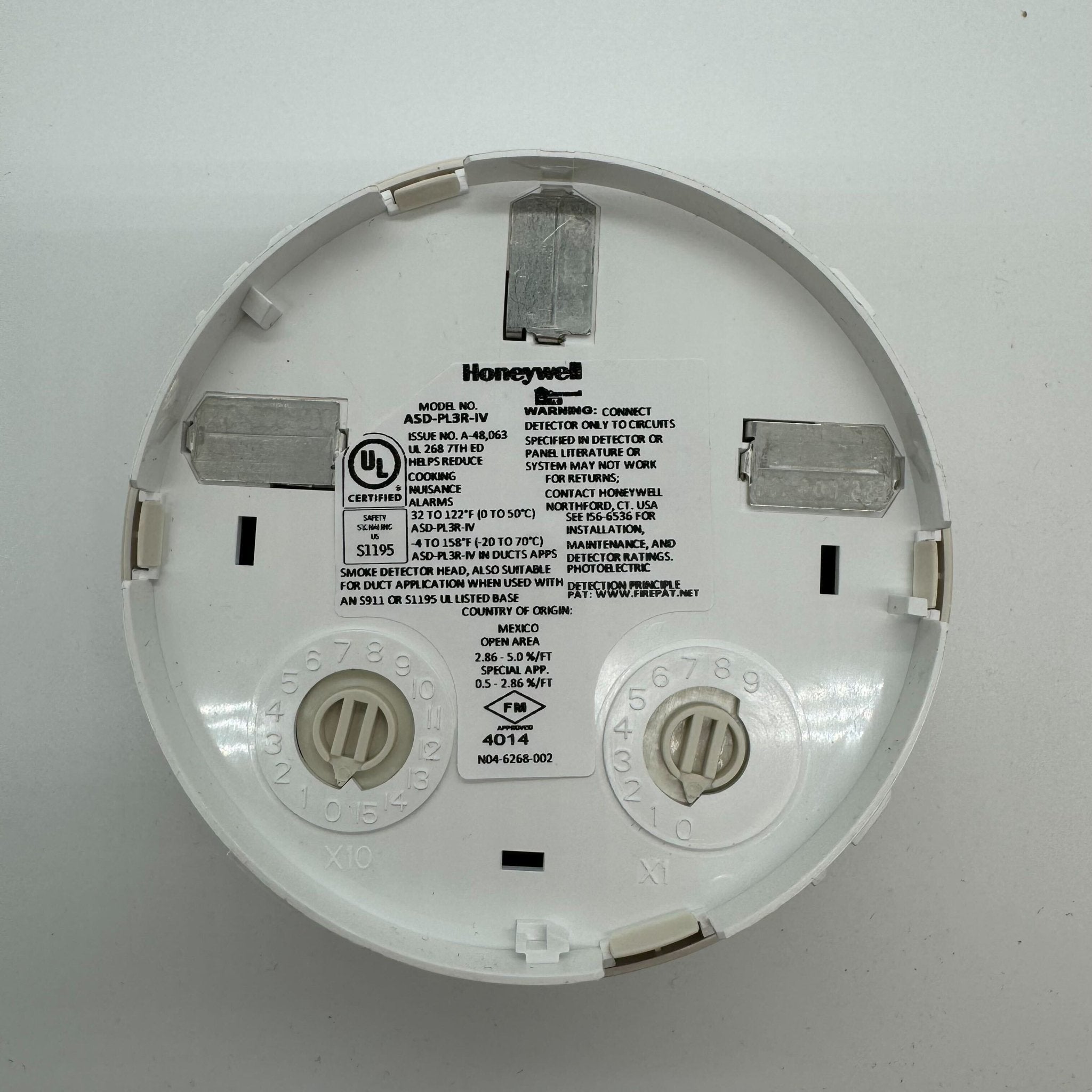

The ASD-PL3R-IV combines a photoelectronic sensing chamber with addressable-analog communications, transmitting an analog representation of smoke density over the communication line to the control panel. Rotary dial switches set the sensor address, and devices are point addressable up to 159 addresses. Two panel-controlled LEDs indicate sensor status and can be set on, off or blinking in red, green or amber; an output is provided for an optional RA100Z remote LED annunciator, which may be synchronized to the LED operation or controlled independently. The sensor is listed for use in ducts and inside DNR(W) duct smoke detector housings, where it can be tested remotely with the RTS151 or RTS151KEY test accessories — eliminating the need for a test coil. The mounting base is supplied separately.
Specifications
| Type |
Velociti® Series 3 intelligent photoelectric smoke sensor, remote test capable, ivory |
| Protocol |
Velociti® or CLIP (Classic Loop Interface Protocol) |
| Addressing |
Rotary address switches; point addressable up to 159 addresses |
| Operating voltage range |
15 to 32 VDC |
| Operating current @ 24 VDC |
200 uA (one communication every 5 seconds, green LED blink on communication) |
| Maximum alarm current |
2 mA @ 24 VDC (one communication every 5 seconds, red LED solid on) |
| Maximum current |
4.5 mA @ 24 VDC (one communication every 5 seconds, amber LED solid on) |
| Operating temperature range |
32°F to 122°F (0°C to 50°C); -4°F to 158°F (-20°C to 70°C) in duct applications |
| Operating humidity range |
10% to 93% relative humidity, non-condensing |
| Air velocity |
0 to 4000 ft./min. (0 to 1219.2 m/min.) |
| Height |
2.0 in. (51 mm) installed in B300-6 base |
| Diameter |
6.1 in. (155 mm) in B300-6 base; 4.1 in. (104 mm) in B501 base |
| Weight |
5.2 oz. (147 g) |
| Isolator load rating |
0.0063 |
| Duct listing |
UL 268A listed for duct applications |
Installation notes
-

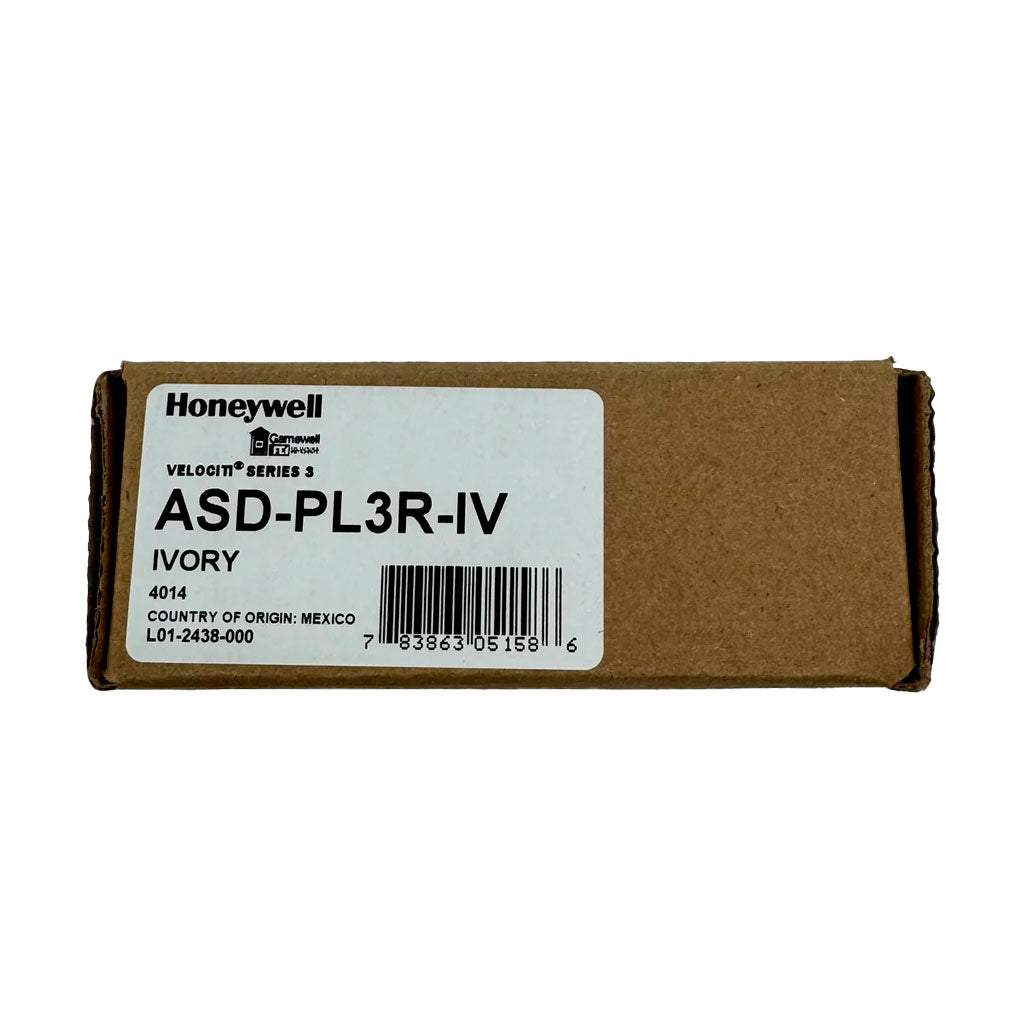

Ivory model is the dual-protocol one: ASD-PL3R-IV supports either Velociti® or CLIP mode, while the bright white ASD-PL3R supports Velociti® protocol only. Choose the -IV part when a legacy CLIP loop is involved.
-
Base sold separately: the sensor uses the base for wiring. Wire the base first, set the address, then push the sensor in while turning clockwise. Remove power from the communication line before installing sensors.
-
Do not loop wire under terminals 1 or 2: break the wire run so the connections are supervised.
-
Duct temperature range is wider than the open-area range: 32°F to 122°F in normal use, but -4°F to 158°F when installed in duct applications.
-
Remote test: use the RTS151 or RTS151KEY with a DNR(W) housing. Maximum test response time may be up to two communications from the panel.
-

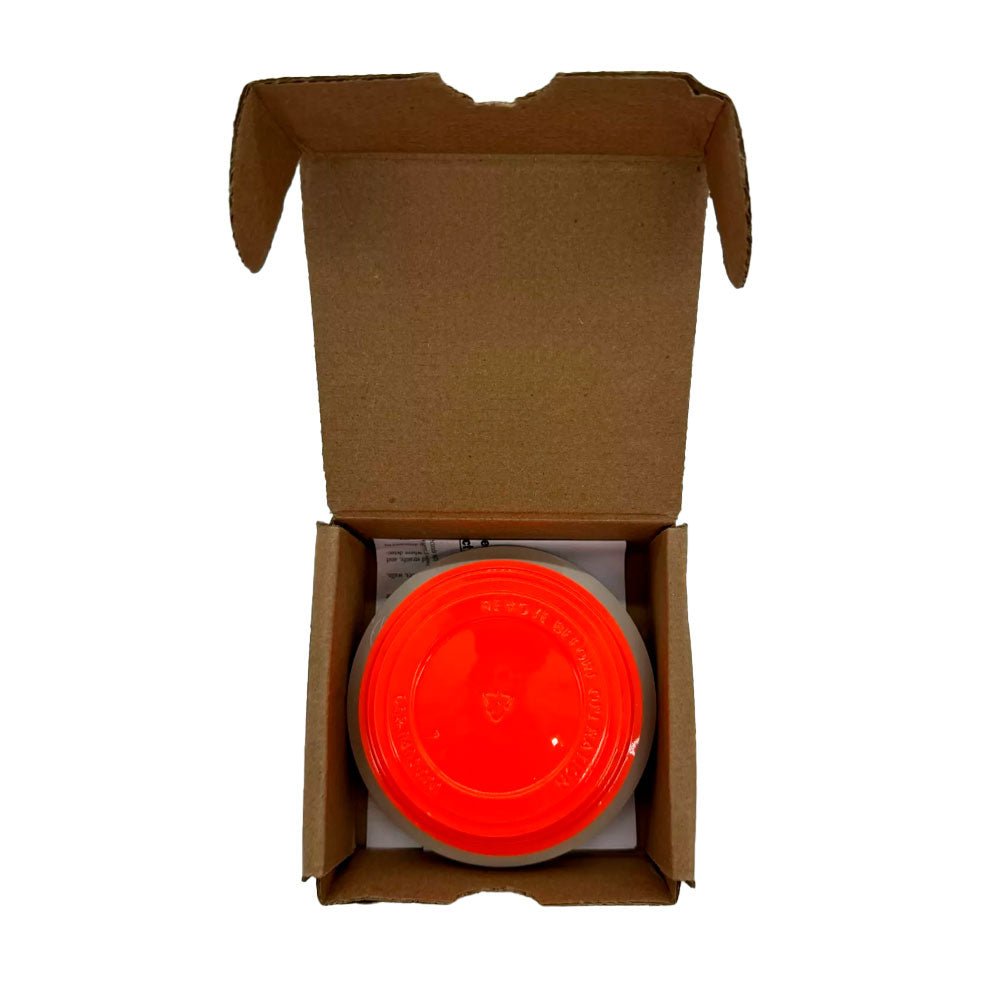

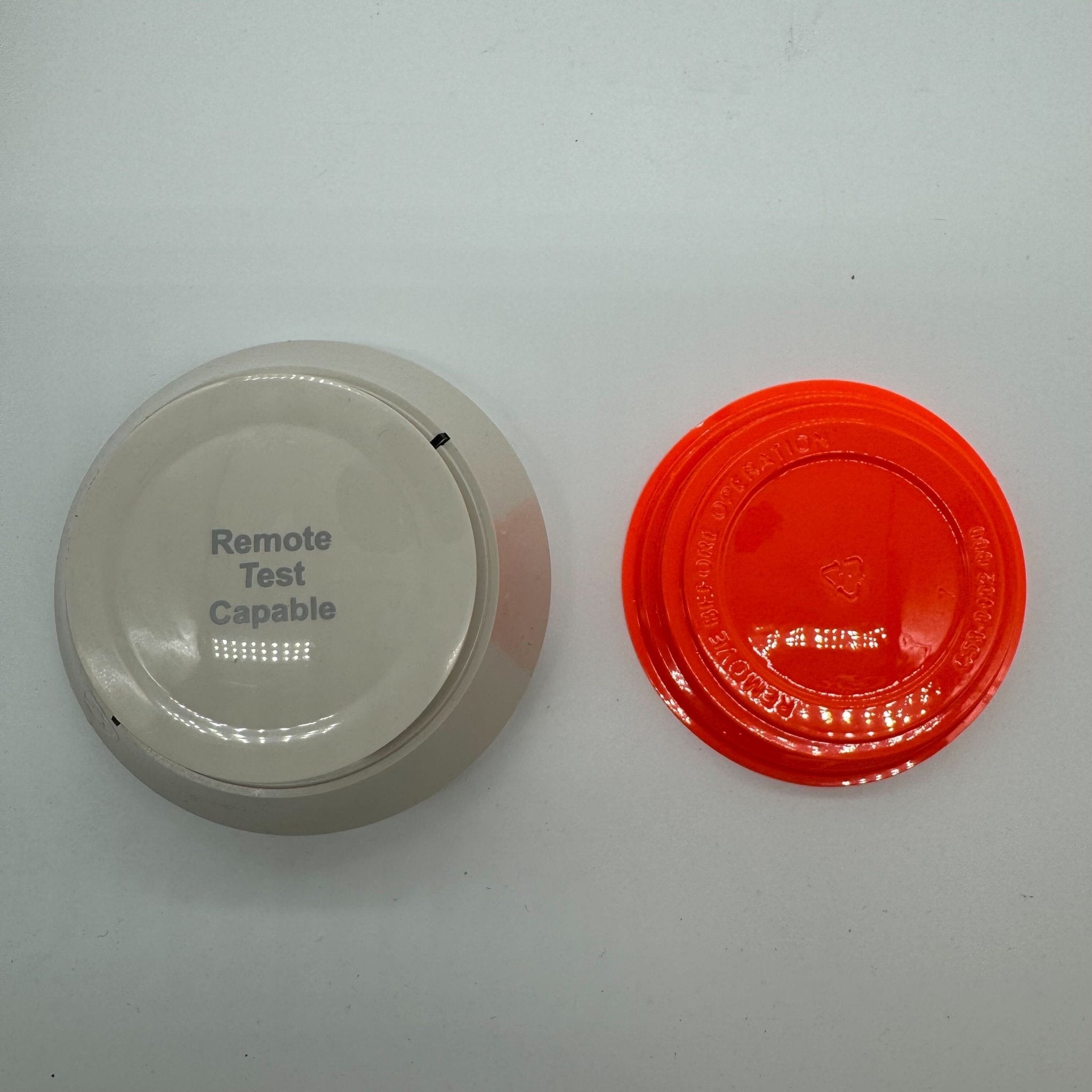

Dust covers: covers give only limited protection during shipping and must be removed before the sensor can sense smoke. Remove sensors prior to heavy remodeling or construction.
-
Tamper resistance: the ASD-PL3R-IV can be set so it cannot be removed from the base without a tool — see the base manual.
-
Spacing: space per NFPA 72; in low air flow applications with smooth ceilings, 30 ft (9.1 m) apart.
-
Approved accessories only: only System Sensor approved accessories may be used with this sensor.
Related models
-
ASD-PL3R — same sensor in bright white; Velociti® protocol only, no CLIP support.
-
ASD-PL3 / ASD-PL3-IV — photoelectric sensor without the remote test capability for duct applications.
-
ATD-L3R-IV — ivory thermal detector (135°F fixed and rate-of-rise); heat only, no smoke sensing, and a different operating temperature range.
-
RA100Z — remote LED annunciator that connects to the sensor remote output.
-
M02-04-01 / M02-09-00 — test magnets for the functional magnet test.
Specifications taken from the Gamewell-FCI installation and maintenance instructions “ASD-PL3R and ASD-PL3R-IV Intelligent Photoelectric Smoke Sensor with Remote Test Capability in Duct Applications,” document I56-6536-001 (09/23/2019). Manufacturer specifications are subject to change without notice.
