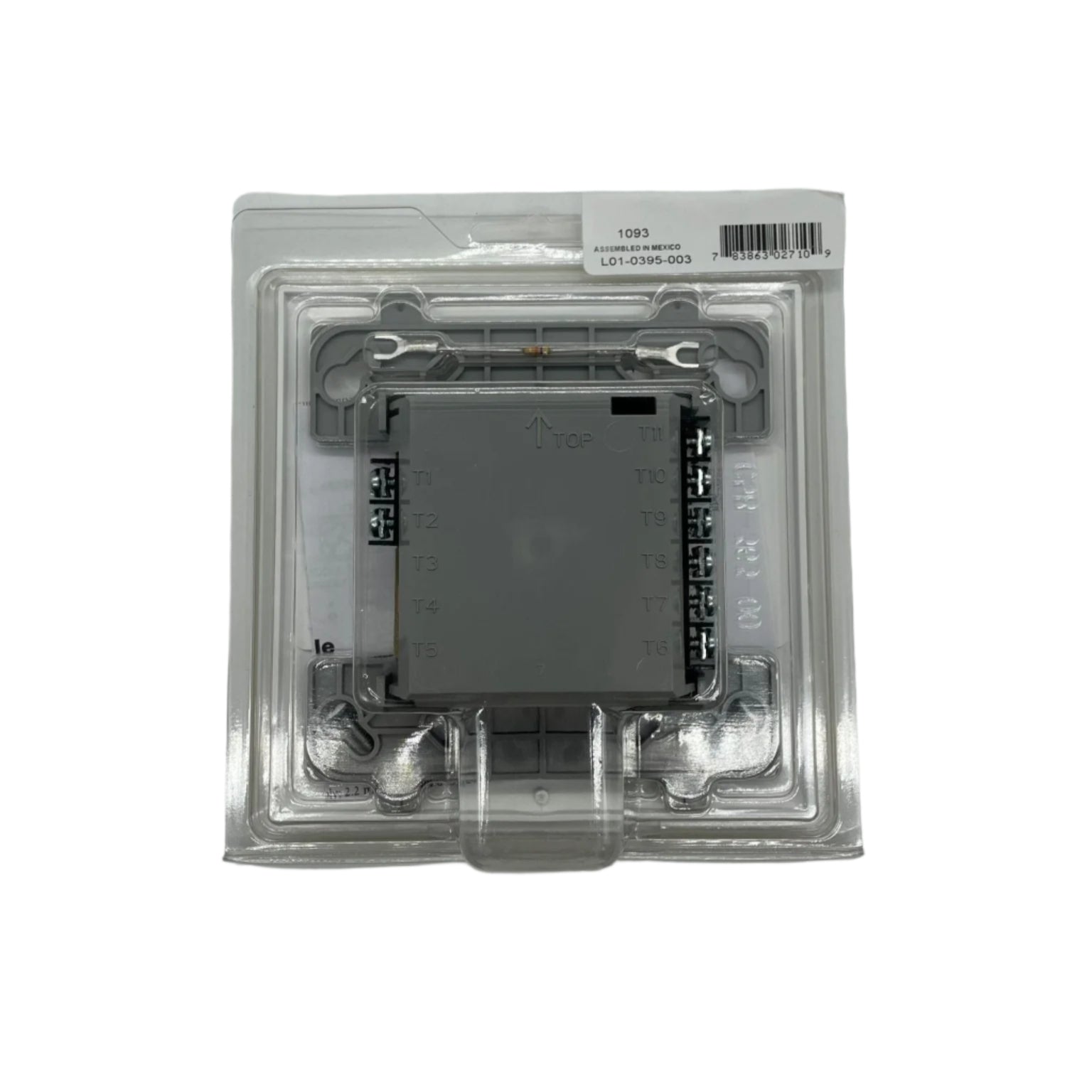

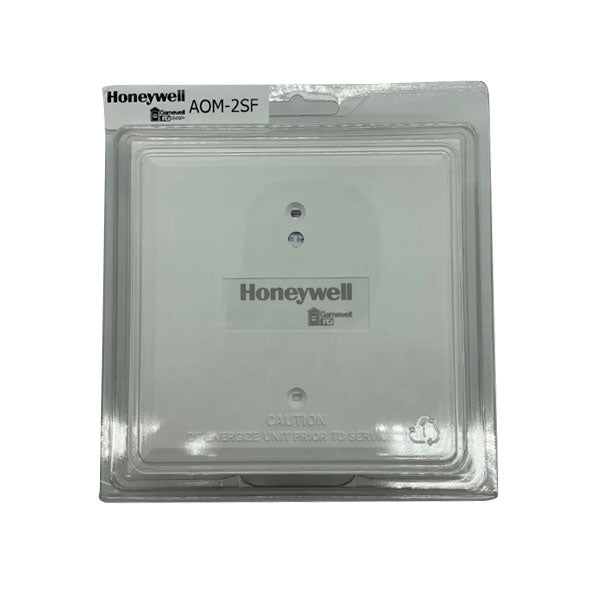

Gamewell-FCI AOM-2SF — a Velociti® Series addressable output relay supervised control module that lets a Gamewell-FCI analog addressable fire alarm control panel switch an external power supply, such as a DC supply or audio amplifier up to 80 VRMS, to notification appliances.
The notification appliance circuit can be wired Class A (Style Z) or Class B (Style Y). The module supervises the wiring to the connected loads and reports their status to the panel as NORMAL, OPEN or SHORT CIRCUIT, and contains a panel-controlled LED. The Velociti® protocol polls devices in groups: when one device in a group changes status the panel’s microprocessor stops the group poll and concentrates on that device, giving response speed up to five times greater than earlier designs. The AOM-2SF installs in the signaling line circuit of any Gamewell-FCI analog addressable panel, whose SLCs accommodate up to 159 modules per circuit, and mounts in a 4 in. (10.16 cm) square junction box 2 1/8 in. (5.5 cm) deep.
Specifications
| Type |
Velociti® Series addressable output relay supervised control module |
| Function |
Switches external power (DC supply or audio amplifier up to 80 VRMS) to notification appliances |
| NAC wiring |
Class A (Style Z) or Class B (Style Y), supervised |
| Supervision reporting |
NORMAL, OPEN or SHORT CIRCUIT |
| SLC capacity |
Up to 159 modules per signaling line circuit |
| Supervisory current |
0.00375 amps |
| Alarm current |
0.0065 amps |
| Operating temperature |
32° to 120°F (0° to 49°C) |
| Relative humidity |
10 to 93% (non-condensing) |
| Dimensions |
4 1/2 in. H x 4 in. W x 1 1/4 in. D (11.4 x 10.2 x 3.2 cm) |
| Mounting |
4 in. (10.16 cm) square junction box, 2 1/8 in. (5.5 cm) deep |
| Relay contacts — resistive |
3 A @ 30 VDC non-coded; 2 A @ 30 VDC coded; 0.9 A @ 110 VDC non-coded; 0.5 A @ 125 VAC non-coded |
| Relay contacts — inductive |
0.5 A @ 30 VDC (L/R=5 ms) coded; 1 A @ 30 VDC (L/R=2 ms) coded; 0.5 A @ 125 VAC (PF=.35) non-coded; 0.7 A @ 75 VAC non-coded |
| Standards |
UL 864 9th Edition; UL 2572 for Mass Notification |
| UL |
S1949 |
| FM |
3023594 (FM listed as suitable for releasing device service) |
| MEA FDNY |
227-03-E Vol. IV |
| CSFM |
7300-1703:0102 |
Installation notes
-
It supervises the NAC wiring: unlike a plain relay module, the AOM-2SF monitors the circuit to the connected appliances and reports open and short conditions back to the panel. Install end-of-line supervision per the panel manual.
-
80 VRMS audio limit: the module accommodates audio amplifiers up to 80 VRMS — verify the amplifier output voltage before switching a speaker circuit through it.
-
LED behavior depends on the panel: the bi-color LED flashes green when the module is addressed and lights steady red on activation, but only the red LED is operative in panels that do not run in Velociti® mode, and the bi-color LED functionality is not available on the GWF-7075 panel.
-
Releasing service: the module is FM listed as suitable for releasing device service.
-
Box depth matters: a 4 in. square box of 2 1/8 in. depth is required — a shallow box will not accept the module.
Related models
-
AOM-2RF — the addressable output relay control module. It provides dry relay contacts rather than a supervised notification appliance circuit; choose the AOM-2SF when NAC supervision is required.
-
AMM-2F / AMM-4F / AMM-2IF / AMM-4SF — addressable monitor modules (inputs) rather than control outputs.
-
AOM-TELF — addressable audio evacuation module.
Specifications taken from the Gamewell-FCI data sheet “Velociti® Series AOM-2SF Addressable Output Relay Supervised Control Module,” document 9020-0627 rev. I (08/18). Manufacturer specifications are subject to change without notice.
