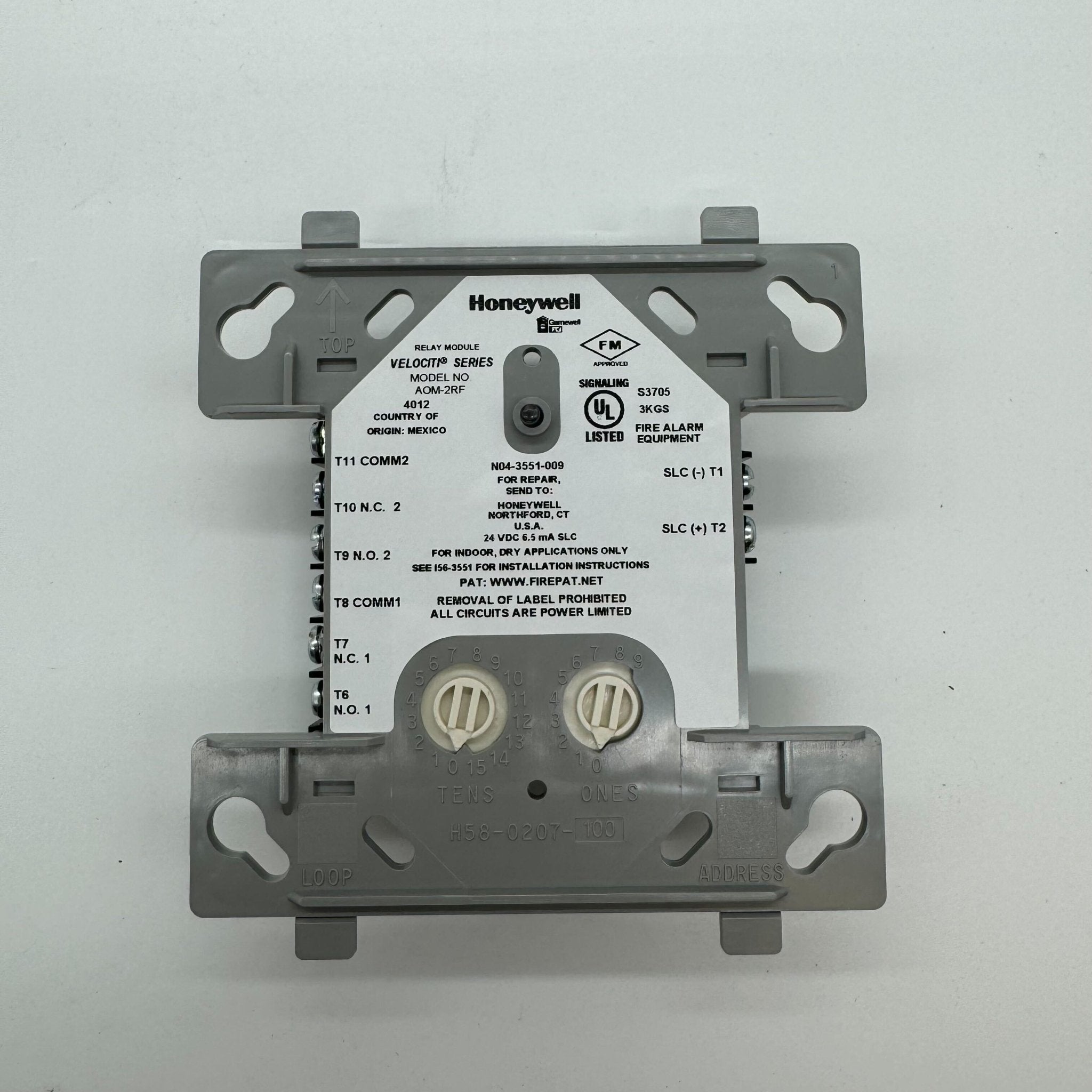

Gamewell-FCI AOM-2RF-BP is a bulk pack of ten AOM-2RF Velociti Series addressable output relay control modules. Each module lets a Gamewell-FCI analog addressable fire alarm control panel switch two isolated Form C relay contacts by code command.
The modules use the Velociti communication protocol, which polls SLC devices in groups and responds up to five times faster than earlier designs. A bi-color LED flashes green when the module is addressed and lights steady red when it is activated.
Specifications
| Pack quantity |
10 x AOM-2RF |
| Contacts |
Two isolated Form C, transfer simultaneously |
| Contact rating |
3A at 30 VDC resistive; 0.5A at 125 VAC resistive |
| Addressing |
Rotary decimal switches, 01–159 |
| Supervisory current |
0.375 mA |
| Alarm current |
6.5 mA |
| Operating temperature |
32 to 120 °F (0 to 49 °C) |
| Humidity |
10 to 93% non-condensing |
| Dimensions |
4 1/2 in. H x 4 in. W x 1 1/4 in. |
| Certifications |
UL 864 9th Edition (UL S1913), FM 3023594, CSFM 7300-1703:0102, FDNY COA-219-02-E |
Installation notes
- Mounts in a 4 in. square junction box, 2 1/8 in. deep.
- Relay contact circuits are not supervised by the module.
- Only the red LED operates on panels that do not run in Velociti mode; the bi-color LED is not available on the GWF-7075.
Related models
-
AOM-2RF: the same relay module sold individually
-
AOM-2SF and AOM-TELF: other Gamewell-FCI addressable output modules
Documents
FAQ

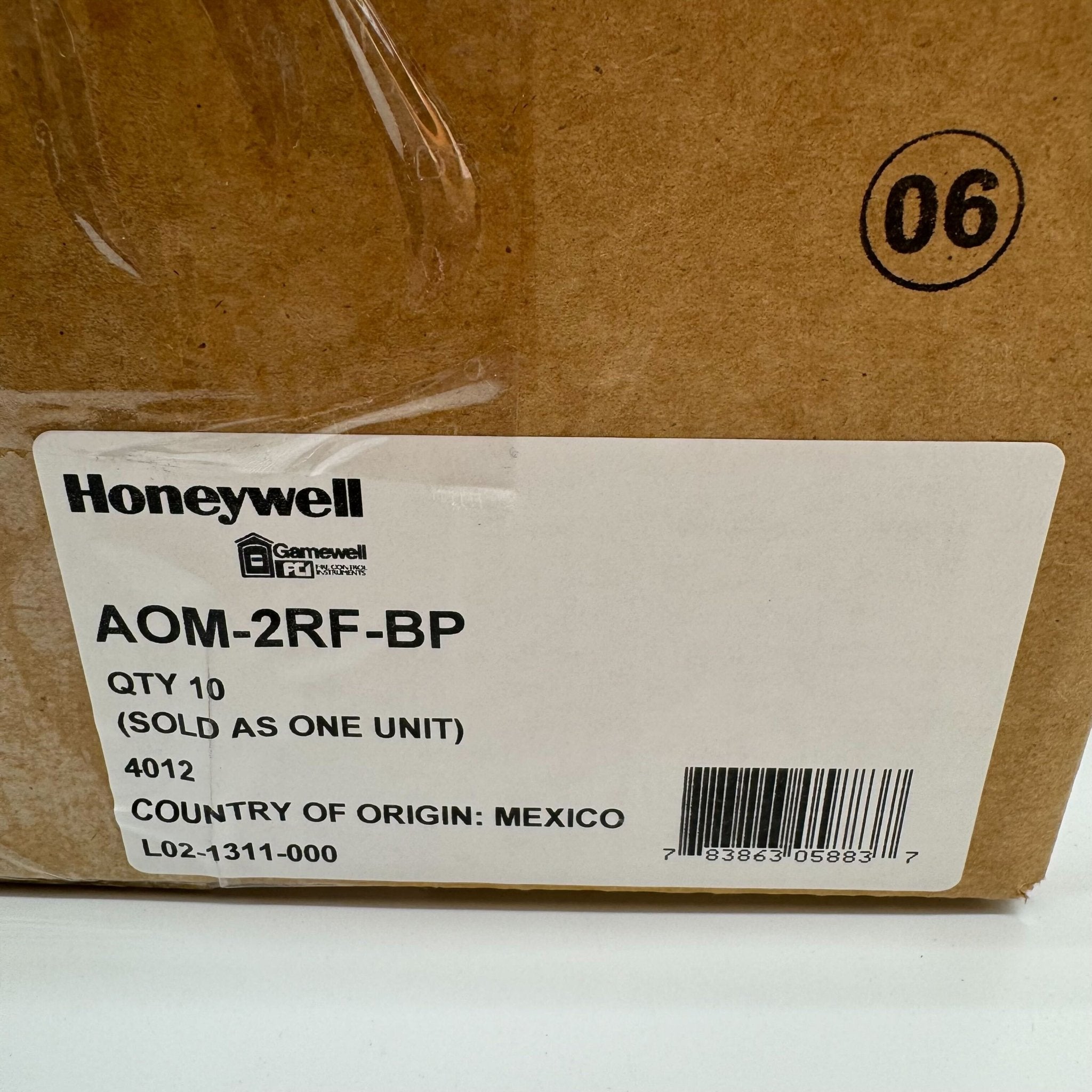

How many modules are in the AOM-2RF-BP?

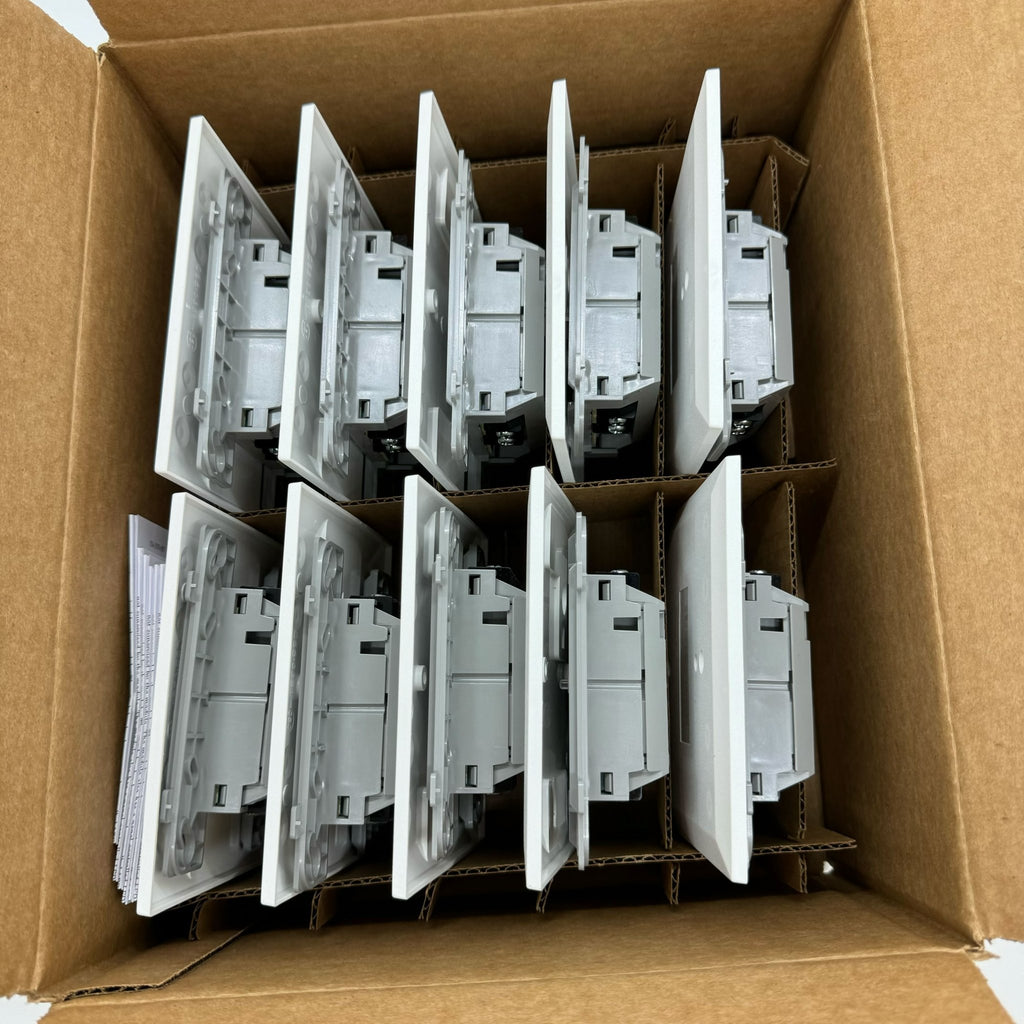

The bulk pack contains ten AOM-2RF addressable relay control modules and is sold as one unit.
Which panels does the AOM-2RF work with?
It installs on the signaling line circuit of any Gamewell-FCI analog addressable fire alarm control panel, and uses the Velociti protocol for faster SLC communication.
What are the relay contact ratings?
Two isolated Form C contacts transfer together, rated up to 3A at 30 VDC resistive (non-coded) and 0.5A at 125 VAC resistive. Connections to the contacts are not supervised by the module.
What box does it mount in?
A 4 in. square junction box at least 2 1/8 in. deep.
