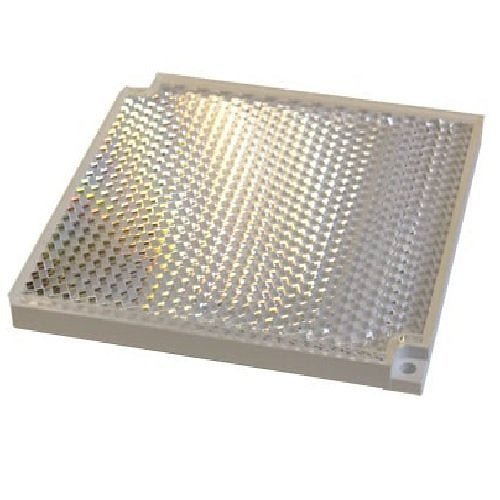

23901-01 is the replacement reflector for the EC-50R and EC-100R reflective beam smoke detectors. These detectors house the infrared transmitter and receiver in one unit; the reflector (prism) is mounted directly opposite the detector with a clear line of sight and returns the beam to the receiver, where smoke in the path is measured as obscuration.
Specifications
| Part number |
23901-01 |
| Description |
Replacement reflector for EC-50R/-100R |
| Reflector size (single) |
4 x 4 in. (102 x 102 mm), 0.34 in. (10 mm) deep |
| Ship weight |
1.0 lb (0.45 kg) |
Compatibility and installation notes
- EC-50R: one reflector, detector mounted 15 to 160 ft (4.6 to 48.8 m) from it. The EC-50R ships with one reflector.
- EC-100R: a group of four reflectors, detector mounted 160 to 330 ft (48.8 to 100.6 m) away. The EC-100R ships with four reflectors.
- Mount reflectors on a secure surface directly opposite the detector, not on glass or other reflective surfaces.
- Keep all objects at least 19 in. (483 mm) from the center of the beam along its whole length, and keep doors and moving equipment out of the beam path.
- Loss of the prism or sudden misalignment is one of the listed causes of a trouble signal.
Related models
- EC-50R reflective beam smoke detector (15-160 ft)
- EC-100R reflective beam smoke detector (160-330 ft)
- EC-LLT ground level test station
Specifications from Edwards data sheet 85001-0560 Issue 4 (06-21-10), EC-50R/-100R Reflective Beam Smoke Detector. Manufacturer specifications are subject to change.
