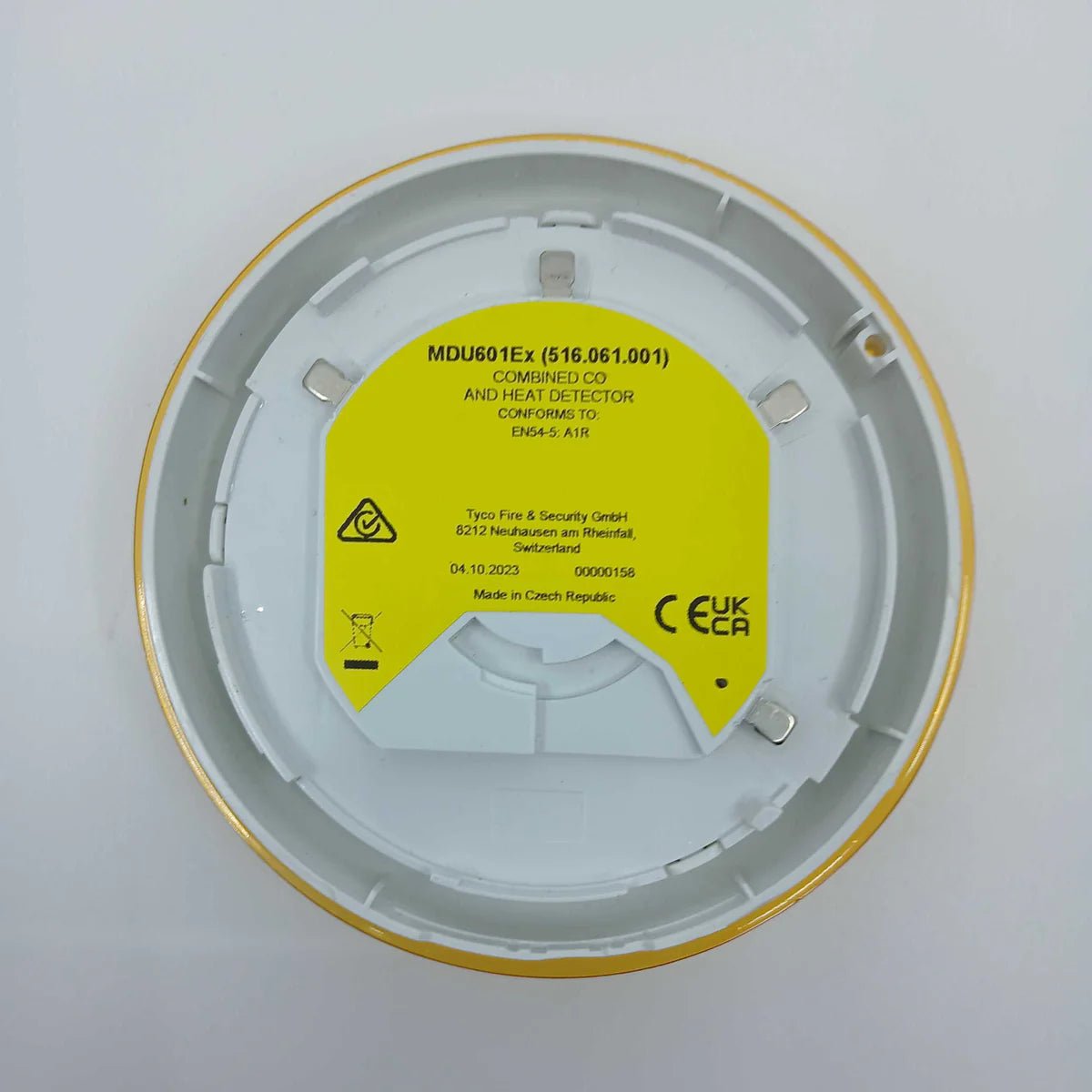

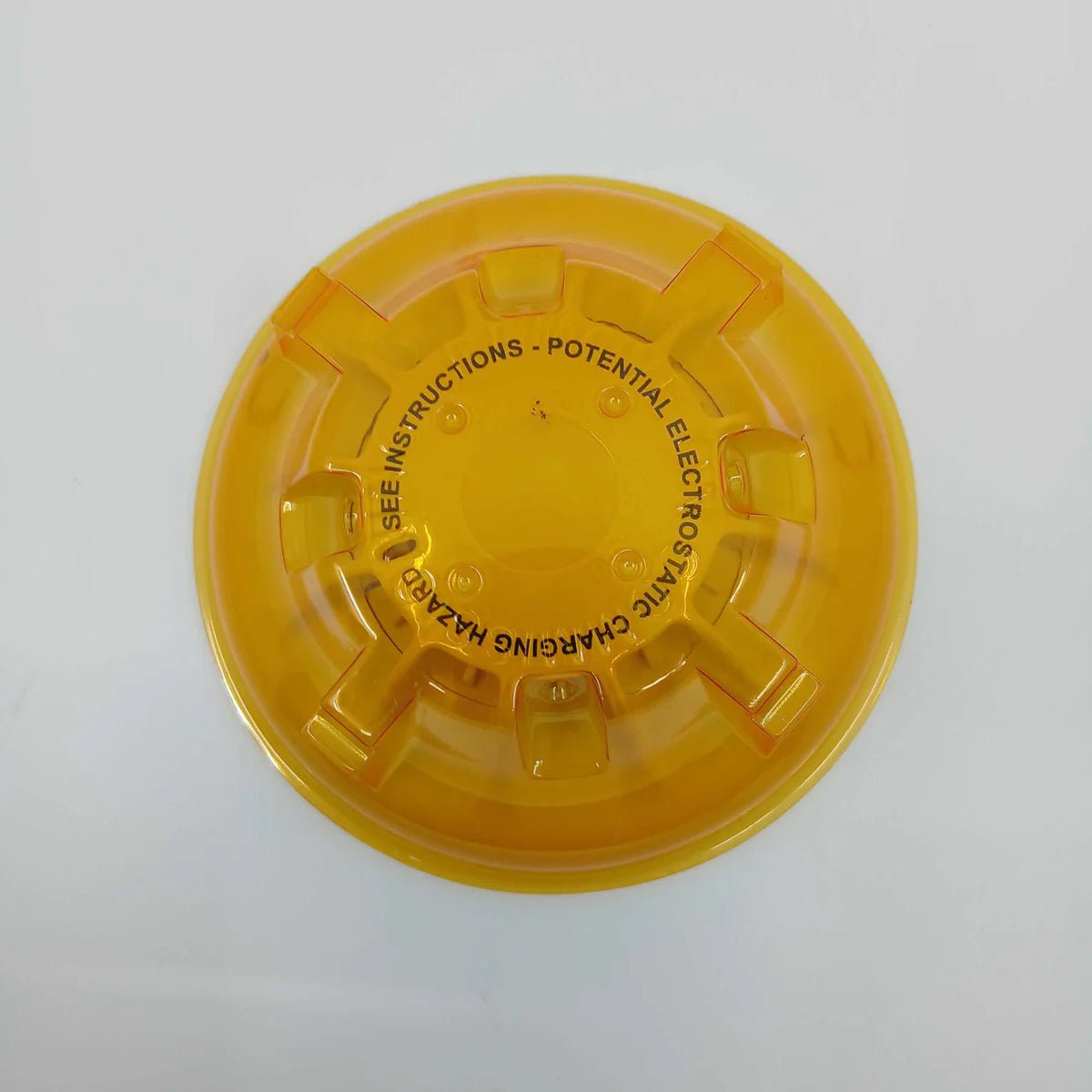

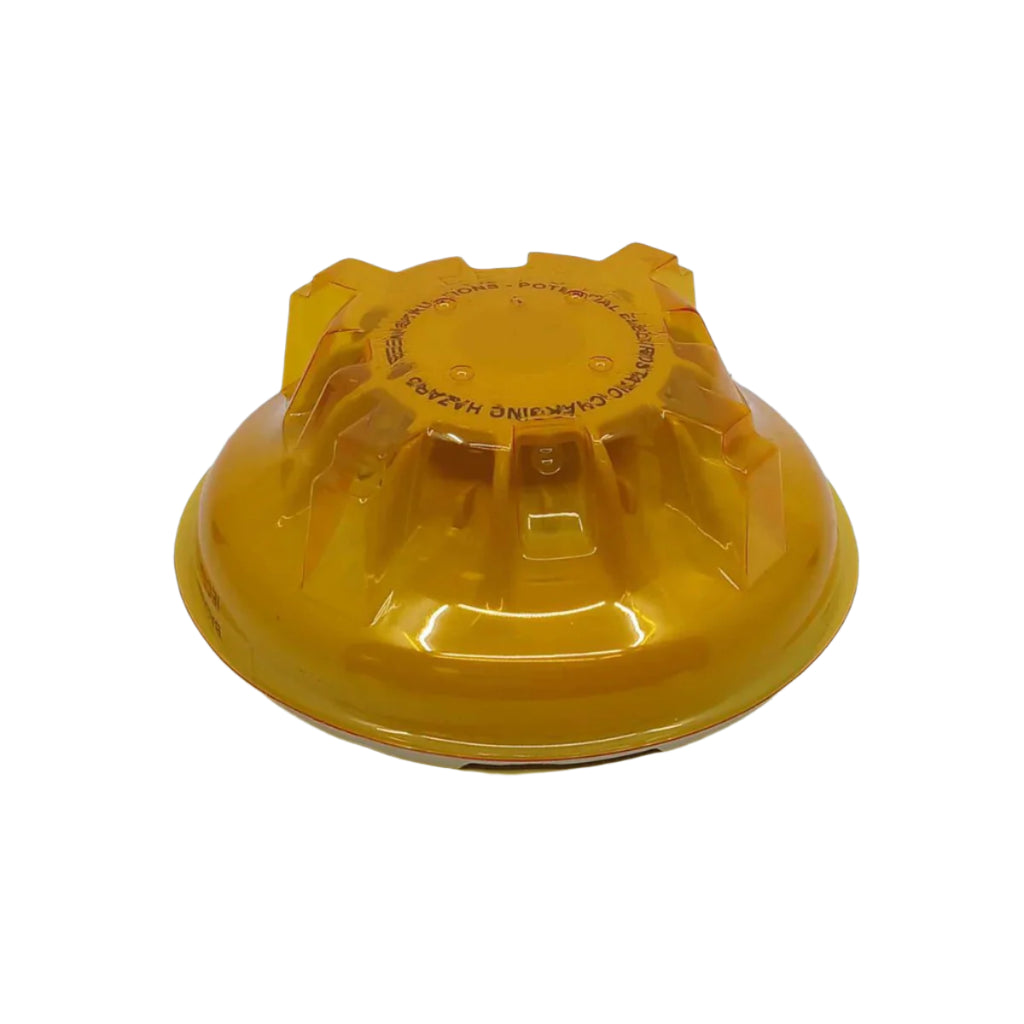

FireClass 516.061.001.Y MDU601Ex Enhanced Carbon Monoxide Fire & Heat Detector
Intrinsically safe conventional fire detector from the Tyco M600Ex series (sold under the FireClass / Zettler brands) that combines carbon monoxide fire detection with heat sensing. An electrochemical cell detects the carbon monoxide produced by fires. The series is ATEX certified for hazardous areas and is intended to be used with a suitable isolator or shunt-diode safety barrier in a certified intrinsically safe system.
Key Features
- Enhanced CO fire and heat detection in one conventional detector
- Electrochemical carbon monoxide cell
- Intrinsically safe: ATEX II 1 G, EEx ia IIC T5 (certificate BAS01ATEX1134X)
- Use with a galvanic isolator or shunt-diode safety barrier (System 601)
- Identified by a yellow logo label
Specifications
| Order code |
516.061.001.Y |
| ATEX marking |
II 1 G, EEx ia IIC T5 |
| Entity parameters |
28 V, 93 mA, 0.65 W |
Compatible With
- MUBEx base for Ex detectors (517.050.610)
- 5BEx 5 in. universal Ex base
