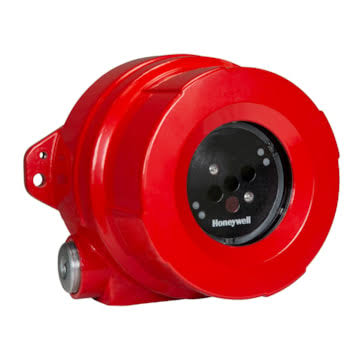

Fire Sentry FS24XP-ANGXX Triple IR Flame Detector

Fire Sentry FS24XP-ANGXX Triple IR Flame Detector with Mounting Bracket

The Fire Sentry FS24XP-ANGXX is a high-performance Triple IR (3IR) flame detector engineered for rapid and dependable flame detection in hazardous industrial environments. Utilizing advanced infrared sensing technology and intelligent signal processing, it quickly detects hydrocarbon fires while providing exceptional immunity to false alarms caused by sunlight, lightning, welding, hot equipment, and other environmental conditions.

This model features a copper-free powder-coated aluminum enclosure, dual 3/4-inch NPT conduit entries, and includes a standard swivel mounting bracket with a protective sunshade, making it suitable for refineries, petrochemical plants, fuel storage facilities, offshore platforms, power plants, and other demanding industrial applications.

The FS24XP-ANGXX supports multiple communication and output options, including 4–20 mA analog, alarm, fault, and auxiliary relays, Modbus RTU, FireBus II, and optional HART® communication. Automatic optical integrity monitoring, continuous self-testing, and selectable sensitivity levels help maximize reliability while reducing maintenance requirements.

Key Features

• Triple IR (3IR) flame detection technology

• Rapid hydrocarbon flame detection

• Exceptional immunity to false alarms

• Copper-free powder-coated aluminum enclosure

• Standard swivel mounting bracket included

• Protective sunshade included

• Dual 3/4-inch NPT conduit entries

• Wide field of view

• Selectable sensitivity levels

• Automatic optical integrity monitoring

• Continuous electronic self-test

• 4–20 mA analog output

• Alarm, fault, and auxiliary relay outputs

• RS-485 Modbus RTU and FireBus II communication

• Optional HART® communication

• Suitable for hazardous locations

• Genuine Fire Sentry flame detector

Applications

The Fire Sentry FS24XP-ANGXX is ideal for:

• Oil and gas facilities

• Offshore platforms

• Petrochemical plants

• Chemical processing facilities

• LNG and LPG terminals

• Fuel storage facilities

• Aircraft hangars

• Power generation plants

• Turbine and compressor enclosures

• Pipeline pumping stations

• Marine terminals

• Hazardous industrial environments

Specifications

• Manufacturer: Fire Sentry

• Model: FS24XP-ANGXX

• Product Type: Triple IR Flame Detector

• Detection Technology: Triple Infrared (3IR)

• Housing Material: Copper-free powder-coated aluminum

• Mounting: Standard swivel mounting bracket included

• Sunshade: Included

• Conduit Entry: Two 3/4-inch NPT entries

• Operating Voltage: 18–32 VDC (24 VDC nominal)

• Analog Output: 4–20 mA

• Relay Outputs: Fire Alarm, Fault, and Auxiliary

• Communication: RS-485 Modbus RTU, FireBus II, Optional HART®

• Field of View: 90° or 110° (model dependent)

• Response Time: As fast as 3–5 seconds

• Operating Temperature: -40°F to 185°F (-40°C to 85°C)

• Enclosure Rating: NEMA 4, NEMA 4X, IP66

• Certifications: FM, ATEX, IECEx, CE (model dependent)

Why Choose the Fire Sentry FS24XP-ANGXX?

The Fire Sentry FS24XP-ANGXX delivers rapid, dependable flame detection for critical industrial applications where safety is essential. Its advanced Triple IR technology minimizes nuisance alarms while providing outstanding fire detection performance. With a rugged aluminum enclosure, standard swivel mounting bracket, protective sunshade, advanced diagnostics, and multiple communication options, it is an excellent choice for oil and gas, petrochemical, power generation, and other hazardous industrial fire protection applications.
