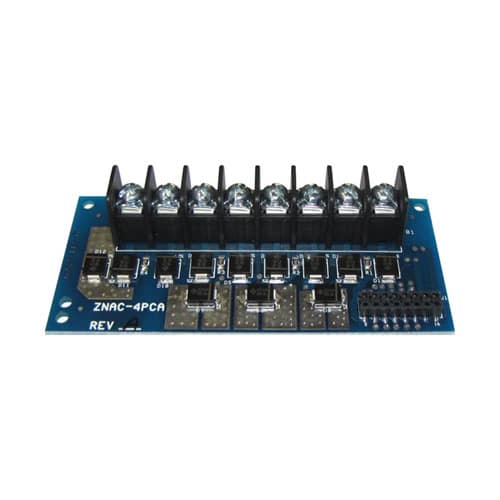

Fire-Lite ZNAC-4 is a Class A (Style Z) notification appliance circuit (NAC) option module for the FCPS-24 field charger/power supply. It mounts to the J3 connector on the upper right side of the power supply circuit board and converts the four Class B (Style Y) NAC outputs to Class A (Style Z) wiring. Installers add it when the job specifies Class A notification circuits wired back to the power supply.
Specifications
| Type |
NAC option module |
| Circuit class |
Class A (Style Z) |
| Mounting |
J3 connector, upper right side of the FCPS-24 circuit board |
| NAC outputs supported |
4 |
| Works with |
FCPS-24S6 and FCPS-24S8 remote power supplies |
Installation notes
- Plugs onto the power supply board; no separate enclosure
- Without the module the FCPS-24S6 and FCPS-24S8 provide four Class B (Style Y) NACs
- With the module the same four outputs operate as Class A (Style Z) NACs
- FCPS-24S6 and FCPS-24S8 supply 6 A and 8 A of full-load output respectively in NAC expander mode (UL 864)
