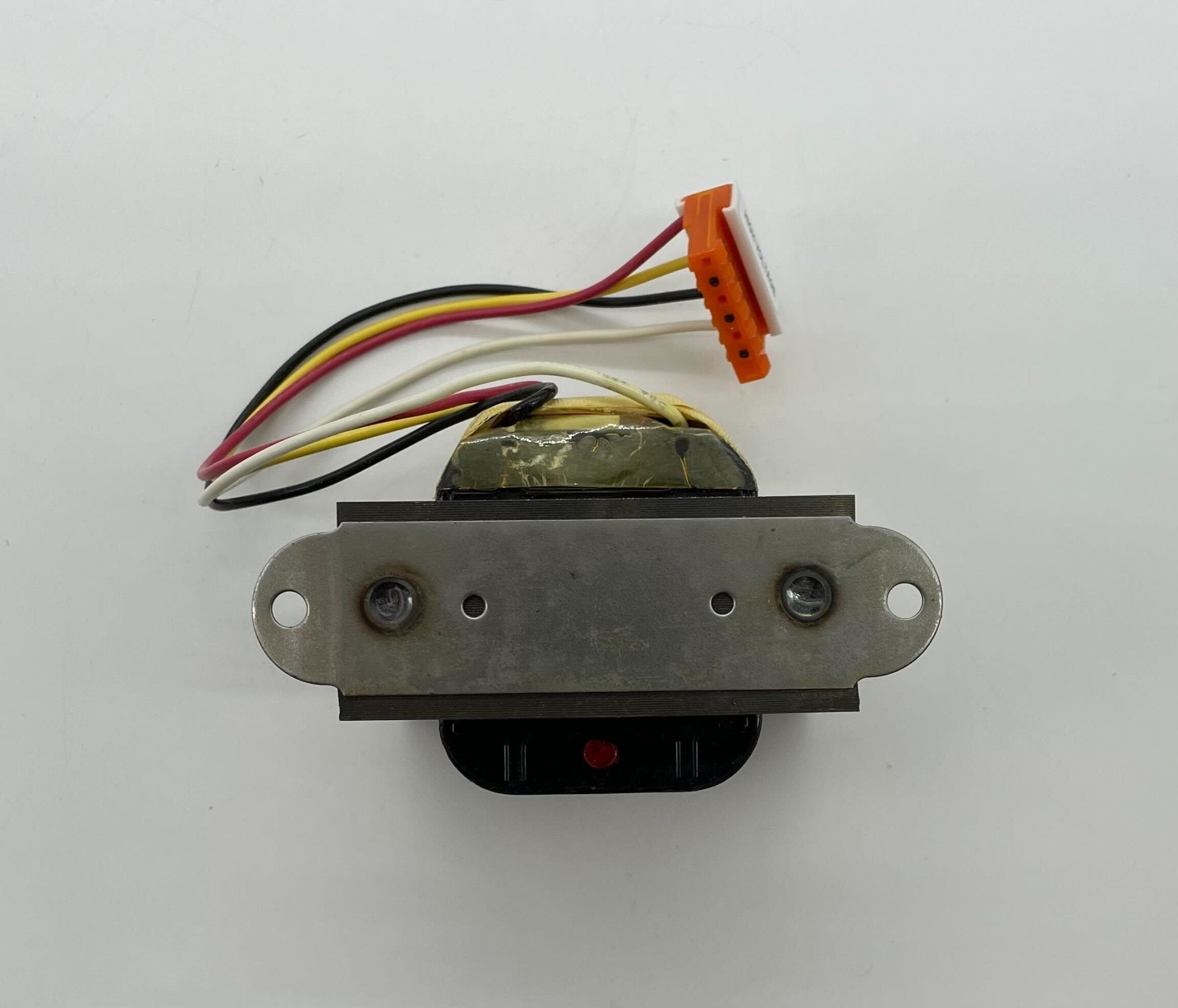

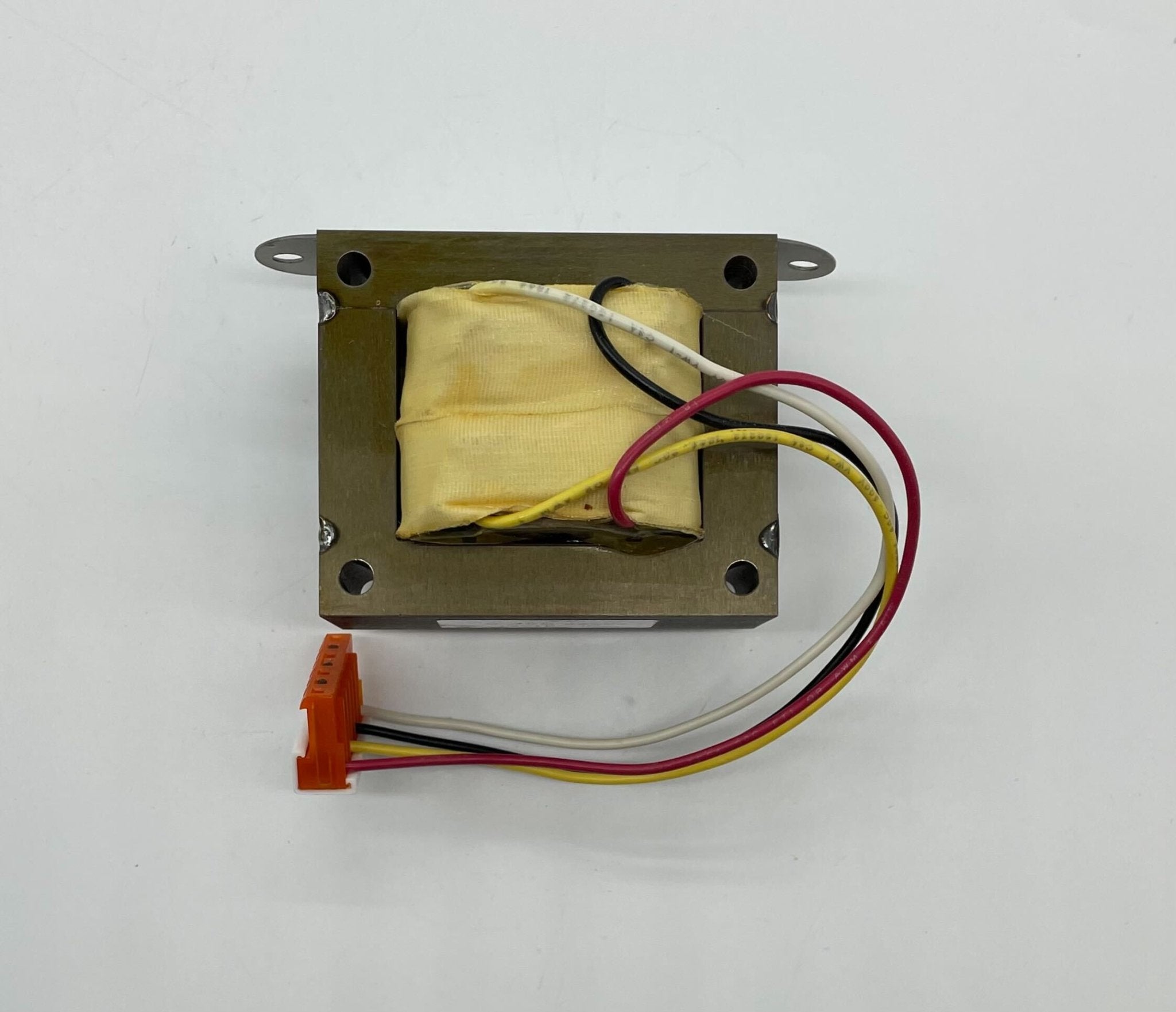

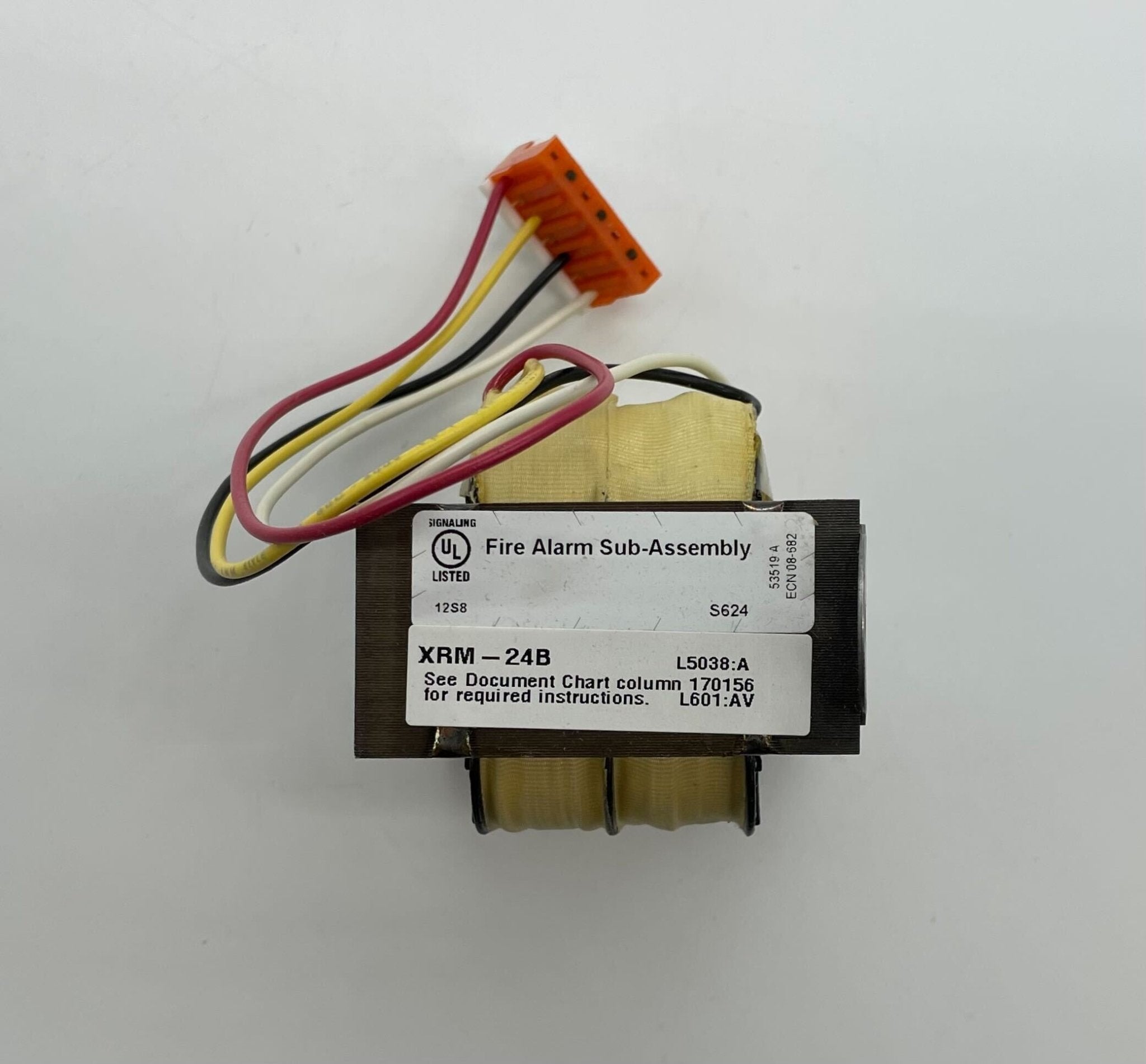

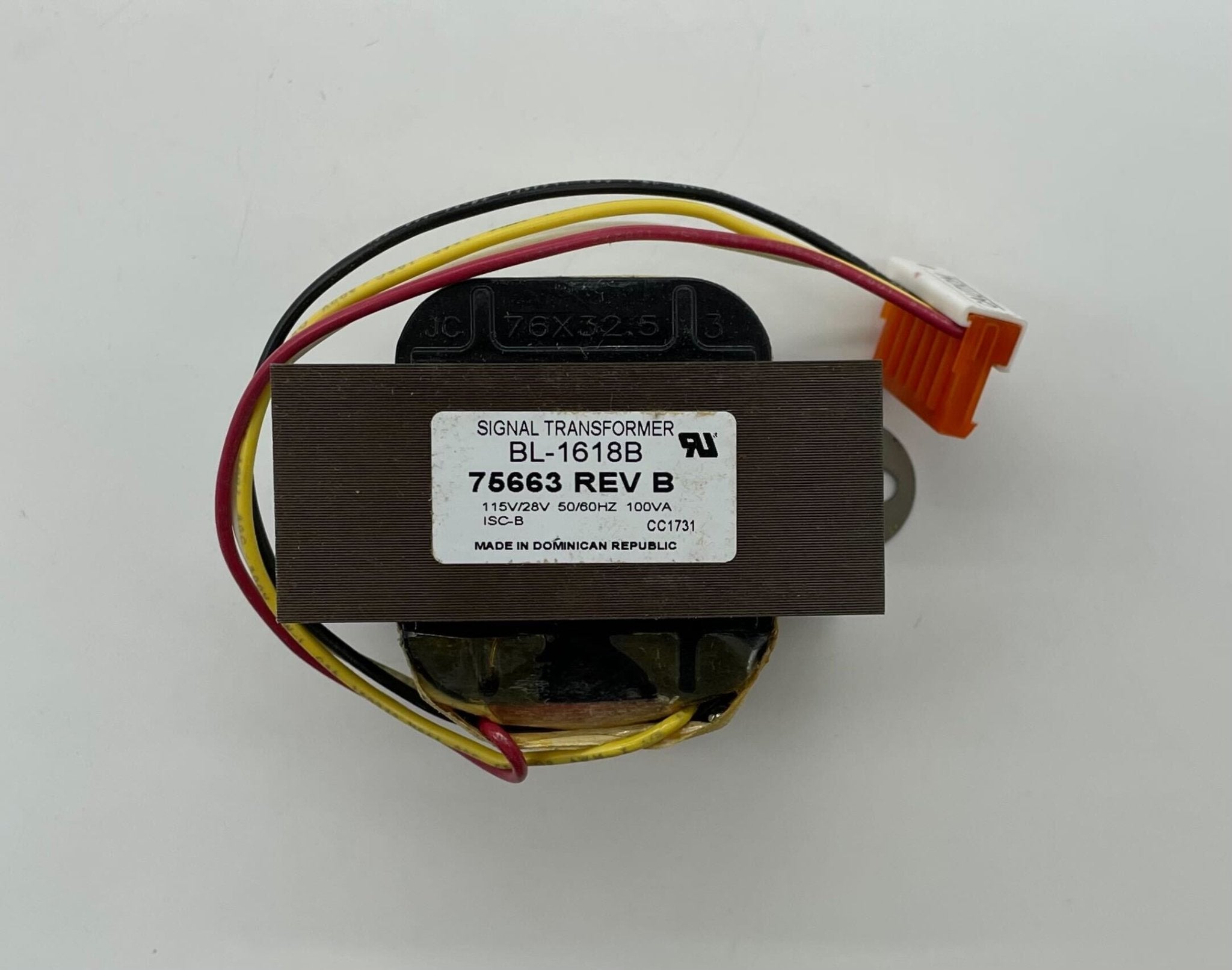

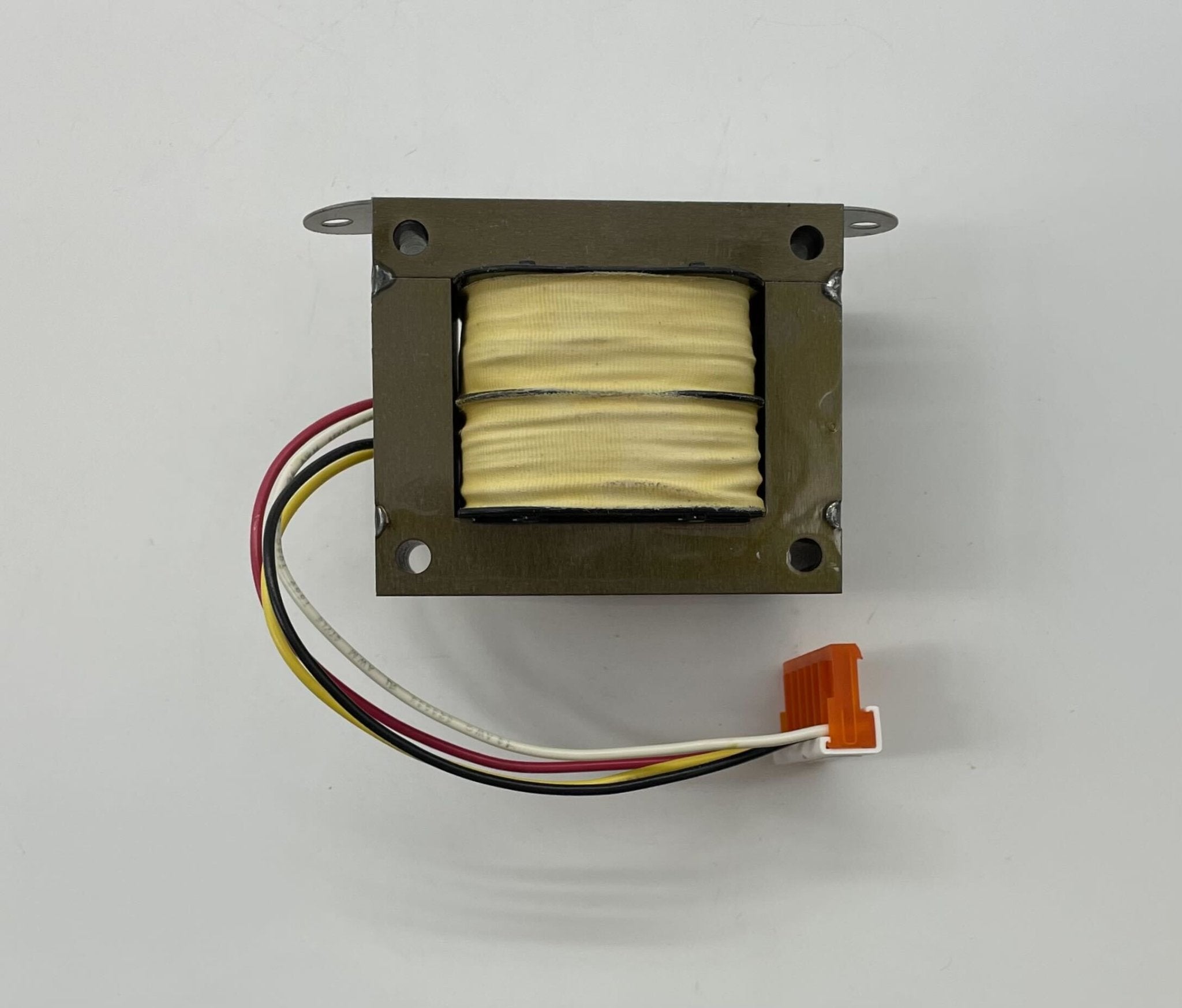

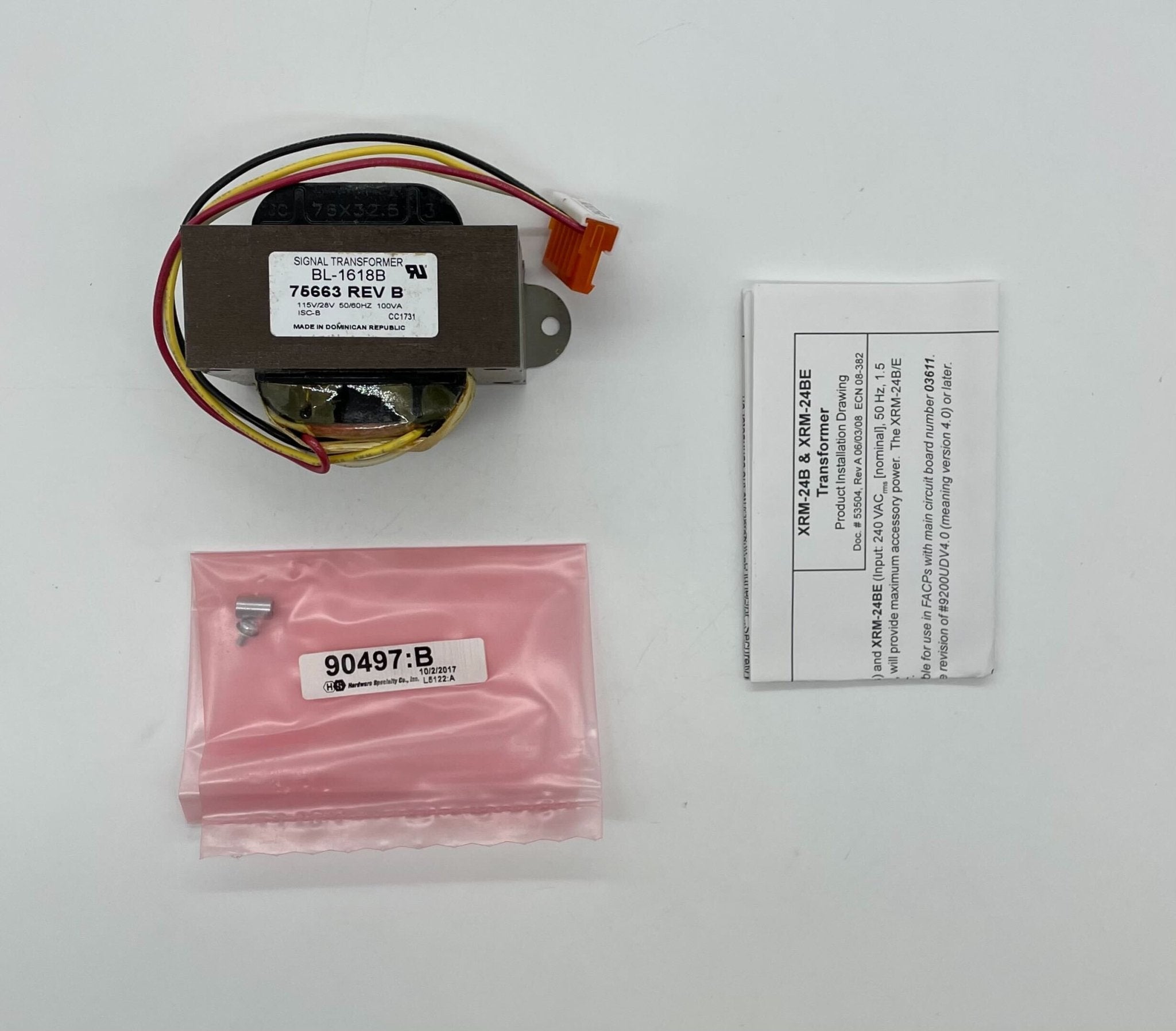

Fire-Lite XRM-24B is an optional 24 V, 100 VA transformer for fire alarm control panels, with a 120 VAC, 60 Hz input. It mounts on the panel chassis next to the standard transformer to provide the maximum accessory power.
It is only suitable for panels that use main circuit board number 03611.
Features
- Mounts to the control panel chassis next to the standard transformer
- Provides maximum accessory power
- 100 VA transformer, 24 V AC output
- 120 V AC, 60 Hz input at 3.0 A
- For use only on main circuit board number 03611
Specifications
| Product Type |
Step-down transformer |
| Input |
120 V AC, 60 Hz |
| Output |
24 V AC |
| Power Rating |
100 VA |
| Maximum Line Current |
3 A |
