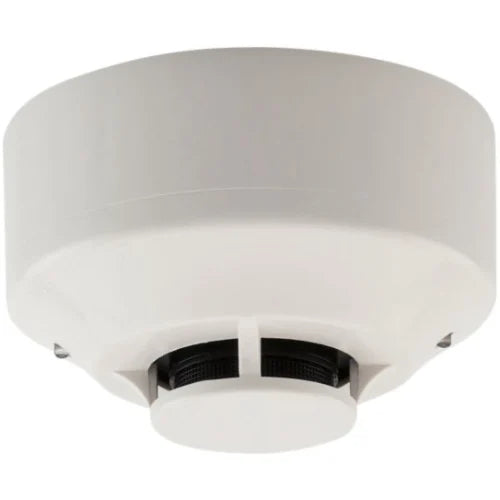

Fire-Lite W-SD355 — SWIFT intelligent wireless photoelectric smoke detector, shipped with a B501W base and four CR-123A batteries.
SWIFT detectors are addressable devices reaching the panel across a Class A wireless mesh rather than an SLC pair, which suits buildings where running cable is costly, obtrusive or hazardous. Each device holds two parents, so every unit has a second path.
- Photoelectric sensor sending a digital representation of smoke density through the mesh
- Radio frequency range 902 to 928 MHz, with frequency hopping
- Four Panasonic CR123A or Duracell DL 123A batteries, included, with a two year battery life
- 2.4 in. high and 4.0 in. diameter in the B501W base; 8.1 oz. including the batteries
- Operating range 32 to 120 °F and 10% to 93% relative humidity, non-condensing
- Addressable code wheels and two panel-controlled LEDs in red, green and amber
- UL 268 and UL 864; UL certified S1059 and S2517; FM approved; FCC ID AUBWFSSD
One W-GATE gateway is required per mesh and supports up to 48 SWIFT detectors or modules, connecting to the SLC of an ES-50X, ES-200X, MS-9200UDLS or MS-9600(UD)LS. W-SD355T adds a 135 °F thermal element; W-H355 and W-H355R are the heat detectors.
