Wireless Swift Gateway supports up to 48 SWIFT detectors and modules, 1 required per wireless mesh. Display driver connects to compatible panels

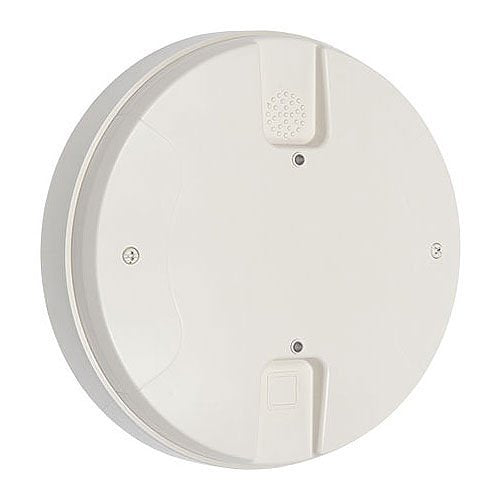

W-GATE: SWIFT Gateway, Fire-Lite
W-GATE SWIFT® & wireless fire system gateways act as a bridge between the fire alarm control panel (FACP) and wireless fire devices. The wireless gateways use mesh technology to communicate with devices and offer high reliability for commercial applications. W-GATE gateways can be installed anywhere on the SLC and is an excellent solution for retrofits and hard-to-wire applications.
Key Features
- Wireless mesh technology, 902 to 928 MHz frequency
- Cascading-wave mesh operation provides a verification of redundant communication paths
- Any wireless device can be added to act as a repeater
- Each gateway supports up to 50 addresses: 1 wireless gateway, 1 display driver, and up to 49 devices
- Up to four wireless networks can be installed with overlapping radio network coverage
- Site survey feature allows for an evaluation of a site before the installation
- Standard code wheel for setting the SLC address
- Wireless devices use four CR-123A lithium batteries
Documents & Downloads
FAQ
Which panels support the W-GATE?
The Fire-Lite ES-50X, ES-200X, MS-9200UDLS and MS-9600(UD)LS.
How many wireless devices can one gateway support?
One gateway and up to 49 wireless detectors, modules, pull stations and A/V bases with the ES-50X or ES-200X. With the MS-9200UDLS and MS-9600(UD)LS, it supports up to 48 devices plus one display driver.
Is a display driver needed?
Only on the MS-9200UDLS and MS-9600(UD)LS: each W-GATE needs one W-DIS-D wireless display driver and an ANN-80-W annunciator to show wireless-specific events.
What batteries do the wireless devices use?
Four CR-123A lithium batteries each, with battery life rated for 2 years.
