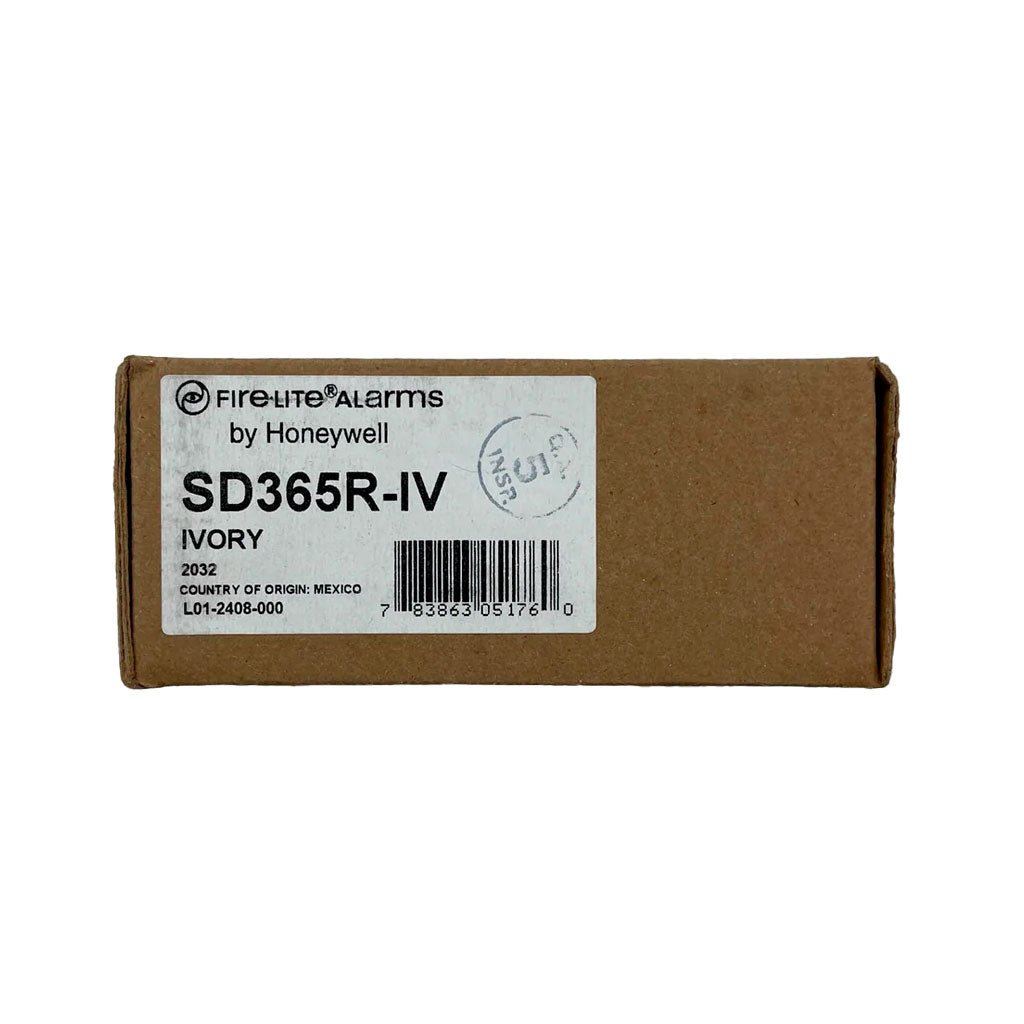

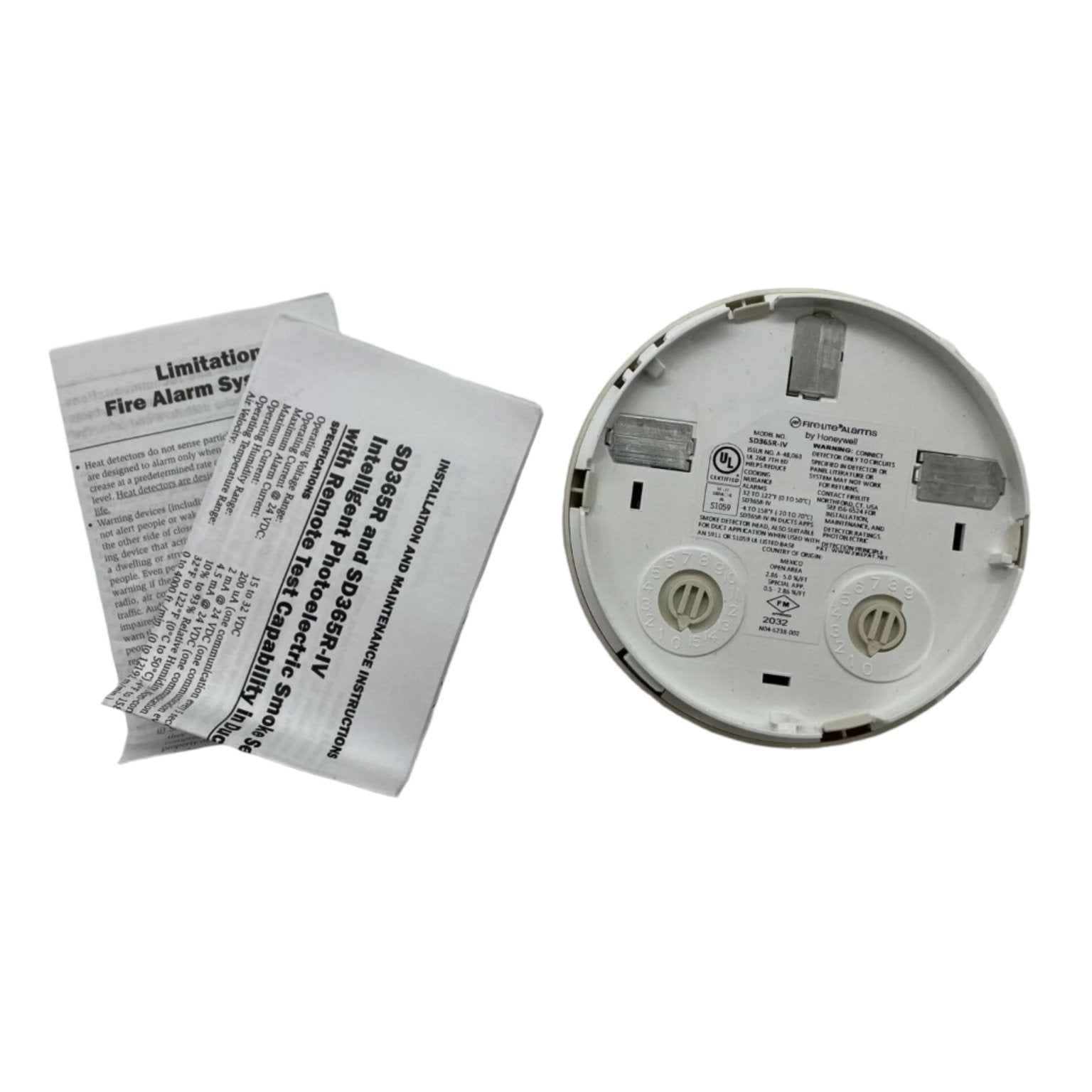

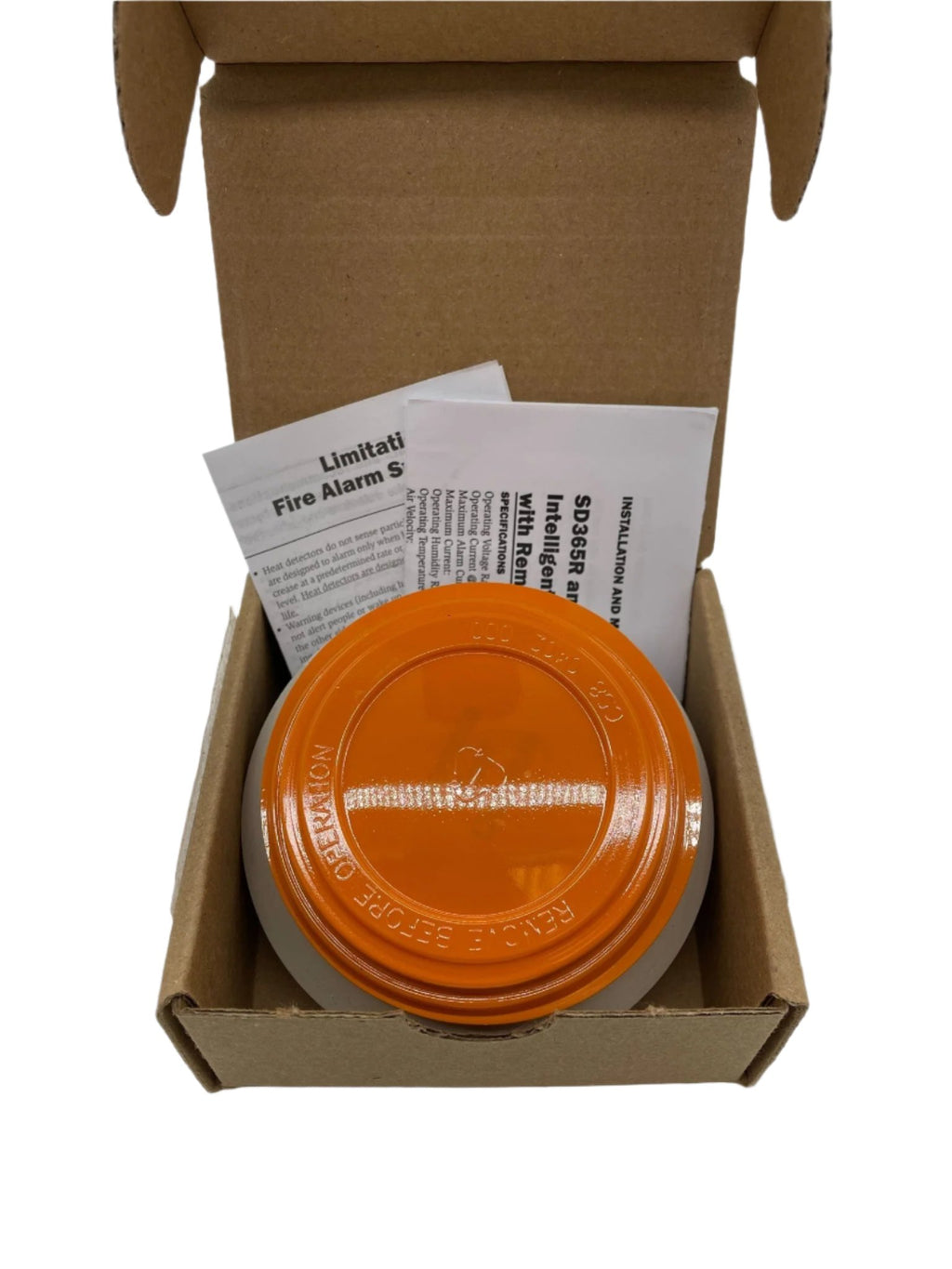

Fire-Lite SD365R-IV — ivory addressable photoelectric smoke sensor with remote test, made to sit inside a DNR or DNRW duct smoke detector housing.
This is the plug-in sensor, not a complete duct detector. Fire-Lite lists it as a low-profile intelligent photoelectric sensor for use with the DNR and DNRW housings, which carry the sampling tubes and duct interface and are ordered separately. Remote test lets the panel call an alarm report without anyone reaching the duct.
- Two-wire SLC connection with rotary decimal addressing
- The -IV suffix indicates a CLIP and LiteSpeed device; the white SD365R is LiteSpeed only
- Designed to meet UL 268 7th Edition, preset at 1.5% nominal sensitivity
- 15 to 32 Vdc peak, 200 µA standby at 24 Vdc, 4.5 mA maximum
- -4 to 158 °F installed in a DNR or DNRW, the figure stated for SD365R
- UL and ULC certification S1059, FM approved, CSFM 7272-0075
SD365-IV is the same sensor without remote test, and SD365T-IV adds a built-in 135 °F thermal device; the thermal figures in the series specification block carry no model attribution and belong to that version, not this one.
Documents
FAQ
Is the SD365R-IV a complete duct smoke detector?
No. It is a plug-in smoke sensor that is also certified for use inside DNR or DNRW duct smoke detector housings, which are ordered separately.
How is the remote test done?
The SD365R-IV can be tested remotely with the RTS151 or RTS151KEY test accessories. Wiring diagrams are in the DNR(W) manual.
Which protocol does it use?
The SD365R-IV supports either LiteSpeed or CLIP mode, while the white SD365R supports LiteSpeed only.
What duct conditions is it rated for?
In duct applications it operates from -4 °F to 158 °F (-20 °C to 70 °C) and at air velocities from 0 to 4000 ft/min.
