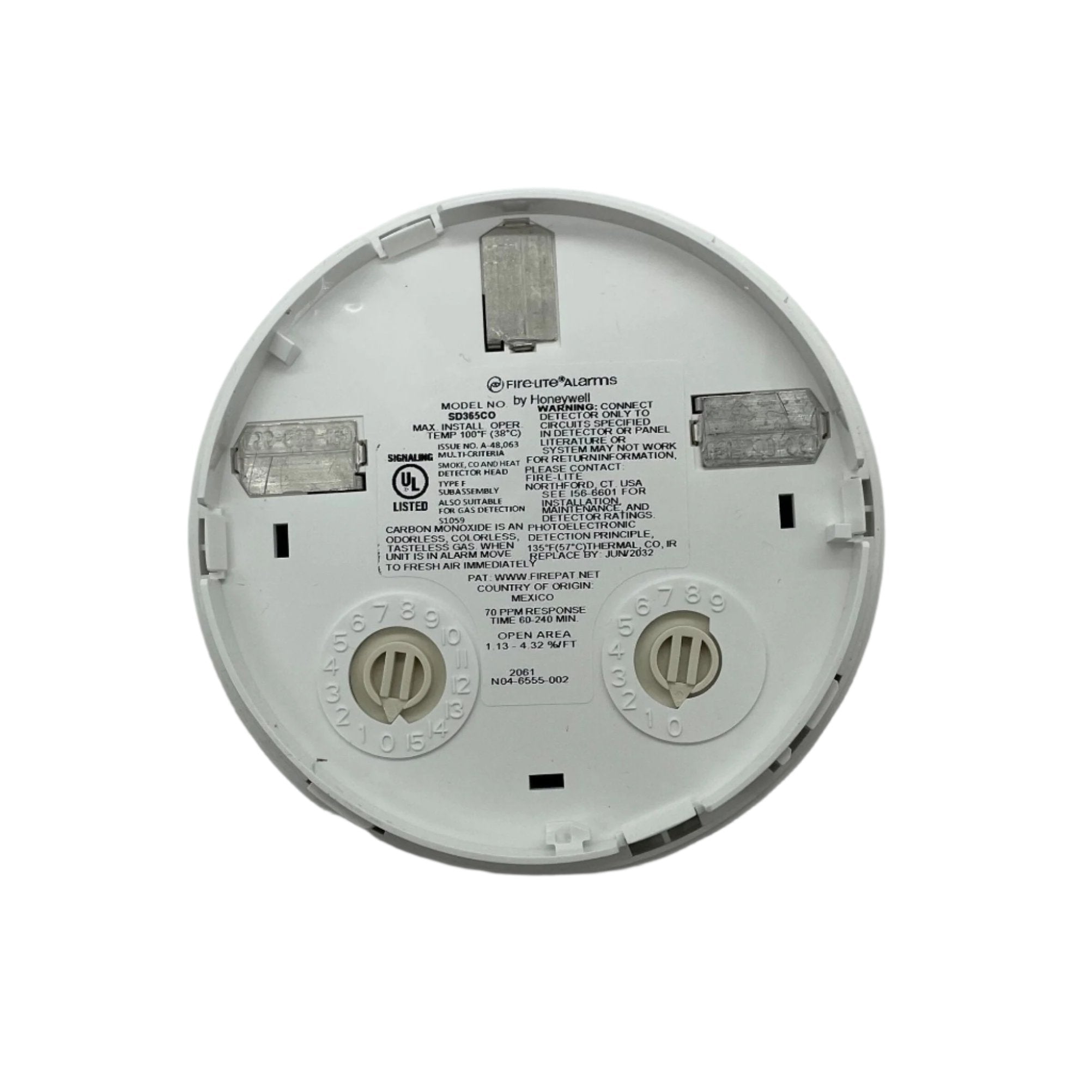

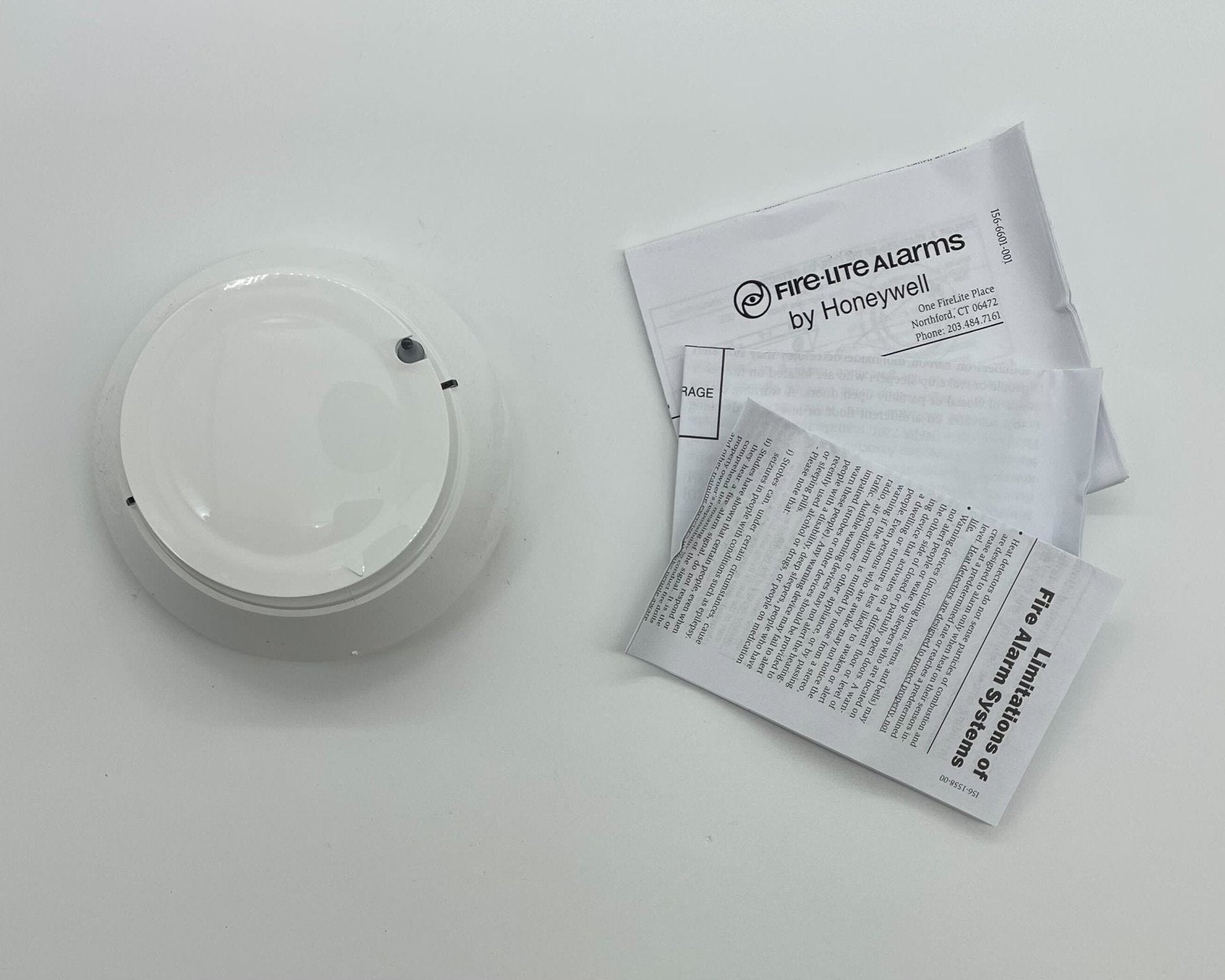

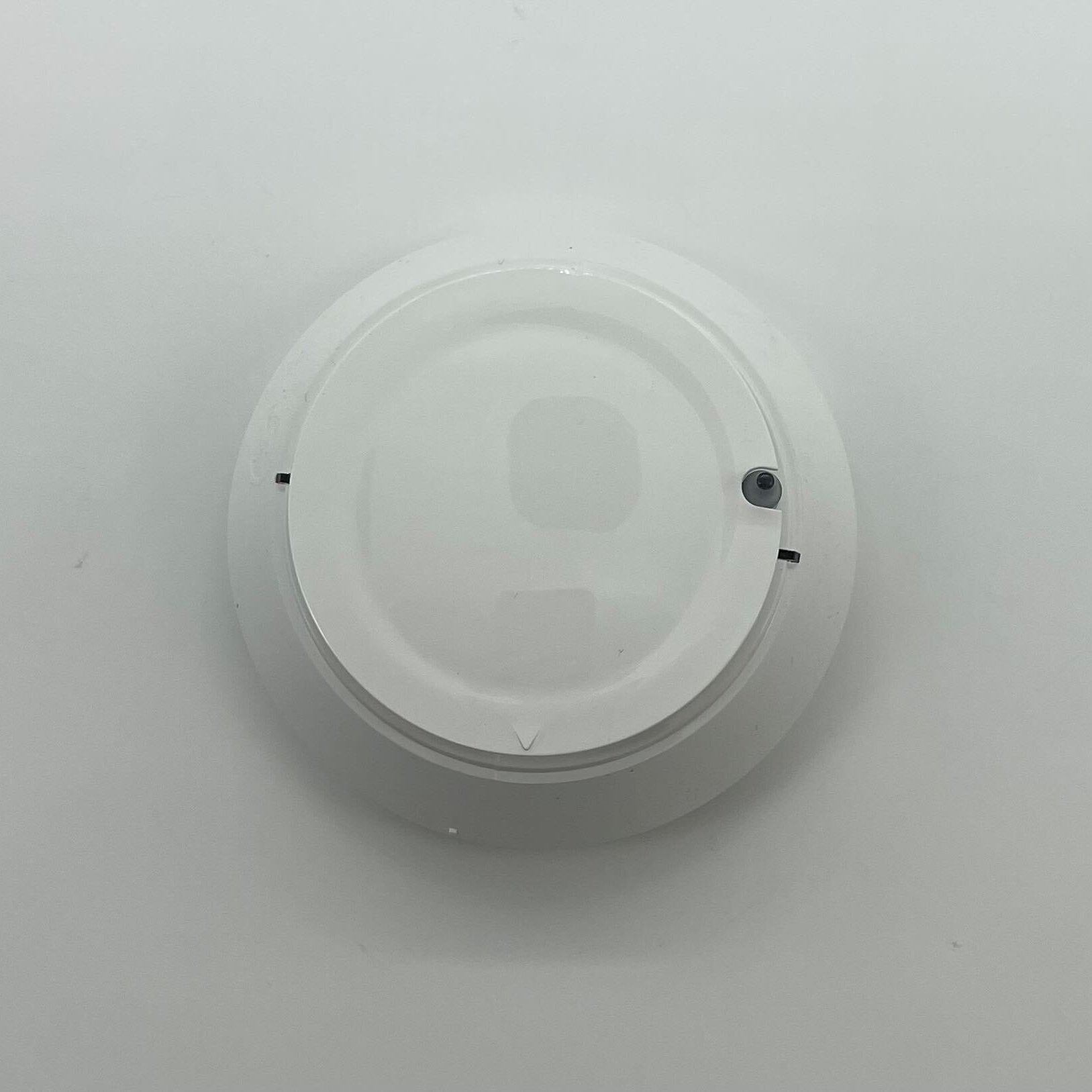

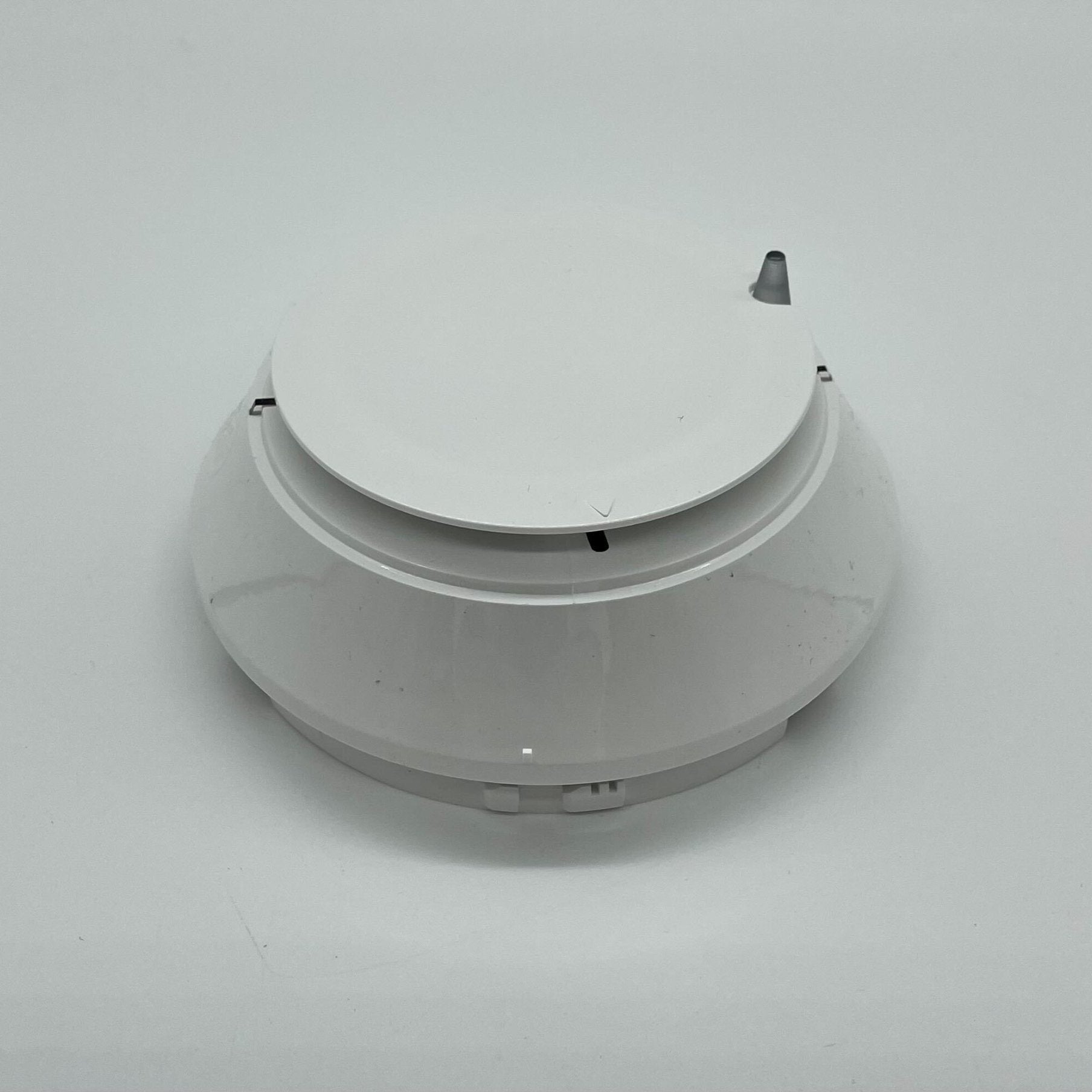

SD365CO — plug-in addressable multi-criteria detector, white, combining four separate sensing elements to provide both fire and carbon monoxide detection while using only one address on the SLC.
The SD365CO senses multiple components of a fire at once: photoelectric sensors detect airborne particles associated with smoke, thermal sensors detect heat and rate-of-rise against a 135°F fixed temperature threshold, carbon monoxide sensors detect that by-product of fire, and infrared sensors discern light patterns in the environment as an additional data point for alarm determination. For CO, the electrochemical sensing cell creates a separate signal for life safety carbon monoxide detection. Sophisticated algorithms combine the sensor types to deliver heightened immunity to nuisance particulate alongside enhanced sensitivity to real fire, which supports use in applications with moderate to heavy nuisance conditions — theater smoke, for example — that might cause single-sensing detectors to false alarm. Automatic drift compensation is applied to both the smoke and CO sensors, and RealTest CO testing capability is built in. The detector meets UL 268 and UL 521 requirements for fire detection as well as UL 2075 for system-connected life safety carbon monoxide detection.
Specifications
| Sensing elements |
Photoelectric, thermal (135°F fixed temperature threshold and rate-of-rise), electrochemical carbon monoxide, and infrared |
| SLC addresses used |
One |
| Protocol |
LiteSpeed |
| Color |
White |
| Operating voltage range |
15 to 32 VDC |
| Operating current @ 24 VDC |
200 µA (one communication every 5 seconds with green LED blink on communication) |
| Maximum alarm current |
2 mA @ 24 VDC (one communication every 5 seconds with red LED solid on) |
| Maximum current |
4.5 mA @ 24 VDC (one communication every 5 seconds with amber LED solid on) |
| Isolator load rating |
0.0063 |
| CO alarm threshold — 70 ± 5 ppm |
Detector response time 60–240 minutes |
| CO alarm threshold — 150 ± 5 ppm |
Detector response time 10–50 minutes |
| CO alarm threshold — 400 ± 10 ppm |
Detector response time 4–15 minutes |
| CO cell life |
10-year CO cell with end-of-life warning |
| Height |
2.7" (69 mm) installed in a B200S series sounder base |
| Diameter |
6.875" (175 mm) installed in a B200S series sounder base |
| Weight |
3.4 oz. (95 g) |
| Operating temperature range |
32°F to 100°F (0°C to 38°C) |
| Operating humidity range |
15% to 90% relative humidity, non-condensing |
| Air velocity |
0 to 4000 ft./min. (0 to 1219.2 m/min.) |
| Standards |
UL 268, UL 521 and UL 2075 listed; per UL 2075 the SD365CO has been tested to the sensitivity limits defined in UL Standard 2034 |
| Agency listings |
UL: S1059; CSFM 7272-0075:0507 |
| Country of origin |
Mexico |
Installation notes
-
Narrower temperature range than a plain photo detector: the SD365CO is rated 32°F to 100°F (0°C to 38°C), not the 32°F to 122°F of the standard SD365. Check the ambient before substituting one for the other.
-
CO cell is a wear item: the CO cell is rated for 10 years and gives an end-of-life warning. Budget for replacement rather than treating the detector as install-and-forget.
-
Sounder bases give separate fire and CO tones: B200S series intelligent sounder bases are recommended, and can generate a Temporal 3 pattern for fire or a Temporal 4 pattern for CO alarm indication. They recognize the System Sensor synchronization protocol when connected to a power supply or FACP output capable of generating those sync pulses.
-
One address, four sensors: despite combining four sensing technologies, the detector consumes only one address on the SLC.
-
Protocol: this white model is a LiteSpeed device. The ivory SD365CO-IV operates in LiteSpeed and CLIP mode, which matters on an SLC forced into CLIP polling by legacy devices.
-
Bases are separate items: order the mounting base to suit — B501-WHITE (4"), B300-6 (6" flanged), B200S-WH or B200S-LF-WH sounder, B224BI-WH isolator or B224RB-WH relay base.
Related models
-
SD365CO-IV — ivory version; operates in LiteSpeed and CLIP mode.
-
B200S-LF-WH — low-frequency intelligent sounder base for sleeping-space applications.
-
B224BI-WH / B224RB-WH — isolator base and relay base options.
-
SMB600 — flanged surface mounting kit; TR300 trim ring, RA100Z remote LED annunciator, M02-04-00 test magnet.
Specifications taken from the Fire•Lite Alarms data sheet "SD365CO Multi-Criteria Fire/CO Detector," document DF-62000:A (4/24/2019). Manufacturer specifications are subject to change without notice.
