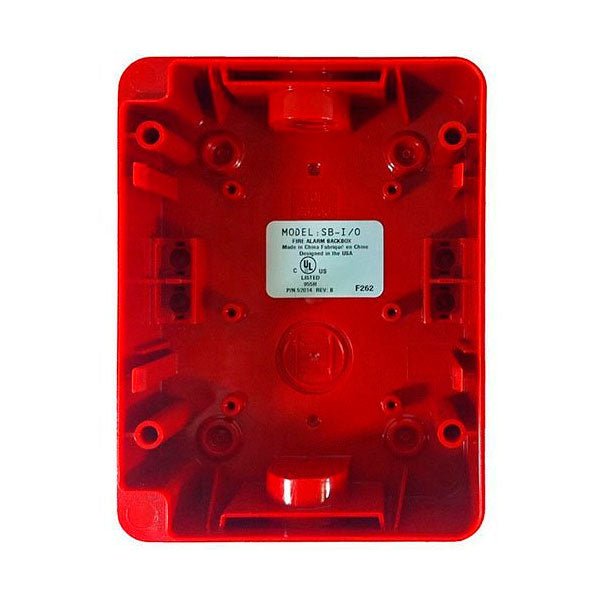

Fire-Lite SB-I/O is a red surface mount back box for pull stations, molded from increased UV-stabilized 94V-0 polycarbonate. Its mounting holes and bottom conduit entry are molded with a thin wall of material for improved outdoor weatherability.
Specifications
| Material |
UV-stabilized polycarbonate, 94V-0 |
| Application |
Indoor and outdoor |
| Conduit outlets |
Two reinforced 1/2 in. NPT outlets (one plug included) |
| Mounting |
Molded self-sealing mounting bosses; single-gang box mounting holes (knockout) |
| Hardware |
Four #10 x 1.00 in. mounting screws included |
| Certifications |
UL for indoor and outdoor use; CSFM |
Features
- Snap latches for easy installation of the pull station
- Thin-wall molded mounting holes and bottom conduit entry for outdoor weatherability
- Compatible pull stations named in the data sheet: PS-SA and PS-DA
Related models
- PS-SA single action and PS-DA dual action pull stations
Documents
FAQ
Which pull stations does the SB-I/O fit?
The SB-I/O data sheet lists the PS-SA and PS-DA pull stations.
Can it be used outdoors?
Yes. It is UL certified for indoor and outdoor applications.
What conduit connections does it have?
Two reinforced 1/2 in. NPT connector outlets, with one plug included.
Are mounting screws included?
Yes, four #10 x 1.00 in. mounting screws.
