Fire-Lite RZA-5F — five-zone LED remote annunciator for the Fire-Lite MS-5012, MS-5024 and MS-5024UD panels.
The RZA-5F repeats zone alarms and system trouble at a remote location. It cannot talk to the panel by itself: Fire-Lite requires an LED interface module on the panel board, the ADM-12 for the 12 VDC MS-5012 or the ADM-24 for the 24 VDC MS-5024 and MS-5024UD, and that driver is a separate part.

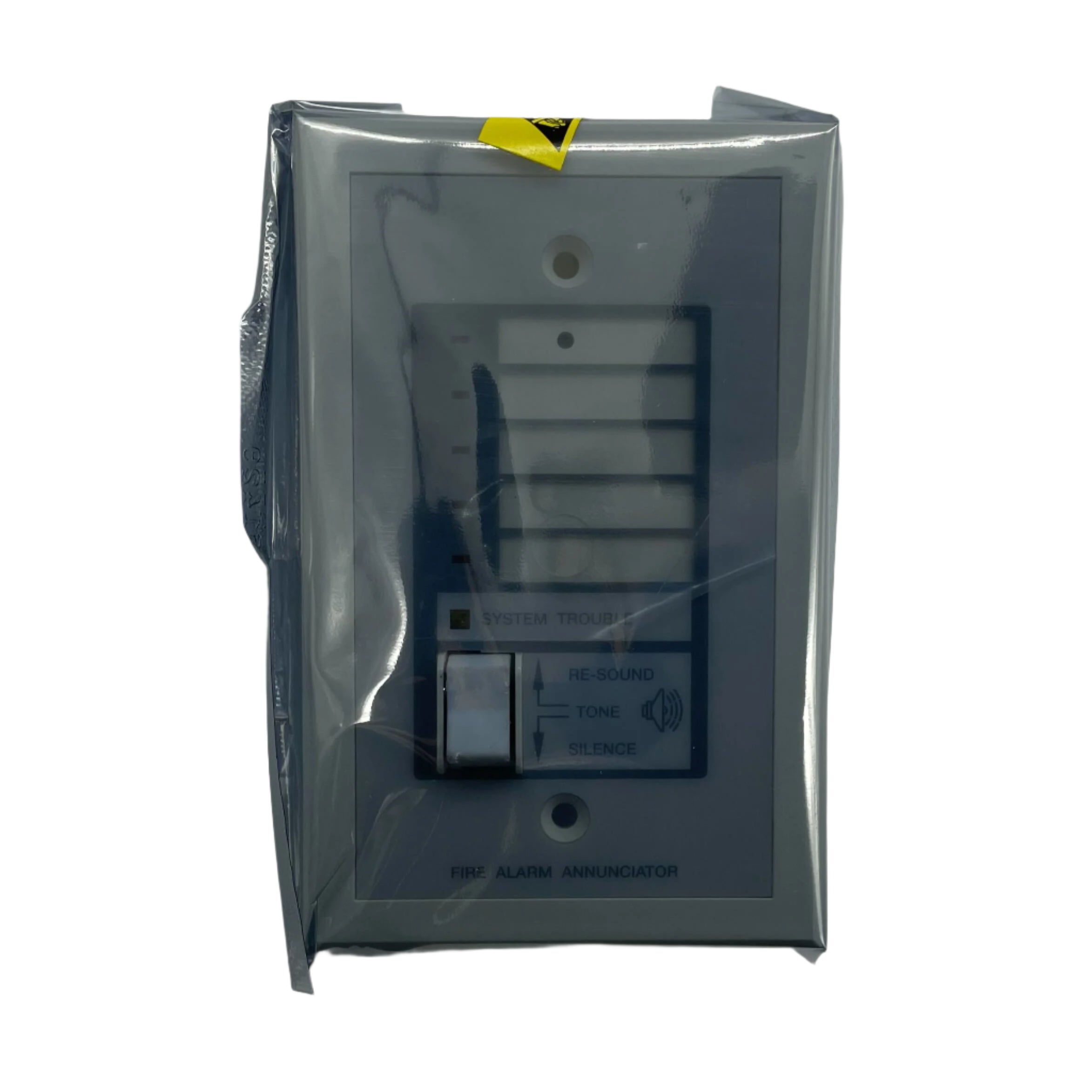

- Five red zone alarm LEDs and one yellow System Trouble LED
- Local trouble sounder with a Re-sound/Tone/Silence switch
- LED wiring supervised for open circuits

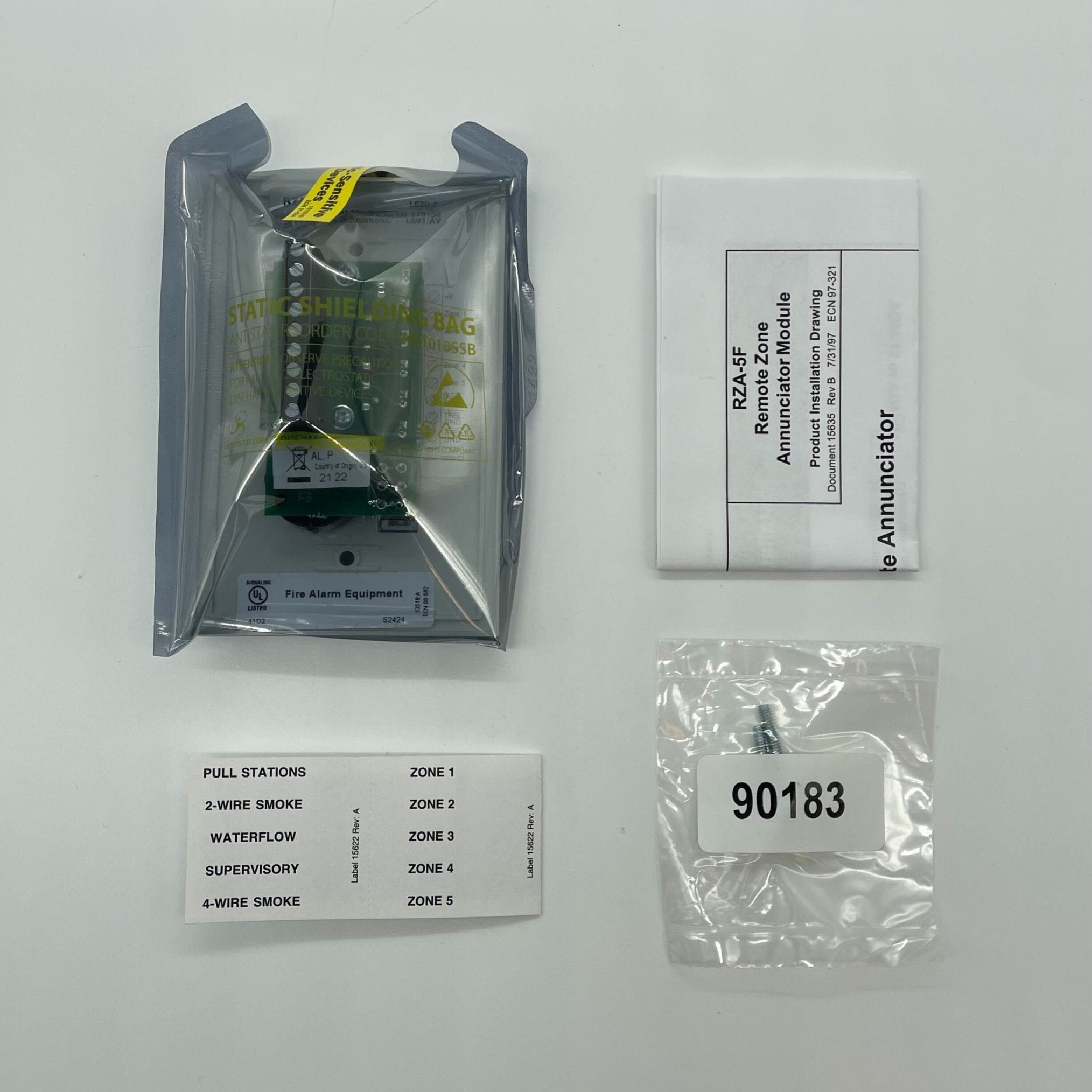

- Blank slide-in labels for zones 1–5
- Mounts on a standard single-gang box
- Nine-wire connection to the ADM; 100 ohm maximum per connection

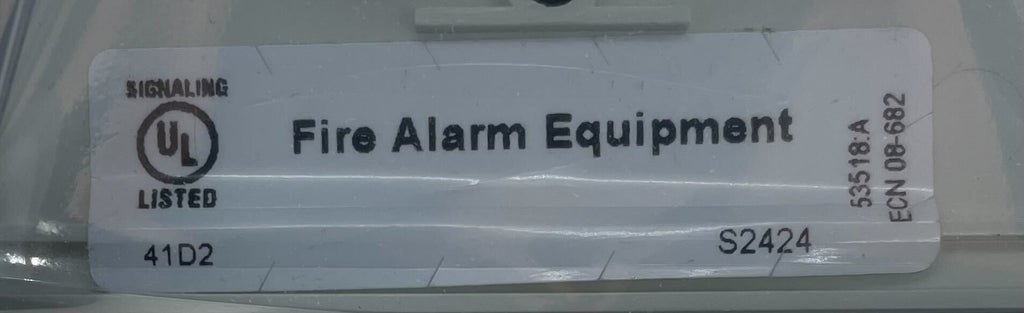

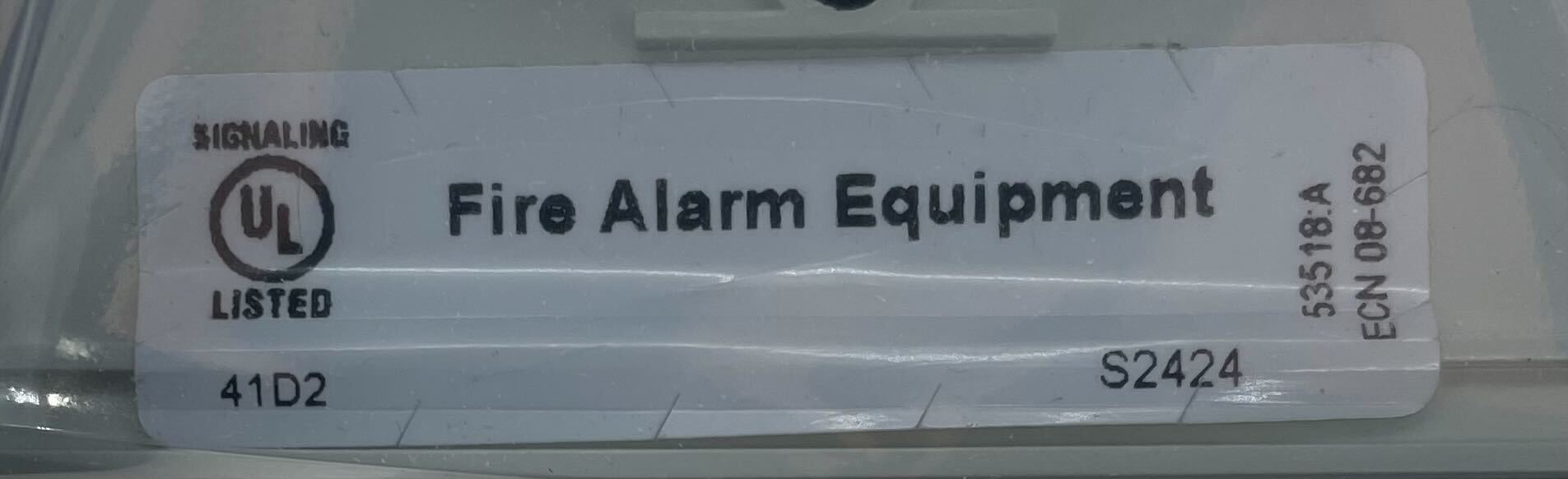

Not the RZA-4XF or Notifier RZA-4X, which are different catalogue numbers. Fire-Lite data sheet DF-52248 (07/13/04) lists UL S2424 and CSFM 7120-0075:171.
