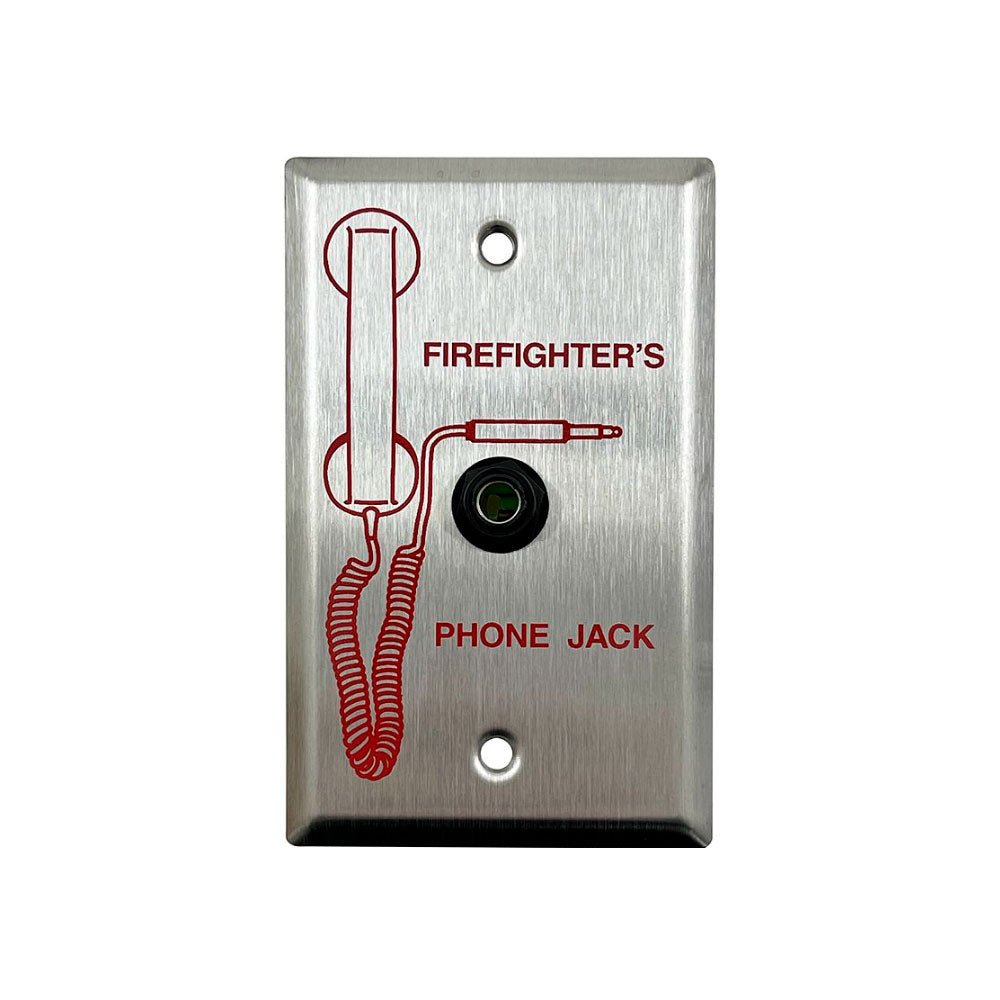

N-FPJ — remote Fire Fighter telephone jack for the NFC-FFT Fire Fighter Telephone system.
The N-FPJ is the outlet a fire fighter plugs a handset into on the floor of a building, so a crew can talk to the command point without relying on radio. Data sheet DN-60779:C lists it as a remote phone jack mounting to a single-gang electrical box, providing the plug-in location for the FHS-F handset. Field wiring lands on two three-position terminal blocks with a selectable contact end-of-line link.
- Mounts to a single-gang electrical box
- Plug-in point for the FHS-F Fire Fighter remote handset
- Up to 24 jacks per NFC-FFT, monitored individually or as a group
- Up to ten remote handsets in use at the same time
- Telephone circuit supervised by a 4.7 kΩ, 1/2 watt end-of-line resistor at the last device, Style Y only
- NMM-100P mini-monitor reports the connection; N100-ISO isolates jacks on Class A wiring
Honeywell documents this jack under the Notifier brand, in the NFC-FFT FirstCommand system. The Fire-Lite equivalent for the ECC-FFT is FPJ-F, and FFT-FPJ is a different jack for the IFP-FFT and SK-FFT.
