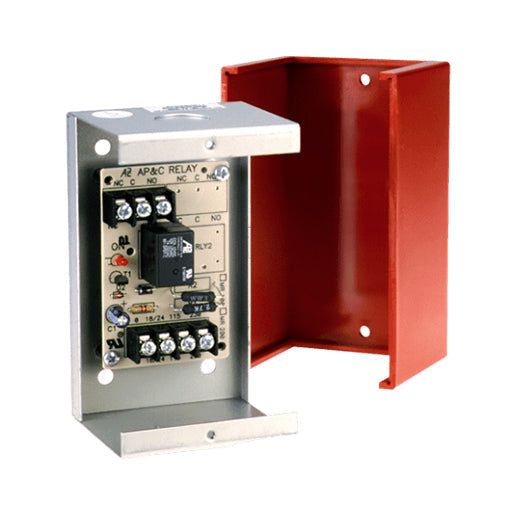

Fire-Lite MR-101/CR is a Potter MR-series control relay with a single SPDT 10A contact, in a red metal enclosure. It is a multi-voltage relay used where local contacts show system status, remote contacts control loads or general-purpose switching is needed.
A built-in red LED lights when the coil is energized, and the relay can be snapped apart from a standard four-position assembly for independent use.
Features
- SPDT contacts rated 10A
- Red LED indicates an energized coil
- Dust-proof metal enclosure with red plastic cover
- Track mounting hardware for standard cabinets
- UL recognized relays rated for 10,000,000 mechanical operations
- Suited to HVAC, temperature control, fire alarm, security, energy management and lighting control
Specifications
| Contacts |
SPDT, 10A |
| Material |
Metal, plastic |
| Color |
Red |
| Mounting |
Enclosure mount |
| Depth |
2.5" |
| Height |
6.1" |
| Width |
3.3" |
