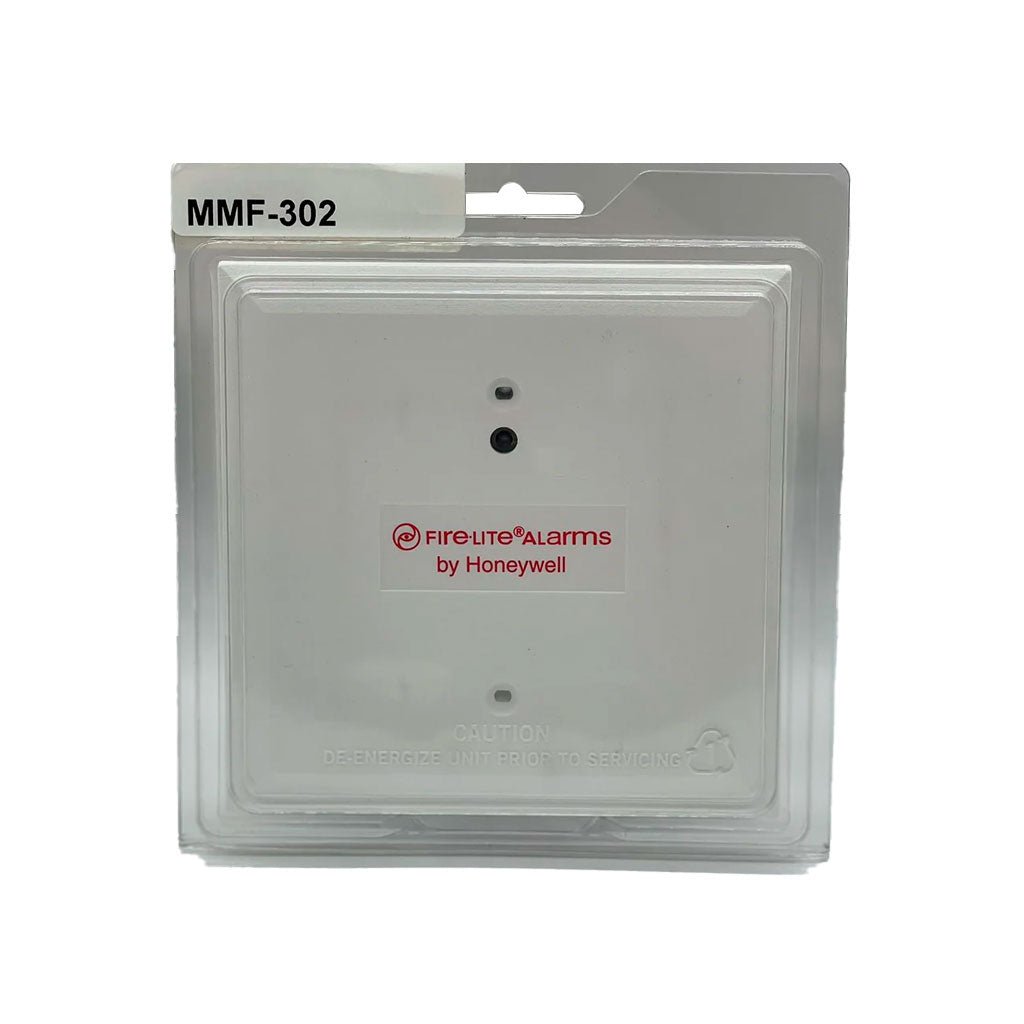

Fire-Lite MMF-302 — addressable interface module that monitors and powers one zone of conventional two-wire smoke detectors on an intelligent SLC.
Most Fire-Lite monitor modules supervise dry contact devices, which need no operating power. The MMF-302 is the member of the family built for two-wire smoke detectors, which do, and it reports a whole conventional zone to the panel as one addressable point.
- Monitors one zone of UL compatible two-wire 24 volt smoke detectors, Class B or Class A

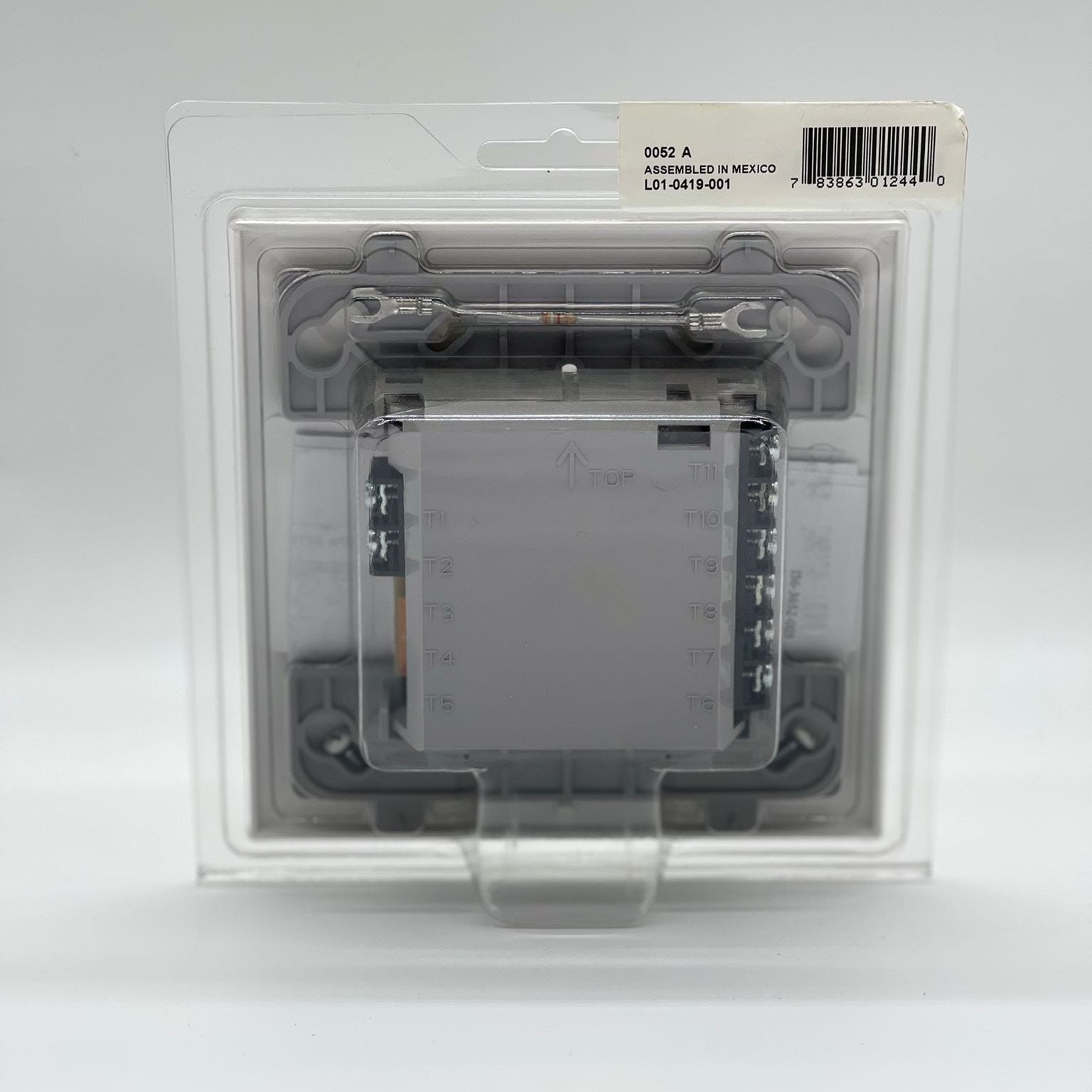

- End of line resistance 3.9 kΩ, supplied
- 15 to 32 VDC nominal; 5.1 mA maximum with the LED on, 270 µA average
- Maximum IDC wiring resistance 25 Ω
- External supply 24 volts power limited, 90 mA per module maximum
- 4.5 by 4 by 1.25 in., mounting to a 4 in. square by 2.125 in. deep box
The rest of the family monitors dry contacts on a 47 kΩ end of line resistor, so the resistor value alone separates them: MMF-300 takes a Class B or Class A dry contact circuit, MMF-301 is the miniature version fitting behind the device it monitors, and MDF-300 gives two Class B circuits. MMF-302-6 is the six-zone version.
