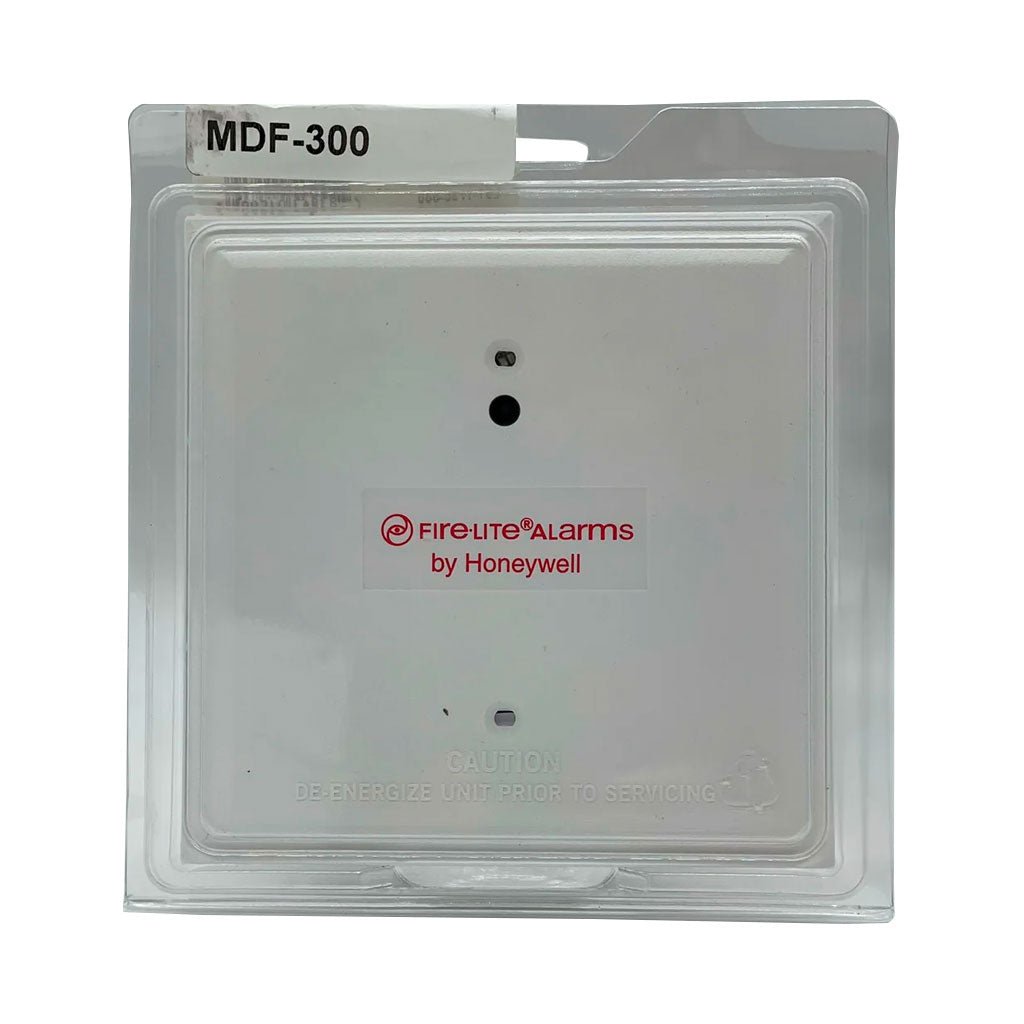

Fire-Lite MDF-300 — addressable dual monitor module giving two independent Class B initiating device circuits from one module.
It supervises two separate circuits of normally open contact fire alarm and supervisory devices, such as pull stations, waterflow switches or four wire smoke detector zones, and reports each to the panel as its own point.
- Two independent two wire Style B (Class B) circuits at two separate, consecutive addresses
- Terminals 6 and 7 use the first address, terminals 8 and 9 the next; the ones digit of the set address must be 0, 2, 4, 6 or 8
- Style D (Class A) circuits are not supported in any application
- 47 kΩ end-of-line resistors supplied; maximum circuit wiring resistance 1,500 Ω
- 15 to 32 VDC from the loop; average operating current 750 µA with the LED flashing
- 4.5 in. high by 4 in. wide by 1.25 in. deep; mounts to a 4 in. square box 2.125 in. deep or the SMB500
MMF-300 is the single circuit monitor module and does support Class A. MMF-302 monitors two wire smoke detectors on a 3.9 kΩ resistor rather than 47 kΩ.
FAQ
Does the MDF-300 support Class A circuits?
No. It supervises two Class B (Style B) circuits of dry-contact input devices. Use the MMF-300 for a Class A (Style D) circuit.
How many addresses does it use?
Two. Each of its two initiating device circuits reports to the panel as its own point at consecutive addresses.
What end-of-line resistor is used?
A 47K ohm end-of-line resistor terminates each Class B circuit.
Can it monitor two-wire smoke detectors?
No. It monitors dry-contact devices; the MMF-302 interface module is the Fire-Lite module for compatible two-wire 24 V smoke detectors.
