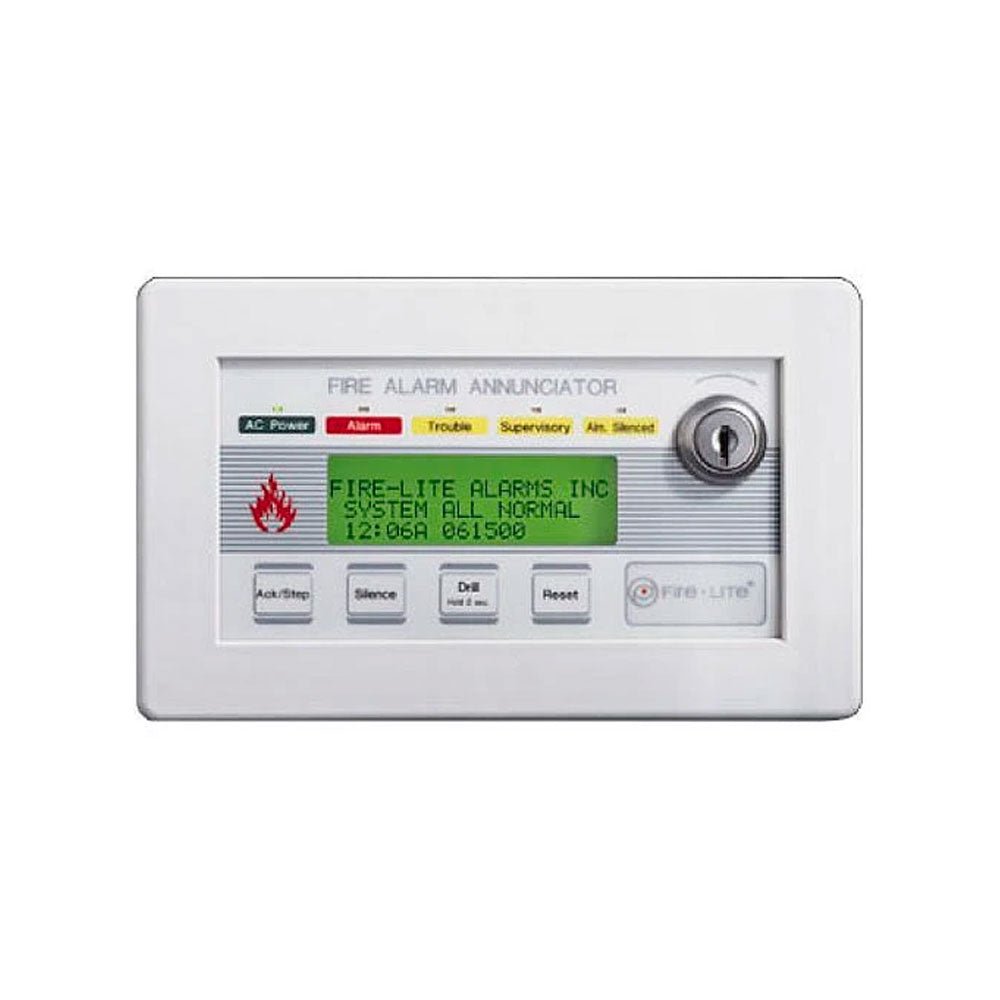

Fire-Lite LCD-80F — 80-character backlit LCD remote fire annunciator for MS-9200UD Series and MS-9600 Series control panels.
The LCD-80F mirrors everything the host panel display shows at a remote point, and adds the control switches a responding officer needs there, not at the panel. It connects to the panel EIA-485 terminal port and needs no programming, taking its text, device type identifiers and custom alpha labels from the panel.
- 80-character backlit display mimicking all host panel display information
- Switches for System Acknowledge, Signal Silence, Drill and Reset, with enable key
- Status LEDs for Power, Alarm, Trouble, Supervisory and Alarm Silenced, plus piezo
- Up to 32 units on one panel EIA-485 terminal port
- Six wires: four for EIA-485 in and return, two for 24 VDC power
- Semi-flush to a three-gang box at least 2.188 in. deep, or surface to an SBB-3
Can sit up to 6,000 ft. (1,828.8 m) from the panel; the 10103 box and SBB-3 backbox are ordered separately. LCD-80FC is the ULC sibling and not a drop-in equivalent: it is documented for MS-9600 Series panels and its switches are piezo silence and lamp test only.
Documents
FAQ
Which panels is the LCD-80F compatible with?
Fire-Lite documents it for the MS-9200UD Series and MS-9600 Series fire alarm control panels.
Does the LCD-80F need programming?
No. It connects to the panel's EIA-485 terminal port (TB7) and mimics the host panel display, so no programming is needed.
How many annunciators can be connected, and how far away?
Up to 32 LCD-80F units per panel. Each can be up to 6,000 ft (1,828.8 m) from the panel on the EIA-485 circuit.
What backbox does it need?
Semi-flush mount it to a three-gang box at least 2.188 in. deep (Fire-Lite 10103), or surface mount it on the SBB-3 surface backbox.
