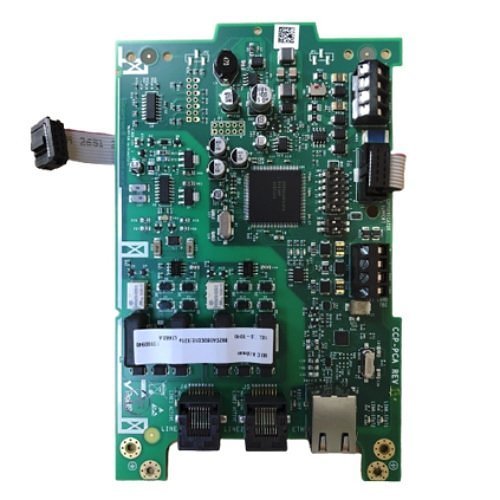

Fire-Lite IPOTS-COM is a dual technology POTS and IP communicator card for Fire-Lite control panels. It transmits system status such as alarms, troubles and AC loss to a central station over the public switched telephone network and/or IP, and allows remote programming or interrogation of the panel through AlarmNet.
On the ES-200X and ES-200XC the IPOTS-COM is pre-installed; it is also available as a replacement board. Setup uses a web-based GUI with VLAN and IP configuration options including QoS.
Specifications
| Type |
Dual technology POTS and IP communicator card |
| Reporting formats |
Ademco Contact ID, SIA DCS 8, SIA DCS 20 |
| Dialing |
Touch-Tone (default), programmable to rotary |
| Remote access |
AlarmNet remote programming and interrogation |
| Panels |
Pre-installed on ES-200X and ES-200XC |
| Installation document |
LS10184-000GE-E |
Features
- Reports alarms, troubles, AC loss and other system status to a central station
- Line seizure, on/off hook control and dial tone detection on POTS
- Web-based GUI for setup, with VLAN and QoS options
Related models
- ES-200X / ES-200XC: addressable panels with the IPOTS-COM pre-installed
- ES-200XI: version without the pre-installed communicator
Documents
FAQ
Which panels use the IPOTS-COM?
It comes pre-installed in the Fire-Lite ES-200X and ES-200XC (not the ES-200XI) and is also sold as a replacement board.
Which reporting formats does it support?
Ademco Contact ID, SIA DCS 8 and SIA DCS 20.
What does it do on the phone line?
It seizes the line (disconnecting premises phones), goes on and off hook, listens for dial tone, dials the central station (Touch-Tone by default, programmable to rotary) and listens for acknowledge and kissoff tones.
Where is the installation document?
Fire-Lite document LS10184-000GE-E covers the IPOTS-COM POTS/IP communicator.
