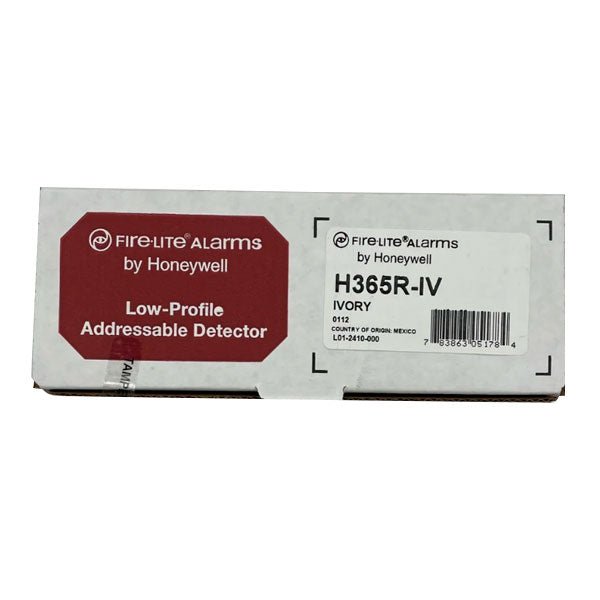

Fire-Lite H365R-IV — ivory addressable plug-in thermal detector, rate-of-rise with a 135 °F fixed element, supporting both LiteSpeed and CLIP.
A rate-of-rise detector alarms on how fast the air is heating rather than waiting for an absolute threshold, catching a fast-developing fire earlier, with the fixed element as the backstop for a slow build. The H365 Series replaces the H355 Series.
- Rate-of-rise at 15 °F (8.3 °C) per minute; defaults to 135 °F fixed plus rate-of-rise on panels without programmable heat

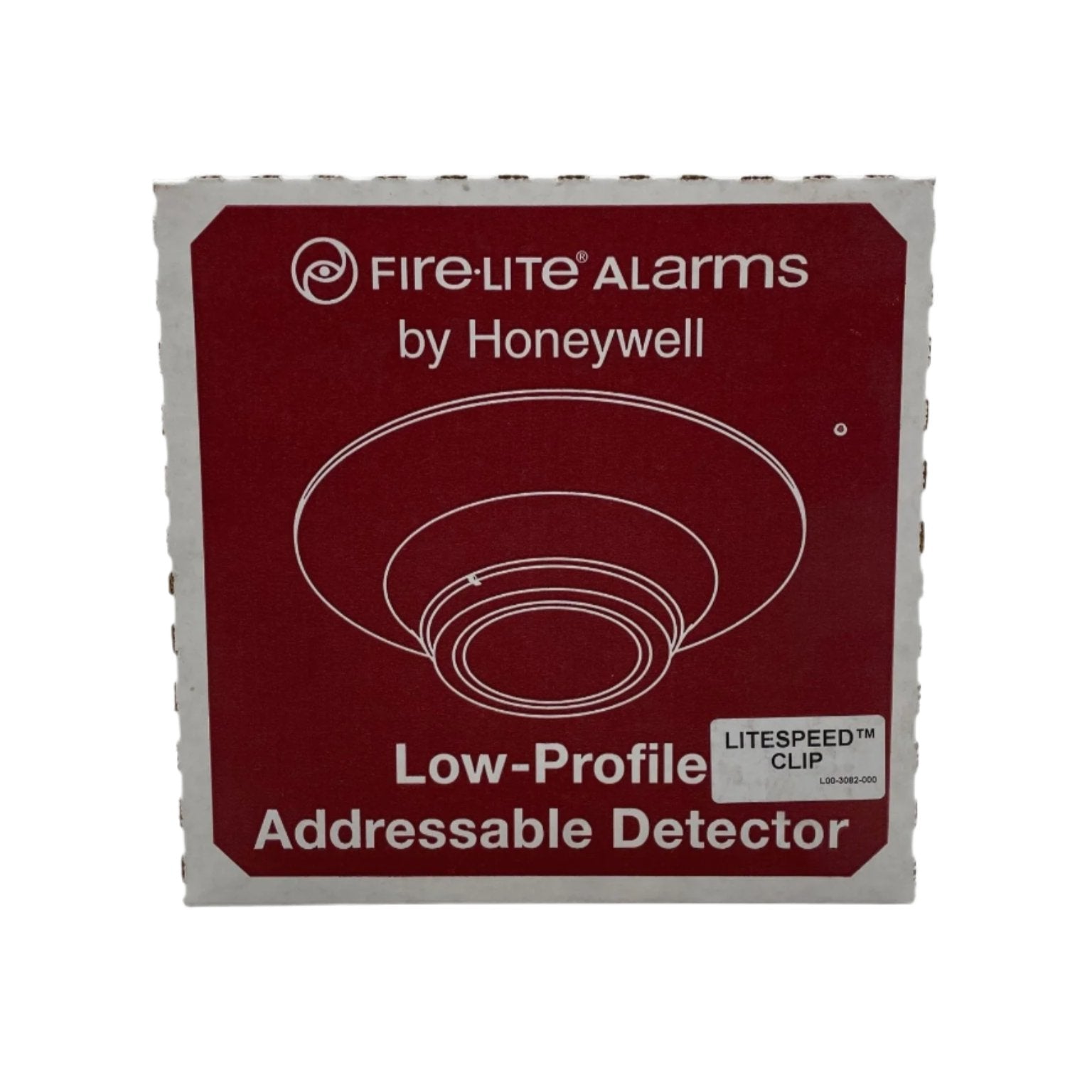

- The -IV suffix carries dual protocol as well as colour: LiteSpeed or CLIP, where the white H365R is LiteSpeed only
- 15 to 32 VDC peak; standby 200 µA at 24 VDC; maximum 4.5 mA at 24 VDC
- UL approved for 50 ft. center-to-center spacing, FM approved for 25 × 25 ft.
- Rotary decimal addressing to 159 addresses
- Designed to meet UL 268 7th Edition; UL/ULC file S2517
Three heads share this body and only the thermal behaviour differs: H365-IV is fixed at 135 °F with no rate-of-rise, H365HT-IV fixed at 190 °F. H365R is the white version, LiteSpeed only. An A, as in H365RA-IV, is the ULC version.
Documents
FAQ
Is a base included?

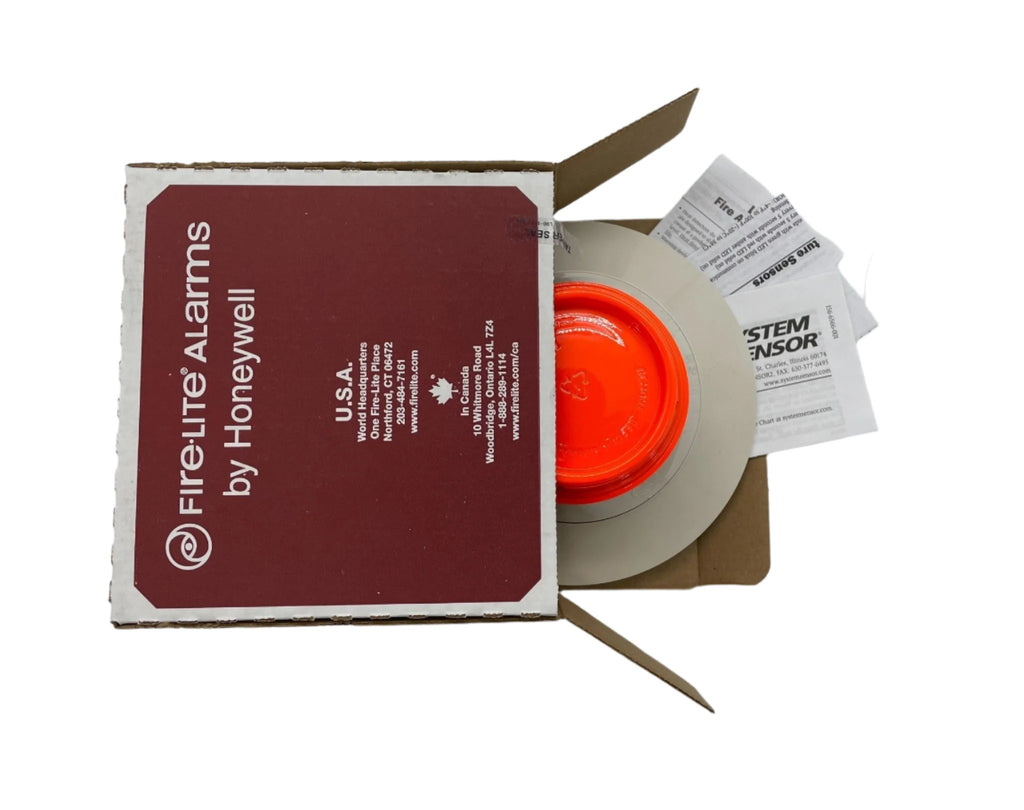

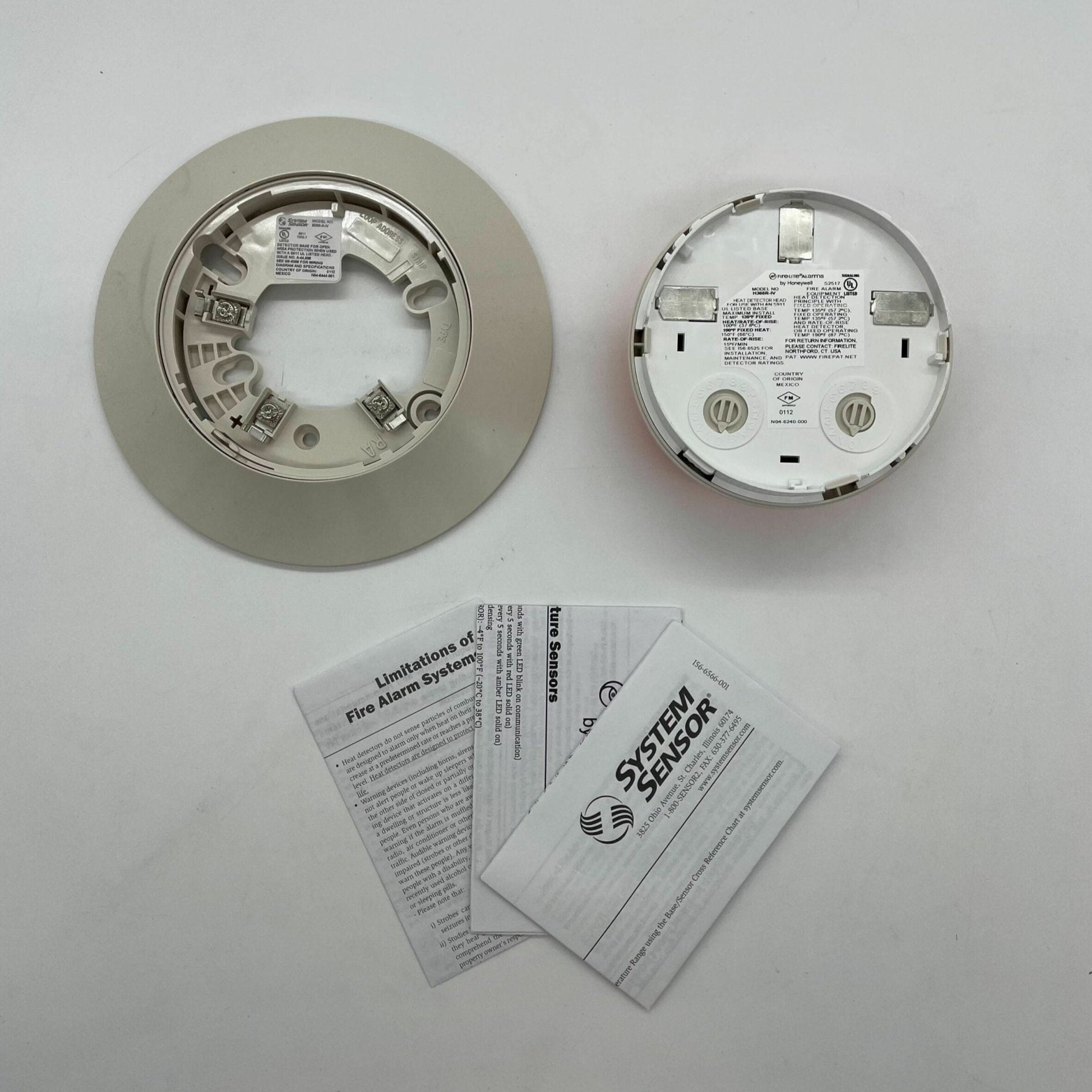

Yes. The data sheet lists the B300-6(A) flanged base as included. Other intelligent bases such as relay, isolator and sounder bases can be used instead.
Which protocols does the H365R-IV support?
The -IV model supports both LiteSpeed and CLIP. The white H365R is LiteSpeed only.
How does the rate-of-rise element work?
It alarms at a rise of 15 °F (8.3 °C) per minute, with a 135 °F fixed element as backup. On panels without programmable heat, it defaults to 135 °F fixed plus rate-of-rise.
What is the operating temperature range?
The H365 and H365R Series are rated for -4 °F to 100 °F (-20 °C to 38 °C).
