Fire-Lite FM900 — extension kit for the FM Series electromagnetic door holders.

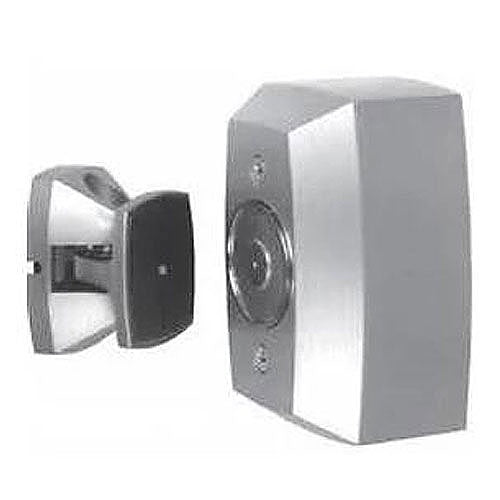

FM Series door holders hold fire and smoke barrier doors open until a remote smoke detector or other switching device removes power, at which point the magnet releases and a separate closing device shuts the door. A complete holder is an armature contact plate in the door and an electromagnet anchored behind it.
-
Fits the FM Series — FM980 surface floor mount, FM996 surface wall mount and FM998 flush wall mount, all at 12 VDC, 24 VAC or VDC and 120 VAC.
-
Holder rating — the FM Series holders are rated 25 to 40 pounds (11.3 kg) of holding power.
-
Release — fail-safe, so loss of power releases the door, with a positive release button to start the closing motion.
-
Documented as — Fire-Lite DF-51410 and its Notifier issue DN-5286 both list the FM900 only as Extension kit, with no dimension or contents.
Do not confuse it with FM900-Z, the 90° extension kit, or with the spacers FM900-50 at 1/2 in., FM900-75 at 3/4 in. and FM900-100 at 1 in. A separate closing device is required and is not part of any of them.
