ES-200XP — intelligent addressable fire alarm control panel with one signaling line circuit, 198-point capacity and an integrated CLSS Pathway Pro dual-SIM 5G LTE-M cellular communicator.

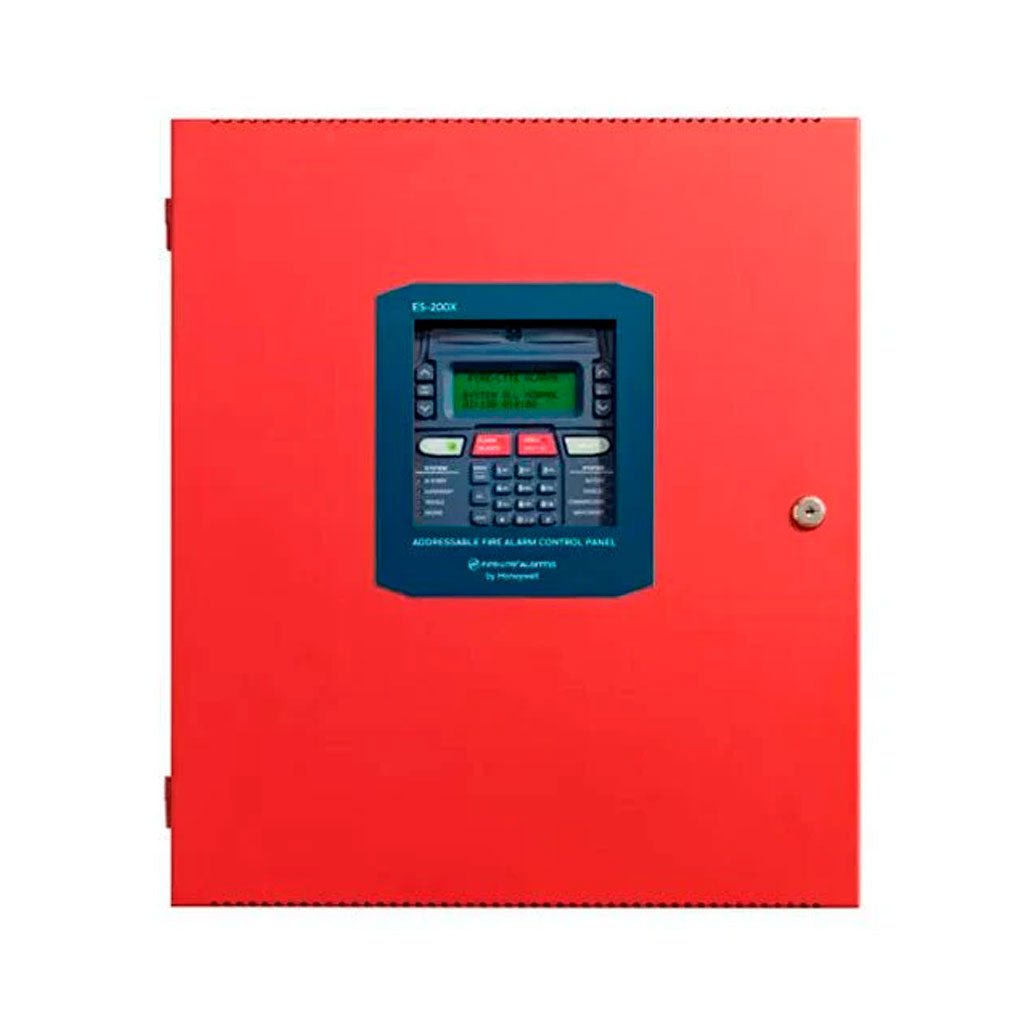

The ES-200X Series is a direct replacement for the MS-9200UDLS and programs just like Fire•Lite’s other addressable products. What sets the ES-200XP apart within the series is its communicator: an integrated CLSS Pathway Pro, a dual-SIM (AT&T/Verizon) 5G LTE-M communicator with optional IP connection. It transmits system status — alarms, troubles, AC loss and so on — to the central station over LTE CAT-M1 networks and serves as a bridge between the fire system and the CLSS Cloud, enabling cloud monitoring through Honeywell’s Connected Life Safety Services. As an integrated communicator it can typically transmit data faster than dial capture methods, and the IP communicator’s Internet monitoring capability meets requirements for backup communication. The single SLC (DCL) loop carries up to 198 addressable devices (99 detectors and 99 modules) and four independently programmable NACs can each be configured Class A or Class B. The ES-200XP ships as the main circuit board with display, pre-installed CLSS Pathway Pro communicator, chassis with transformer, dress panel, backbox with door, and a plastic bag containing screws, cables and key.
Specifications
| Communicator |
Integrated CLSS Pathway Pro; dual-SIM (AT&T/Verizon) 5G LTE-M, LTE CAT-M1, with optional IP connection |
| Intelligent signaling line circuits |
1; meets NFPA Class B and Class A requirements |
| Addressable device capacity |
198 (99 addressable detectors and 99 modules) |
| Programmable software zones |
99 |
| Annunciators |
16 (up to 8 per ANN-BUS) |
| SLC protocol |
LiteSpeed and CLIP |
| SLC wire run |
Up to 10,000 ft. (3,000 m) in LiteSpeed mode, twisted unshielded wire |
| Notification appliance circuits |
Terminal block provides connections for four NACs, Class B or Class A; special application power; power-limited, supervised |
| Maximum signaling current per NAC |
2.5 A special application; 250 mA regulated |
| Total 24 VDC system power |
2.7 A maximum, shared between all NAC circuits and the ANN-BUS |
| NAC end-of-line resistor |
4.7k ohm, ½ watt (P/N 71252 UL listed) for Class B NAC; system capable of 1.9k–22k ohm ELR range |
| Relays |
Two programmable Form-C relays and one fixed trouble relay; 2.0 A @ 30 VDC (resistive), 0.5 A @ 30 VAC (resistive); non-power-limited, non-supervised |
| AC power |
120 or 240 VAC, 50/60 Hz, 3.25 A, auto-sensing (no switch required); minimum 14 AWG (2.00 mm²) with 600 V insulation; non-power-limited, supervised |
| Battery |
Two 12 V 18 AH lead-acid; charger capacity 7–18 AH; cabinet holds a maximum of two 18 AH batteries |
| Display |
Integral 80-character LCD with backlighting |
| History file |
1,000 events |
| Backbox |
19.00" (48.26 cm) H × 16.65" (42.29 cm) W × 5.25" (13.34 cm) D |
| Door |
19.26" (48.92 cm) H × 16.82" (42.73 cm) W × 0.72" (1.82 cm) D |
| Shipping weight |
26.9 lbs. (12.20 kg) |
| Operating environment |
0–49°C / 32–120°F, relative humidity 93% ± 2% RH (noncondensing) at 32°C ± 2°C (90°F ± 3°F) |
| Standards |
Listed to UL Standard 864, 10th edition |
| Seismic |
IBC 2021, IBC 2018, IBC 2015, IBC 2012, IBC 2009; CBC 2019 |
| Agency listings (ES-200XP) |
UL: S624; ETL: 5017286; CSFM 7165-0075:0511; FDNY COA #2023-TMCOAP-002354-CERT |
Installation notes
-
No IPOTS-COM on this model: the pre-installed IPOTS-COM and the optional AlarmNet cellular communicators are for the ES-200X and ES-200XC only. On the ES-200XP the communicator is the integrated CLSS Pathway Pro.
-
Programming path: ethernet upload/download using the IPOTS-COM is an ES-200X / ES-200XC capability. Plan on the panel USB port and USB cable for uploading and downloading programming, history, walk-test data, current status and system voltages on the ES-200XP. Offline programming with FS-Tools requires an ethernet connection.
-
Power budget: 2.5 A is the per-circuit maximum. Maximum or total 24 VDC system power shared between all NAC circuits and the ANN-BUS is 2.7 A — four circuits do not give you four times 2.5 A. The PWRMOD24 power expander module increases alarm power output to 6 amps.
-
Batteries: the cabinet holds a maximum of two 18 AH batteries and the onboard charger covers 7–18 AH. Larger batteries require a CHG-75 or CHG-120F and an external BB-26 or BB-55F.
-
Seismic installations: use SEISKIT-COMMENC, which includes a battery bracket for two 7, 12 or 18 AH batteries.
-
Legacy devices: 300 Series devices such as CP300/CP350, SD300(T)/SD350(T), M300, M301, M302, C304 and BG-10LX are not compatible with LiteSpeed polling; if any are on the SLC, polling must be set to standard CLIP protocol.
Related models
-
ES-200X — pre-installed IPOTS-COM dual technology (POTS and IP) communicator instead of the CLSS Pathway Pro; no dress panel listed in the carton.
-
ES-200XC — pre-installed IPOTS-COM, dress panel included.
-
ES-200XI — no communicator fitted; dress panel included.
-
MS-9200UDLS — the legacy panel the ES-200X Series directly replaces.
Specifications taken from the Fire•Lite Alarms data sheet "ES-200X Series Intelligent Addressable Fire Alarm Control Panels," document DF-60957:F (5/28/2025). Manufacturer specifications are subject to change without notice.
