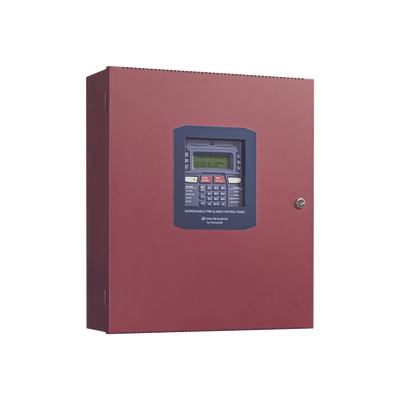

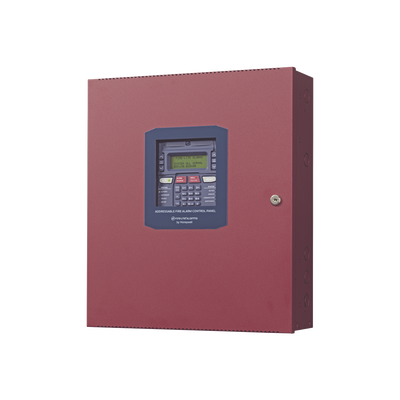

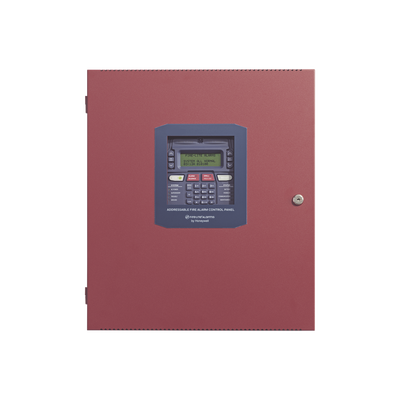

Fire-Lite ES-200XI — intelligent addressable fire alarm control panel with one signalling line circuit and 198 points, supplied without a preinstalled central station communicator.
That omission is what separates ES-200XI from the rest of the series. Where ES-200X and ES-200XC ship with an IPOTS-COM dual technology board and ES-200XP with a CLSS Pathway Pro cellular unit, ES-200XI arrives as board, display, chassis, transformer and backbox only. The series replaces the MS-9200UDLS.
- 198 addressable devices on one SLC: 99 detectors and 99 modules
- LiteSpeed and CLIP protocols; SLC runs to 10,000 ft in LiteSpeed mode
- Four programmable Class A or Class B NAC circuits, 2.5 A special application each
- 99 software zones and a 1,000-event history log
- Two programmable Form-C relays plus a fixed trouble relay, 2.0 A at 30 V DC
- 120 or 240 V AC auto-sensing, 3.25 A; two 12 V 18 Ah standby batteries
Check the suffix against the quotation. ES-200X and ES-200XC include the IPOTS-COM board and ES-200XP the dual SIM CLSS Pathway Pro. An ES-200XI needs an external communicator to report off site.
