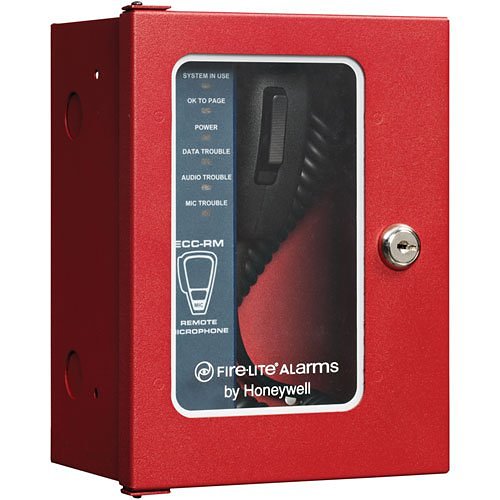

Fire-Lite ECC-RM is an optional remote microphone for the Fire-Lite ECC-50/100(E) Emergency Command Center. It is one of the external remote consoles that extend the operator interface to other locations in a building. When its push-to-talk switch is pressed, it broadcasts an ALL CALL page over the speaker circuits.
The ECC-RM needs a data bus connection, an audio riser connection and 24 V DC operator interface power from the ECC-50/100 main console. Up to eight ECC-RM units can be connected to one ECC-50/100(E).
Features
- Built-in microphone with push-to-talk for ALL CALL paging
- Supports Class A (Style Z) and Class B (Style Y) wiring
- Modular design for system expansion
- Keyed lock on the cabinet, with an optional thumb lock, to limit access to qualified personnel
- Simple user interface
- Up to eight ECC-RM units per ECC-50/100(E) primary console
Specifications
| Product type |
Remote microphone |
| Connection |
Wired |
| Controls |
Push-to-talk |
| Color |
Red |
| Height |
8.3" |
| Width |
6.1" |
| Depth |
4.3" |
| Power |
24 V DC from the ECC-50/100 main console |
Documents
FAQ
What connections does the ECC-RM need?
An external data bus connection, an external audio riser connection and 24 VDC non-resettable operator interface power, all from the ECC-50/100(E) main console.
How many ECC-RMs can be connected?
Up to eight ECC-RMs per ECC-50/100(E) primary operating console. In total, up to eight external remote consoles (ECC-LOC, ECC-RPU and ECC-RM) can be combined.
What indicators are visible with the door closed?
System In Use, OK to Page and AC Power (green), and Data Trouble, Audio Trouble and Microphone Trouble (yellow).
Is the cabinet included?
Yes. The ECC-RM is housed in its own cabinet, 8.3 in. high x 6.08 in. wide x 4.34 in. deep, with a keyed lock or optional thumb lock.
