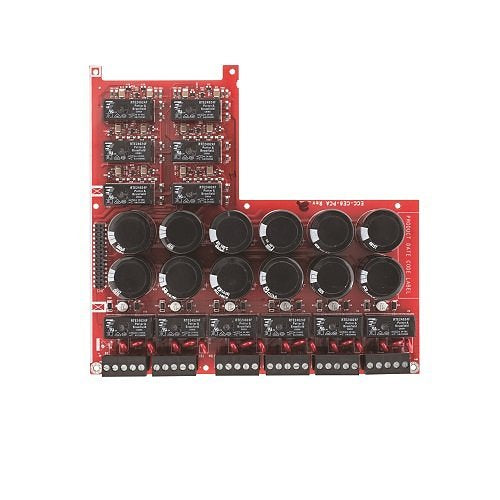

Fire-Lite ECC-CE6 is a circuit expander module for the ECC-50/100 Emergency Command Center. It adds six audio circuits, three primary and three secondary, and mounts directly onto the ECC-50/100 main control board on supplied standoffs, plugging into connector P1.
Speaker circuits can be wired Class A (Style Z) or Class B (Style Y) and are configured through the web-based programming utility. All circuits are supervised and power-limited. The secondary circuits need the optional ECC-50W-25/70V secondary amplifier, and 70 V systems need the ECC-XRM-70V transformer.
Specifications
| Host panel |
Fire-Lite ECC-50/100 Emergency Command Center |
| Circuits added |
Six: three primary, three secondary |
| Wiring |
Class A (Style Z) or Class B (Style Y) |
| Class B ELR |
15K, 1 watt (ELR-15K) |
| Circuit type |
Supervised, power-limited (Class 2) |
| System voltage |
25 V, or 70 V with ECC-XRM-70V transformer |
Installation notes
- Turn off AC power and disconnect batteries before installing
- Mount on the 1-5/8 in. standoffs supplied, insert header JH1 into P1 on the main board and secure with eight #4-40 screws
- In a 70 V system, install the ECC-XRM-70V transformer bracket first
- Install and wire in accordance with NFPA 72 and local ordinances
Related models
- ECC-CE4: four-circuit expander
- ECC-50/100: Emergency Command Center
- ECC-XRM-70V: 70 V transformer
FAQ
What panel does the ECC-CE6 work with?
It mounts onto the main control board of the Fire-Lite ECC-50/100 Emergency Command Center.
How many circuits does it add?
Six audio circuits: three primary and three secondary. Using the secondary circuits requires the optional ECC-50W-25/70V secondary amplifier.
Can it be used in a 70 V system?
Yes, but in a 70 V system it must be mounted together with the ECC-XRM-70V transformer.
Class A or Class B?
Speakers can be wired Class A (Style Z) or Class B (Style Y). Class B circuits need a 15K, 1 watt ELR (P/N ELR-15K).
