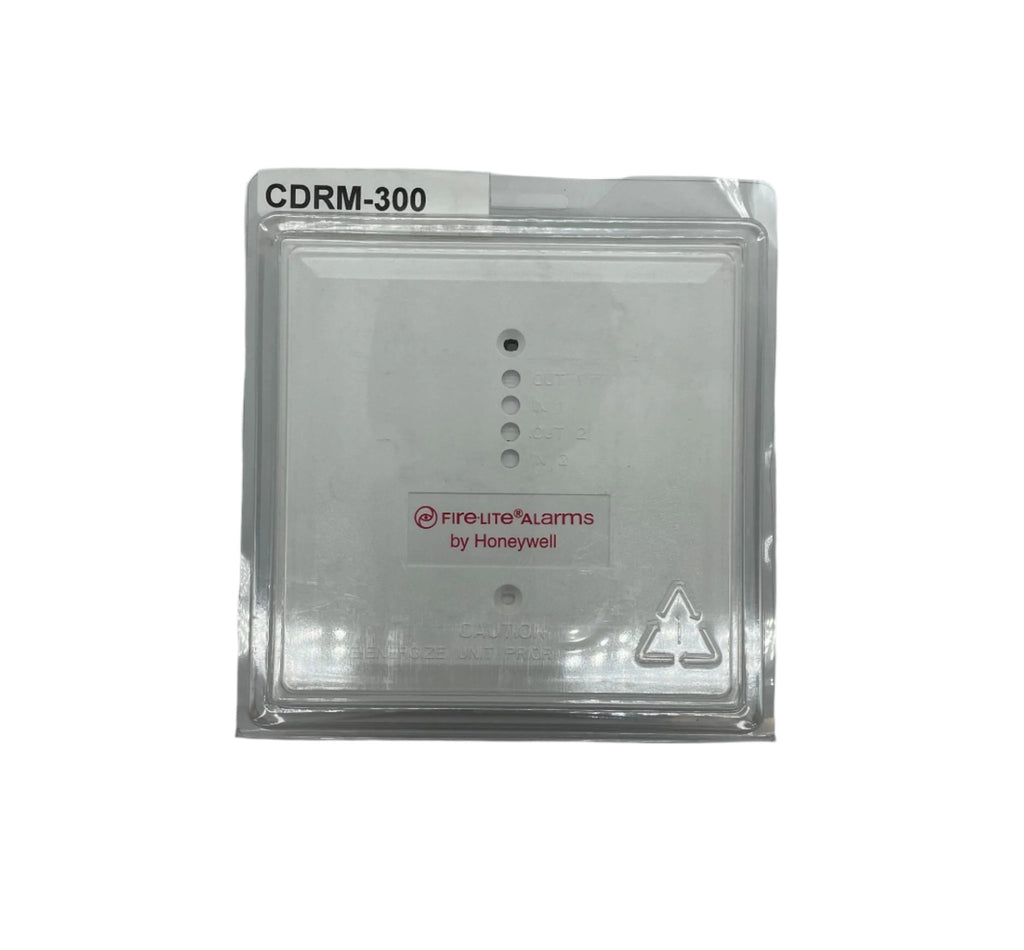

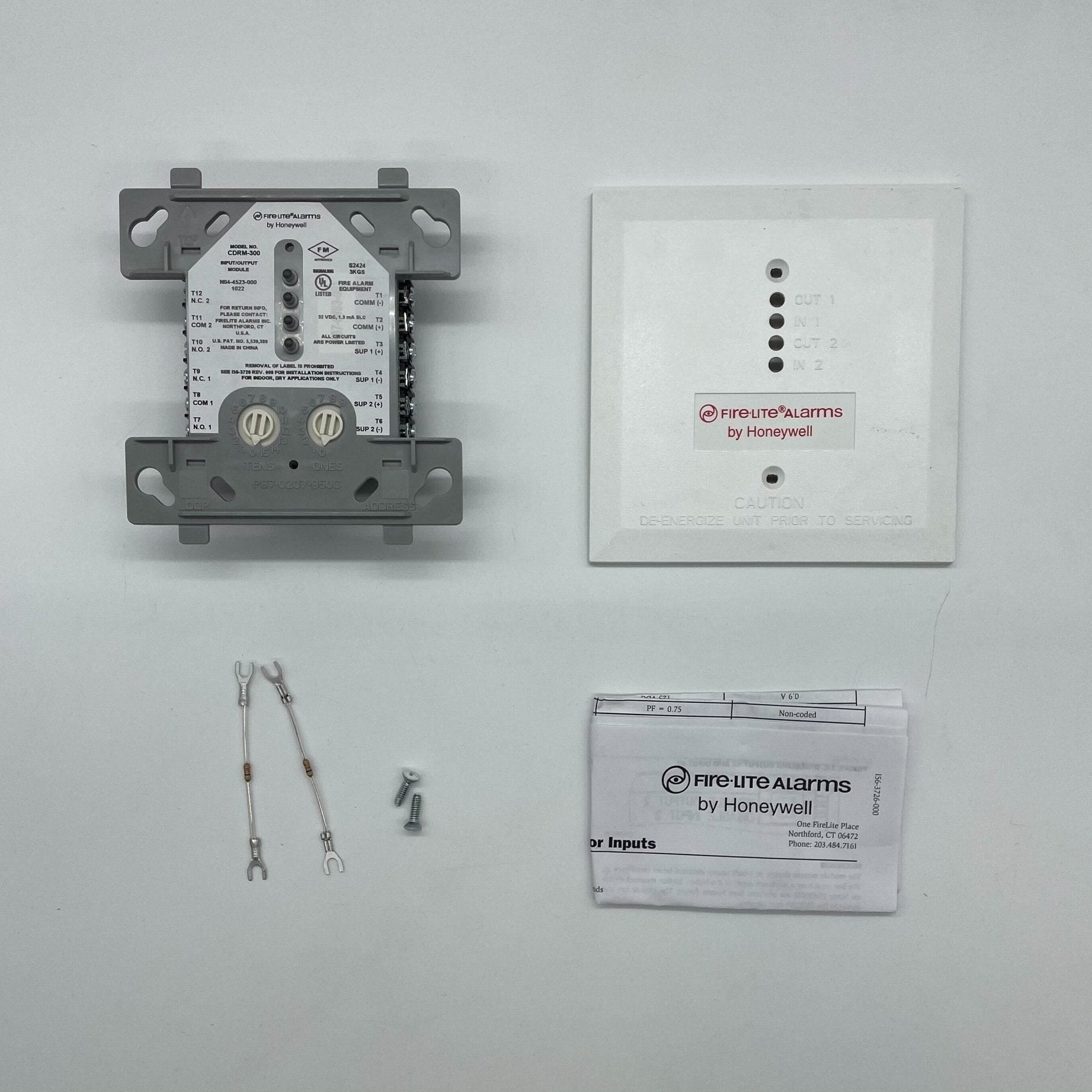

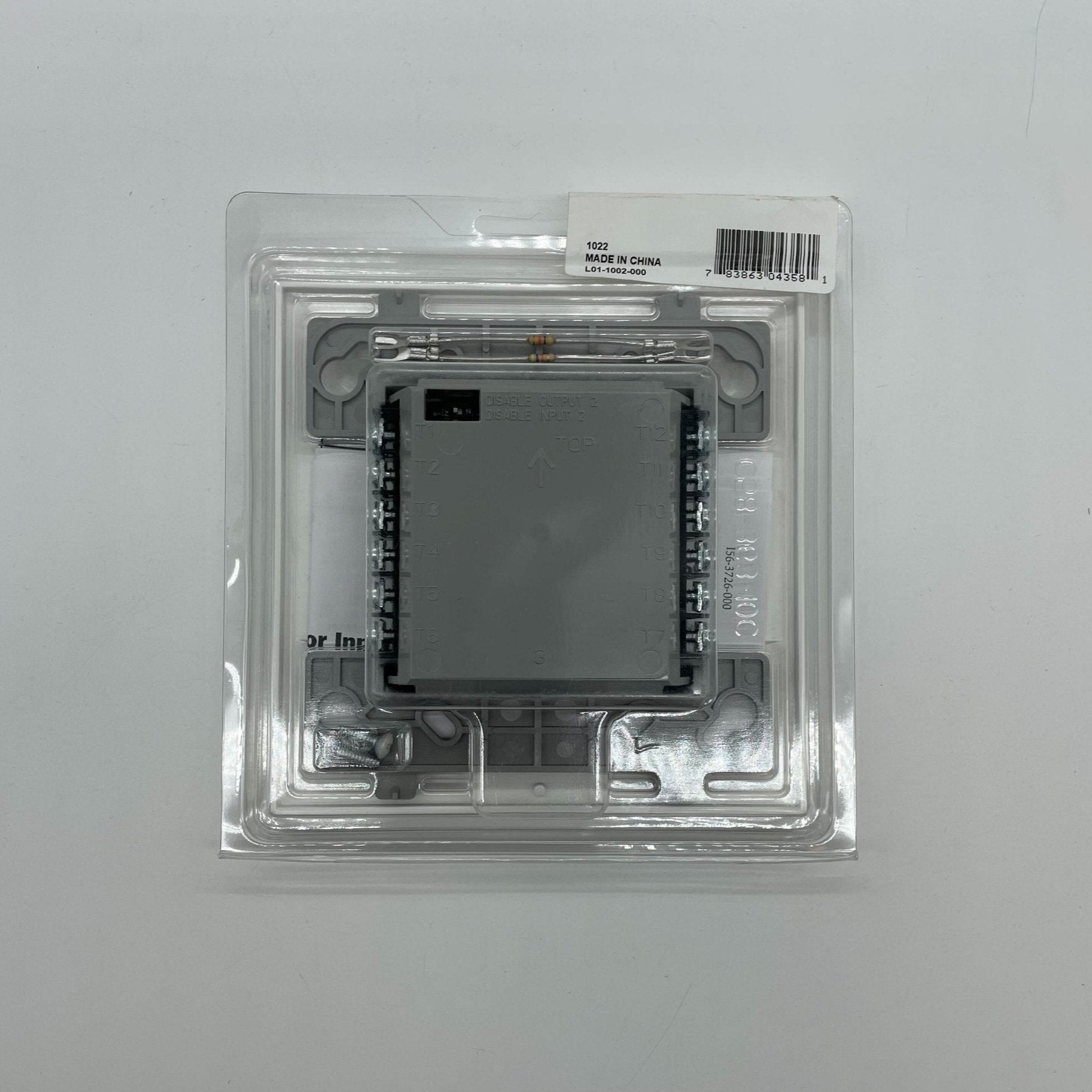

Fire-Lite CDRM-300 Addressable Dual Relay/Monitor Module - Two Individual Relay Control And Two Class B Monitor Circuits
CDRM-300: Dual RelayMonitor Module, 15 to 32VDC, 24mA, 32 to 120˚F, 4.675x4.275x1.4in
CDRM-300(A) dual relay/monitor modules are designed for use with Fire-Lite® fire alarm control panels (FACPs). These addressable modules are intended for use in intelligent, 2-wire loops. They includes two individual relay control modules and two Class B monitor modules. Each relay output is intended for Form C switching applications, which do not require wiring supervision for the load circuit. Each monitor input provides an interface between a FACP and one or more normally (NO) contact device.
Key Features
- Powered by SLC loop directly, with no external power required
- Integral LEDs blink red during normal operation and turn a steady & red to & indicate alarm
- Compatible with LiteSpeed™ and CLIP Systems
- Addressable-analog communication
- Sleek, low-profile design
- 2-wire SLC connections
- Addresses can be viewed and changed without the need for electronic & programmers
