Fire-Lite BG-12LOB — dual-action manual pull station certified for outdoor use, supplied with an outdoor-rated backbox and sealing gasket.

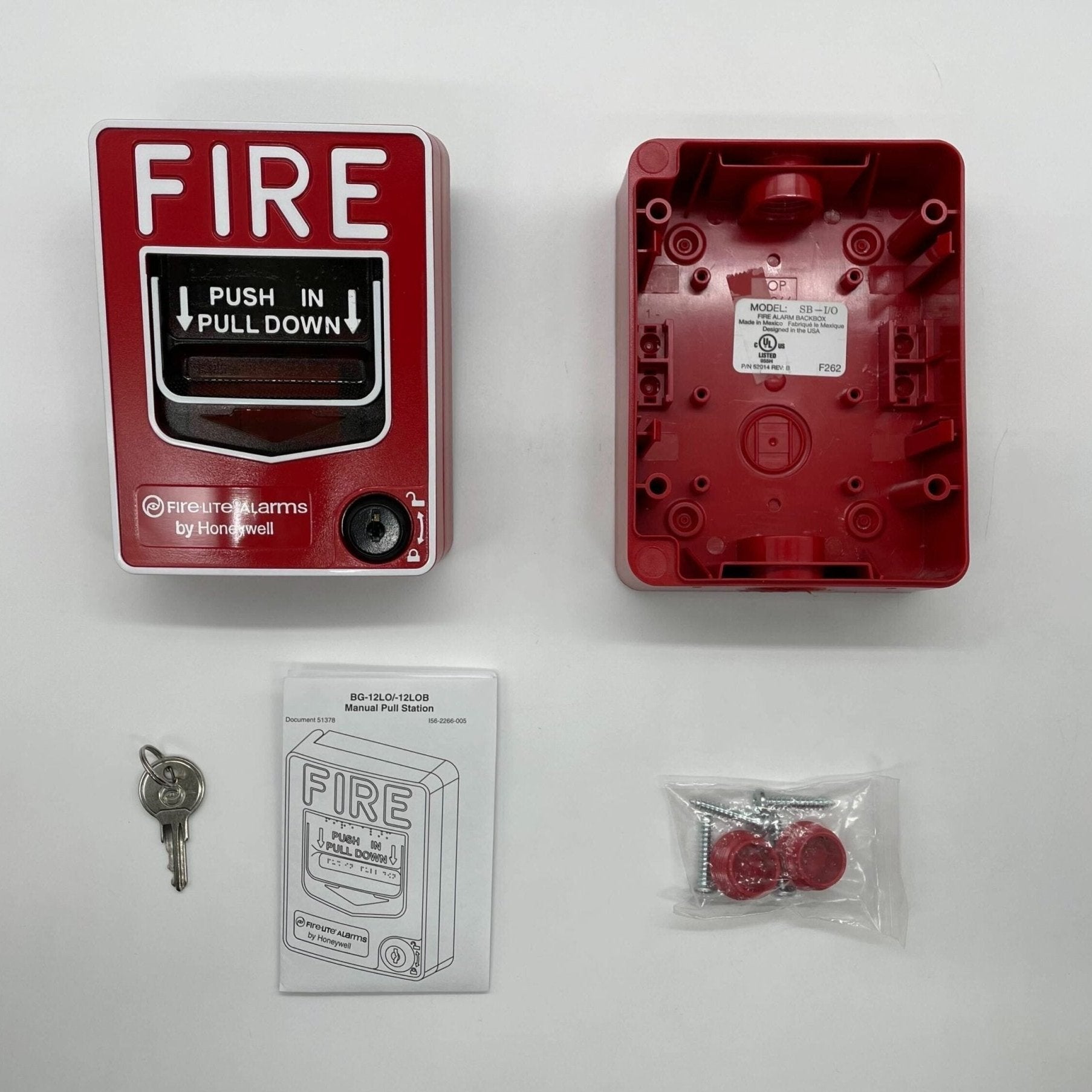

Fire-Lite decodes its own suffixes: BG-12 is the dual-action station with a hex lock; BG-12L is the same with a key lock; BG-12LOB is a BG-12L with the outdoor certification, the backbox and the gasket included. The box supplied is the plastic SB-I/O, so this is a complete assembly.
- Push in then pull down; the handle latches and ACTIVATED appears in yellow
- Normally open, gold-plated switch contacts rated 0.25 A at 30 VAC or VDC
- Four-position terminal strip with captive 8/32 screws, accepts up to 12 AWG
- Station 5.5 " × 4.121 " × 1.39 "; SB-I/O backbox 5.601 × 4.222 × 1.439 "
- Meets the ADA 5 lb maximum pull force and UL 38; Braille on the handle
- C(UL)US S711, FM approved, CSFM 7150-0075:184, MEA 67-02-E
Watch for BG-12LO, which carries the same outdoor certification but ships without the backbox. BG-12L is the indoor key-lock station, BG-12LA adds auxiliary contacts, and the addressable equivalent is the BG-12LX.
Documents
FAQ
What are the switch contacts rated for?
The BG-12 Series switch contacts are normally open, gold plated and rated 0.25 A at 30 VAC or VDC.
How is the station reset?
BG-12 Series stations are reset with a key or hex; after operation they cannot be restored to normal except by using the key or hex.
Can a BG-12 Series station be semi-flush mounted?
Yes. BG-12 Series stations can be surface mounted on an SB-10 or SB-I/O box, or semi-flush mounted to a single-gang, double-gang or 4 in. square box, with an optional BG12TR trim ring.
Which panels is it for?
BG-12 Series stations are non-coded and provide a normally open alarm initiating input to conventional fire alarm control panels.
