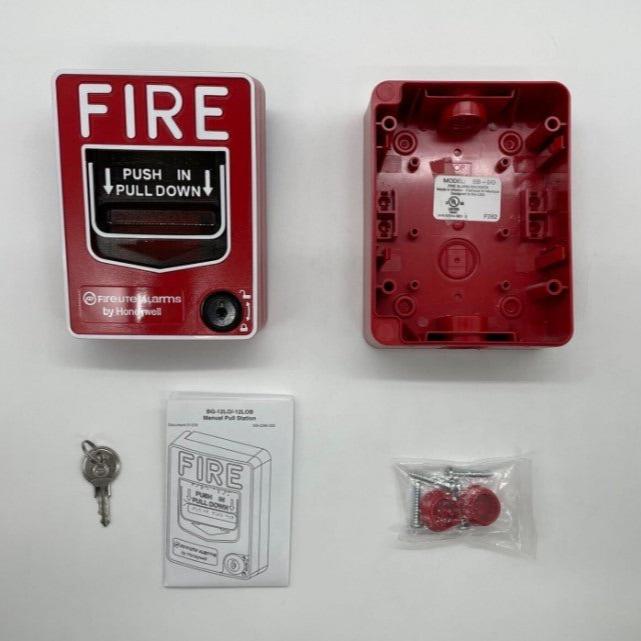

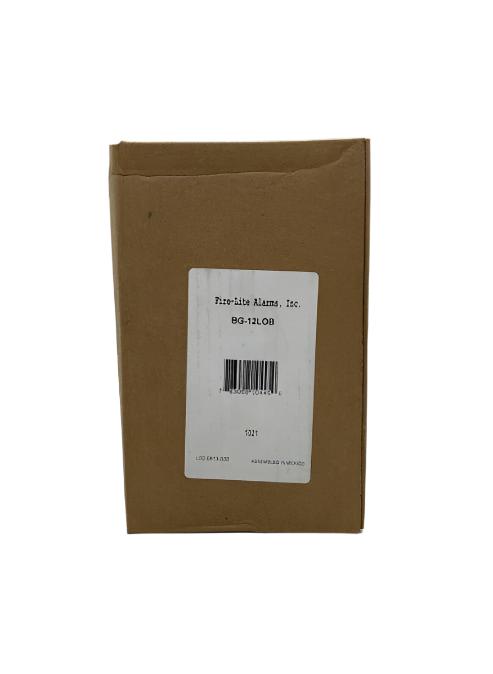

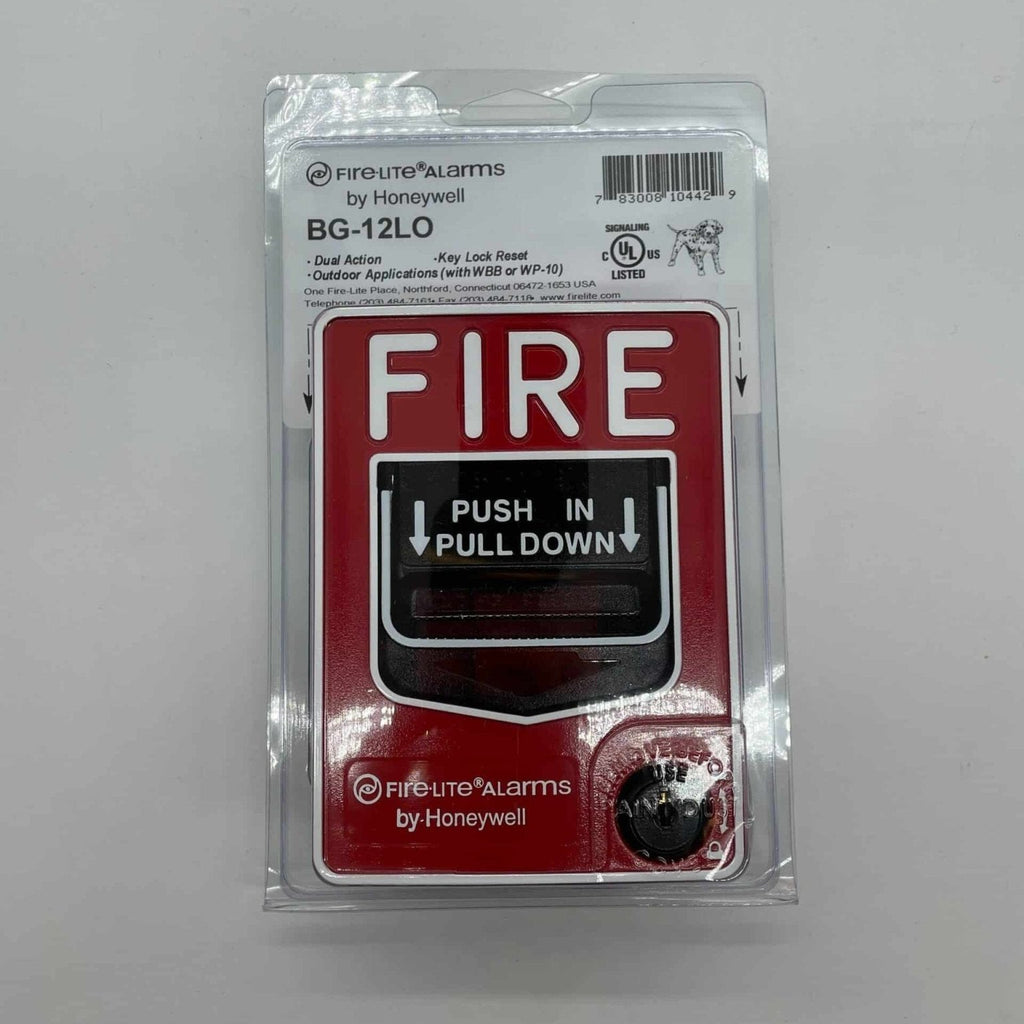

Fire-Lite BG-12LO is a dual-action, non-coded manual fire alarm pull station with a key-lock reset and approval for outdoor use. It gives a fire alarm control panel a normally open manual alarm initiating input and is supplied without a backbox. Installers use it at building exits and other exterior locations; the BG-12LOB is the same station supplied with the outdoor backbox and sealing gasket.
Specifications
| Action |
Dual action (push in, pull down); handle latches down and shows ACTIVATED in yellow |
| Switch |
Normally open, gold-plated contacts, 0.25 A at 30 VAC or VDC |
| Reset |
Key lock, quarter turn; closing the cover resets the switch |
| Terminals |
Four-position strip, field wiring up to 12 AWG |
| Housing |
Red polycarbonate, 5.5 in. H x 4.121 in. W x 1.39 in. D |
| Standards |
UL 38; C(UL)US S711, FM approved, CSFM 7150-0075:184, MEA 67-02-E |
| Pull force |
Meets ADA 5 lb maximum |
Features
- Braille text and directional arrows on the operating handle
- Can be opened for inspection without initiating an alarm

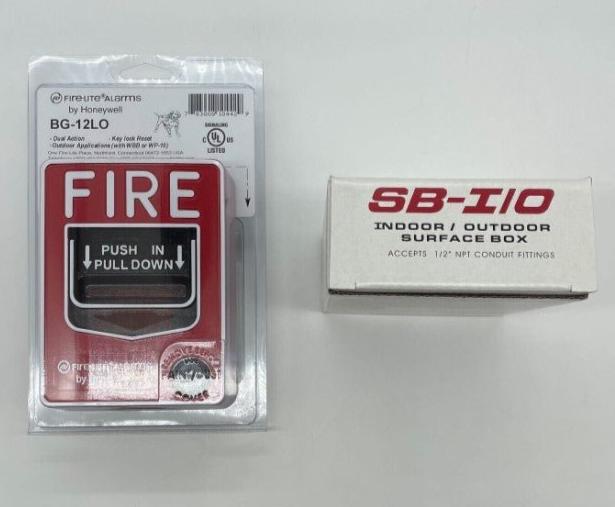

- Surface mount with SB-10 or SB-I/O backbox, or semi-flush on a single-gang, double-gang or 4 in. square box
- Optional BG12TR trim ring for semi-flush mounting
- Key set of two (17003) included with key-lock models
Documents
FAQ
Is a backbox included with the BG-12LO?
No. For outdoor use Fire-Lite requires an outdoor-approved backbox such as the WBB; the BG-12LO with a WBB is the BG-12LOB.

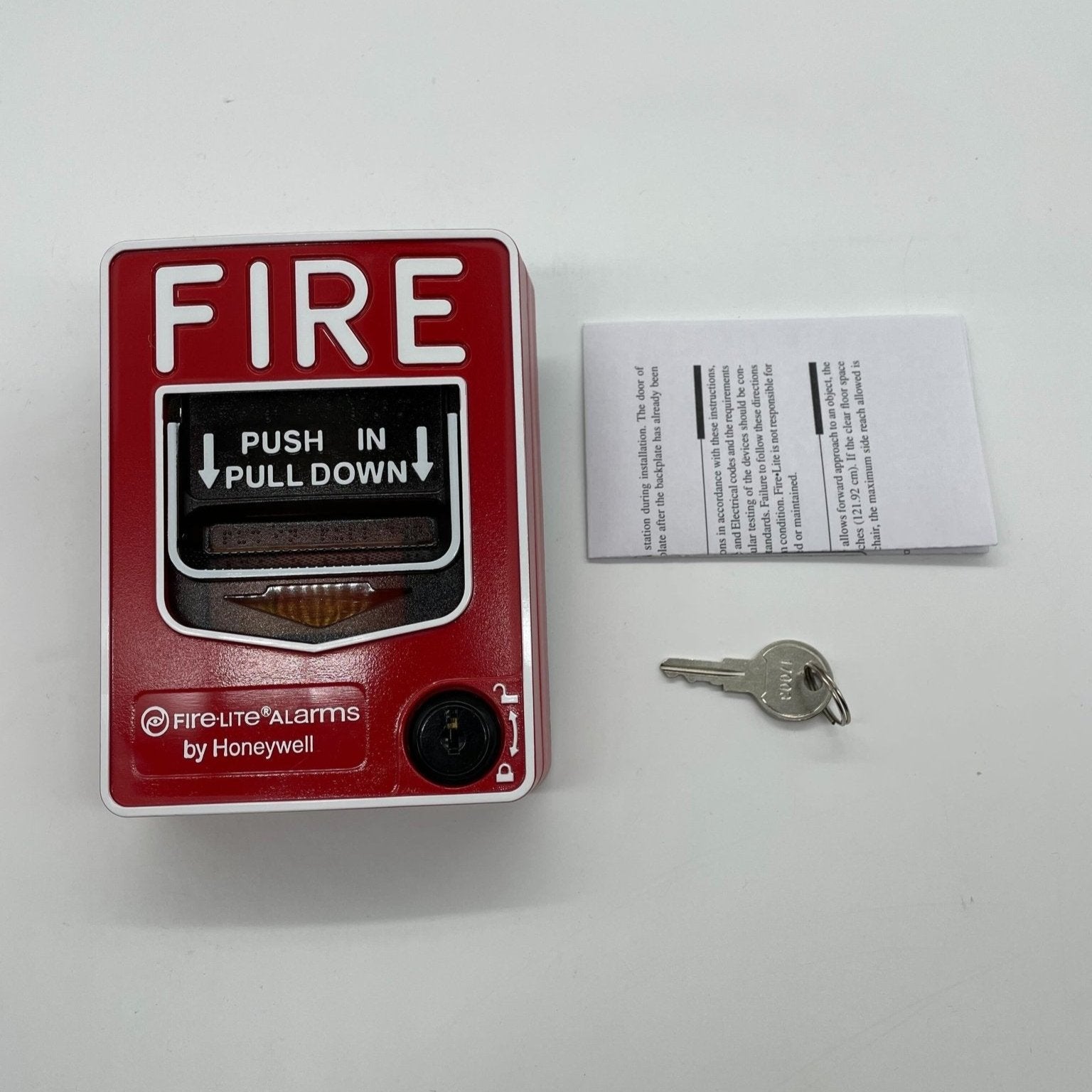

How is the station reset?
Insert the key, turn it a quarter turn and open the front cover; the handle springs back, and closing the cover resets the alarm switch.
Can it be opened without causing an alarm?
Yes. The station can be opened for inspection and maintenance without initiating an alarm.
What does it connect to?
It gives a fire alarm control panel one normally open alarm input. The four-position terminal strip accepts field wiring up to 12 AWG.
