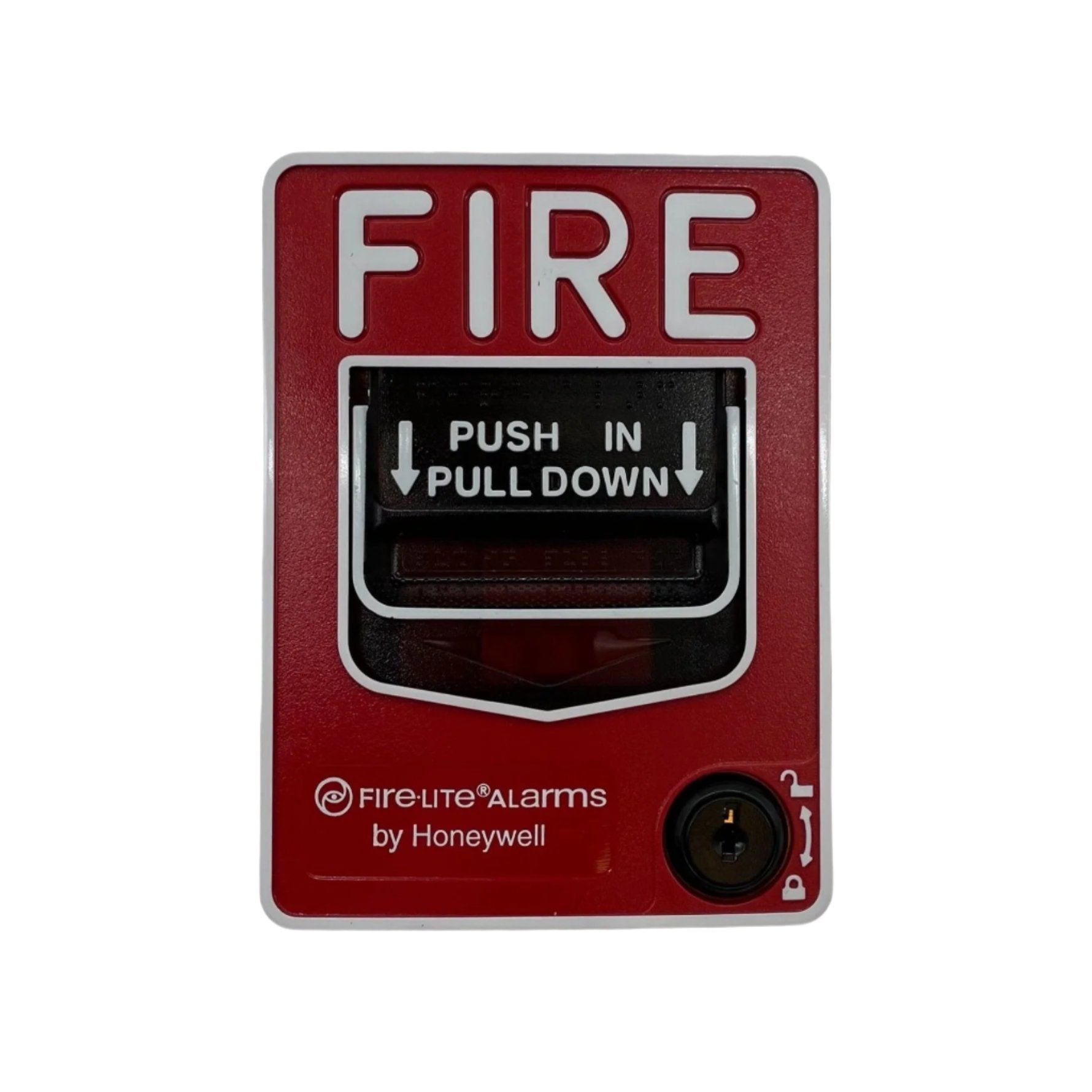

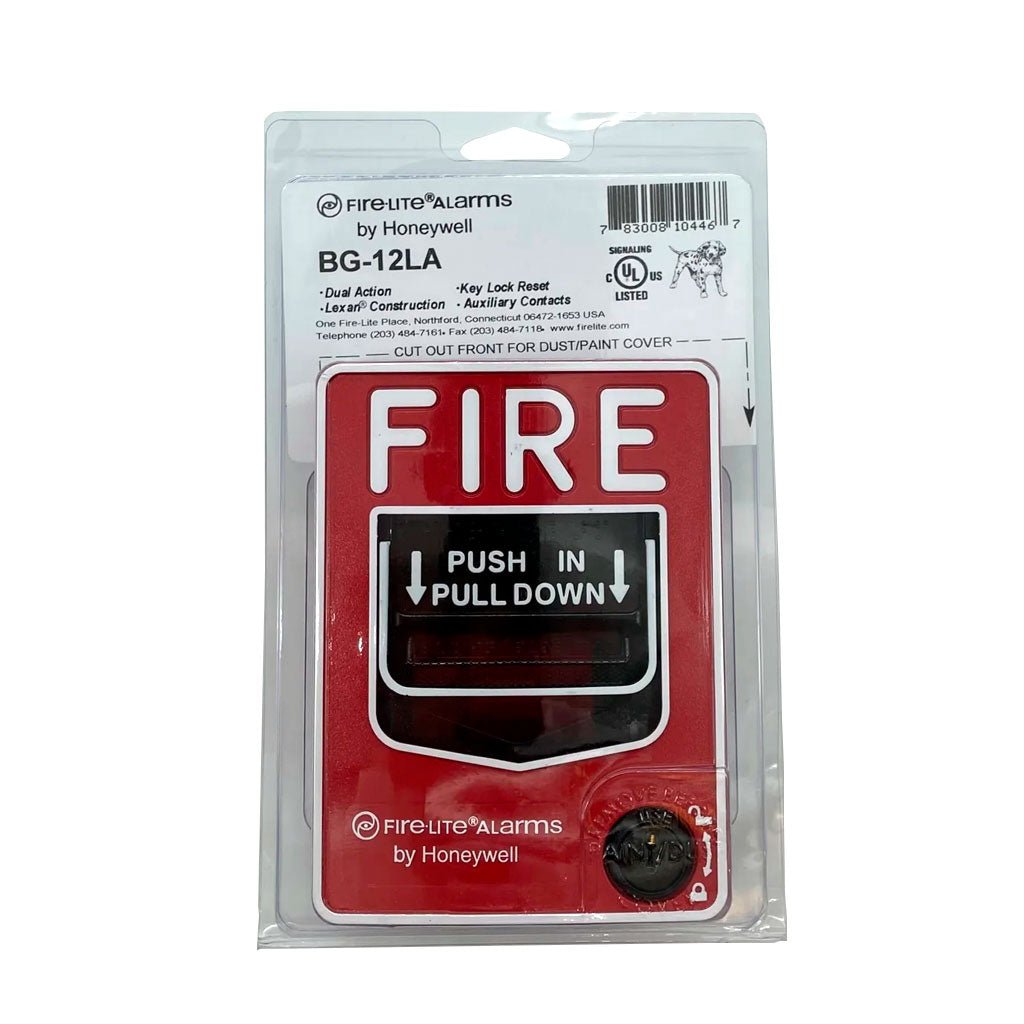

Fire-Lite BG-12LA — non-coded dual-action manual pull station in red polycarbonate, with key-lock reset, screw terminals and auxiliary contacts.
The suffix reads off the Fire-Lite product line block: BG-12 is the dual-action station with a normally open switch, screw terminals and a hex lock, BG-12L swaps in a key lock, and BG-12LA is BG-12L with auxiliary contacts. Push in then pull down; the handle latches as a visible flag.

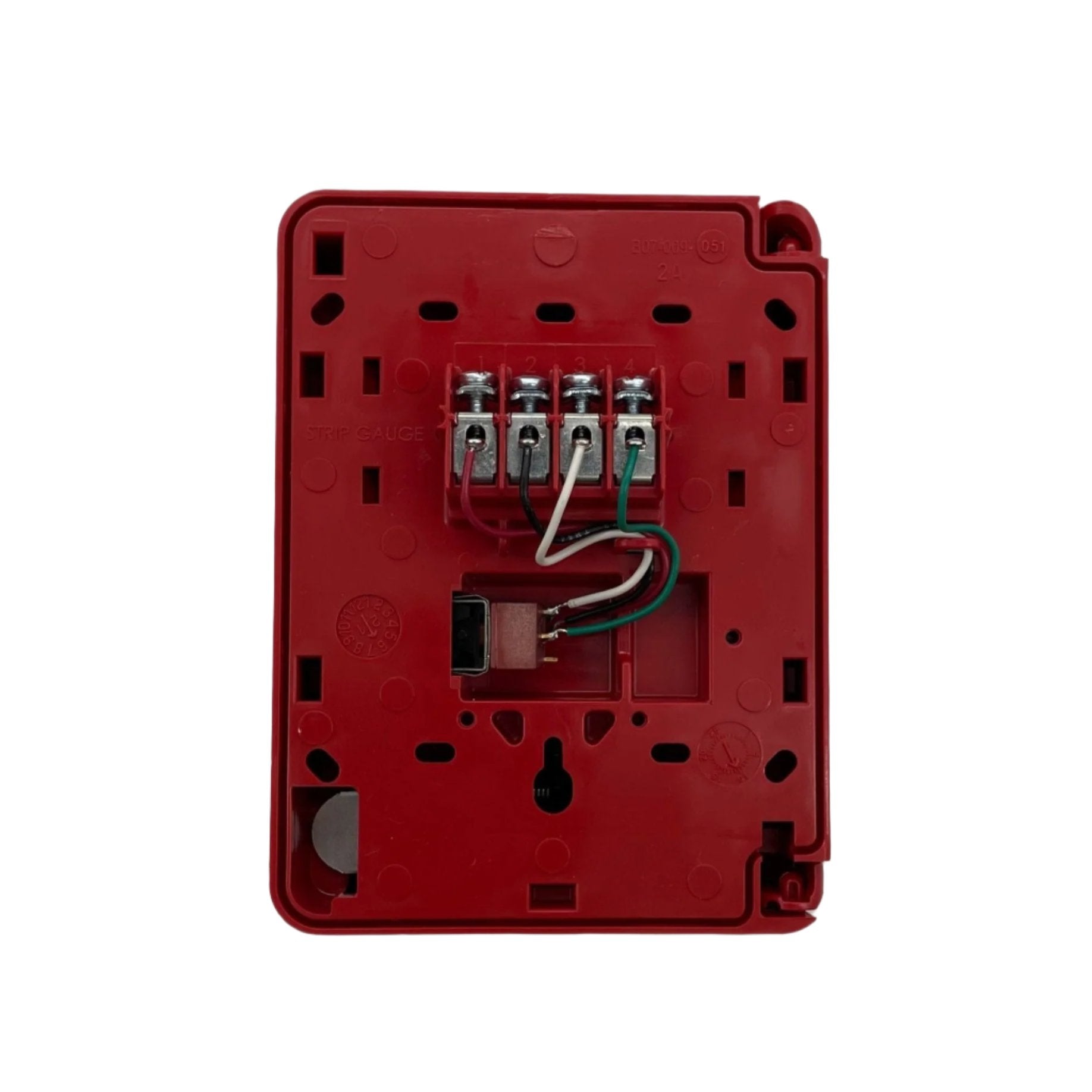

- Initiating circuit, terminals 1 and 2: 0.25 A at 30 V AC or DC, gold-plated contacts
- Auxiliary contact circuit, terminals 3 and 4: 3 A at 30 V AC or DC

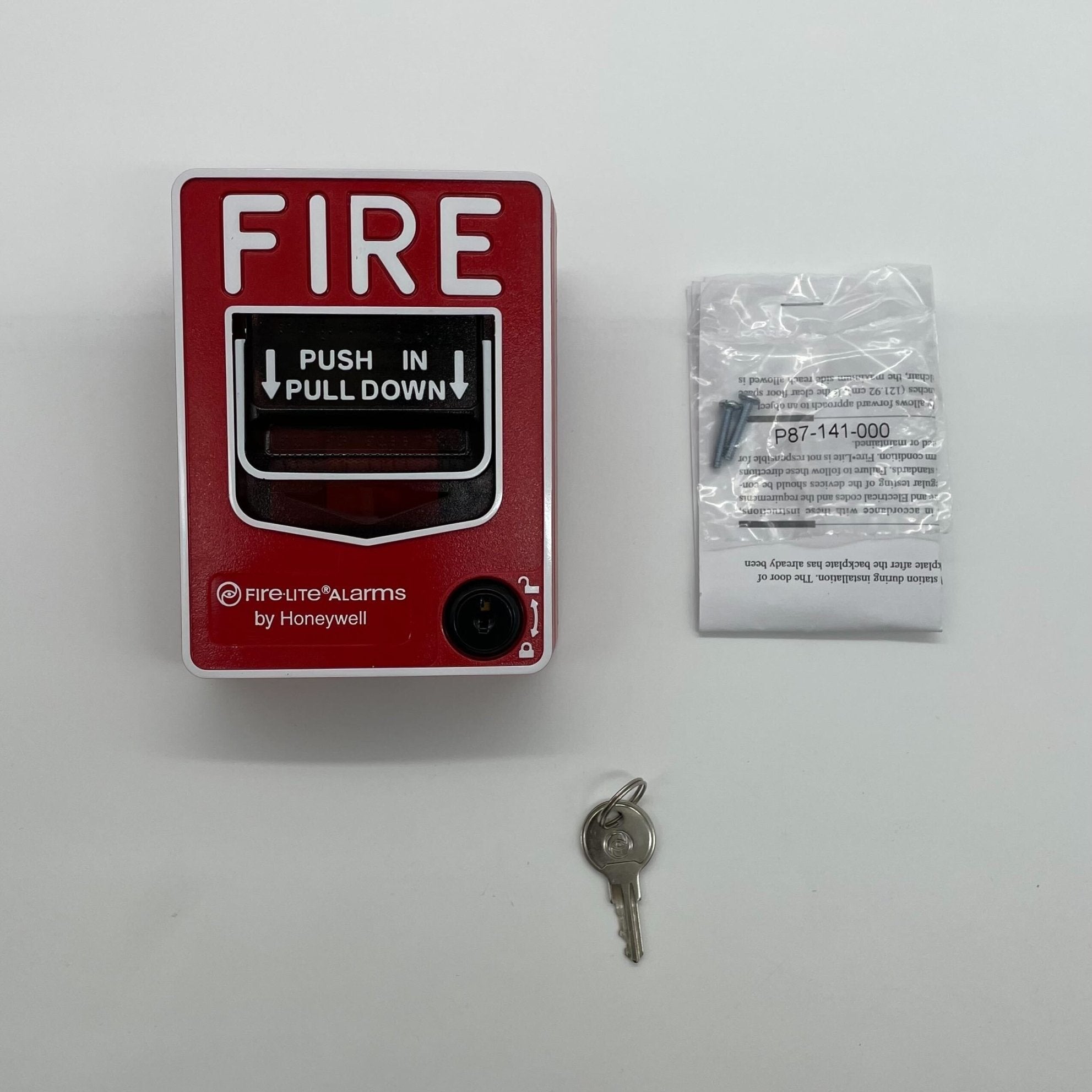

- Key supplied; quarter turn counter-clockwise, open the door, close it to reset
- Meets the ADA 5 lb maximum pull force; Braille and arrows on the handle
- 5.5 × 4.121 × 1.39 in.; terminal strip taking up to 12 AWG
- UL 38 and C(UL)US S711 certified, FM approved, CSFM 7150-0075:184
BG-12L is the same station without the auxiliary contacts and BG-12 uses a hex lock; BG-12S and BG-12SL are single action; BG-12LX is the addressable member. An SB-10 or SB-I/O backbox and the BG12TR trim ring ship separately.
