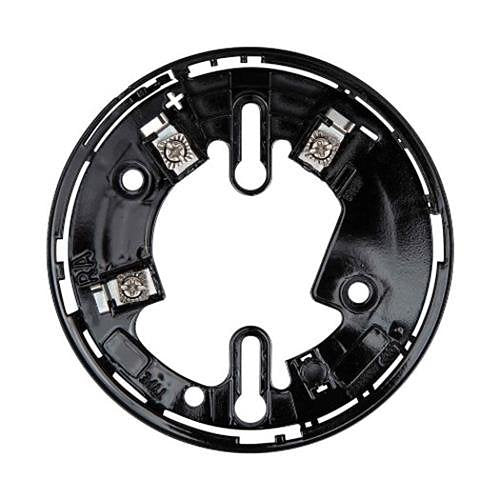

Fire-Lite B501-BL is a 4 in (10.16 cm) standard European flangeless mounting base in black. It gives a detector a secure plug-in mount and is UL/ULC Certified.
Wiring connects to SEMS screws and accepts 12 to 24 AWG conductors. A mechanical locking feature restricts removal of the attached sensor head, and the base is compliant with UL 268.
Features
- Plug-in base for quick, secure detector installation
- SEMS screws make the wiring connection easier
- Accepts 12 to 24 AWG wire
- Mechanical locking feature limits removal of the attached sensor head
- UL 268 compliant, UL/ULC Certified
- Black finish (the series is also offered in white and ivory)
Specifications
| Product type |
Smoke detector base |
| Color |
Black |
| Mounting |
Surface mount |
| Diameter |
4 in (10.16 cm) |
| Height |
0.7 in |
| Operating temperature |
-4 to 150 °F (-20 to 65.6 °C) |
| Standby current |
170 µA maximum |
| Approvals |
UL/ULC |
