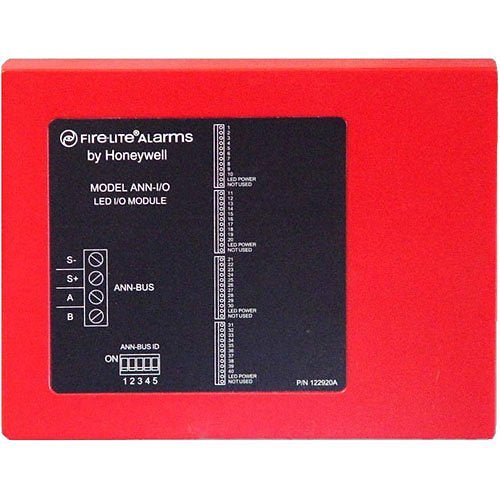

The Fire-Lite ANN-I/O LED Driver Module is designed to interface with Fire Alarm Control Panels to drive custom graphic annunciators and LED indicators.
This versatile module connects to the ANN-Bus and supports a wide range of fire alarm system applications requiring visual status indication.
The ANN-I/O module can drive up to 40 LEDs and is programmable to indicate activity for specific zones or points. Communication with the Fire Alarm Control Panel is achieved through a two wire ANN-Bus serial interface, while an additional two wires provide 24VDC power. A single four conductor unshielded cable can be used for both power and data, simplifying installation.
Housed in a compact plastic enclosure, the ANN-I/O can be mounted inside custom annunciators or accessory cabinets. The module supports remote installation up to 6000 feet from the control panel, offering flexible system design options.
Key Features
Drives up to 40 LED indicators
Connects to Fire-Lite ANN-Bus communication network
Programmable for zones or point status indication
Two wire serial communication with additional 24VDC power
Supports single four conductor cable for power and data
Remote installation up to 6000 feet from panel
Compact plastic enclosure for easy mounting
Supports up to eight ANN-Bus devices per panel
Compatible Fire-Lite Panels
ES-50X
ES-200X
MS-9600UDLS
MS-9200UDLS
MS-9050UD
MRP-2001
MRP-2002
MS-5UD
MS-10UD
The Fire-Lite ANN-I/O LED Driver Module provides a flexible and reliable solution for custom annunciation and system status indication in Fire-Lite fire alarm systems.
