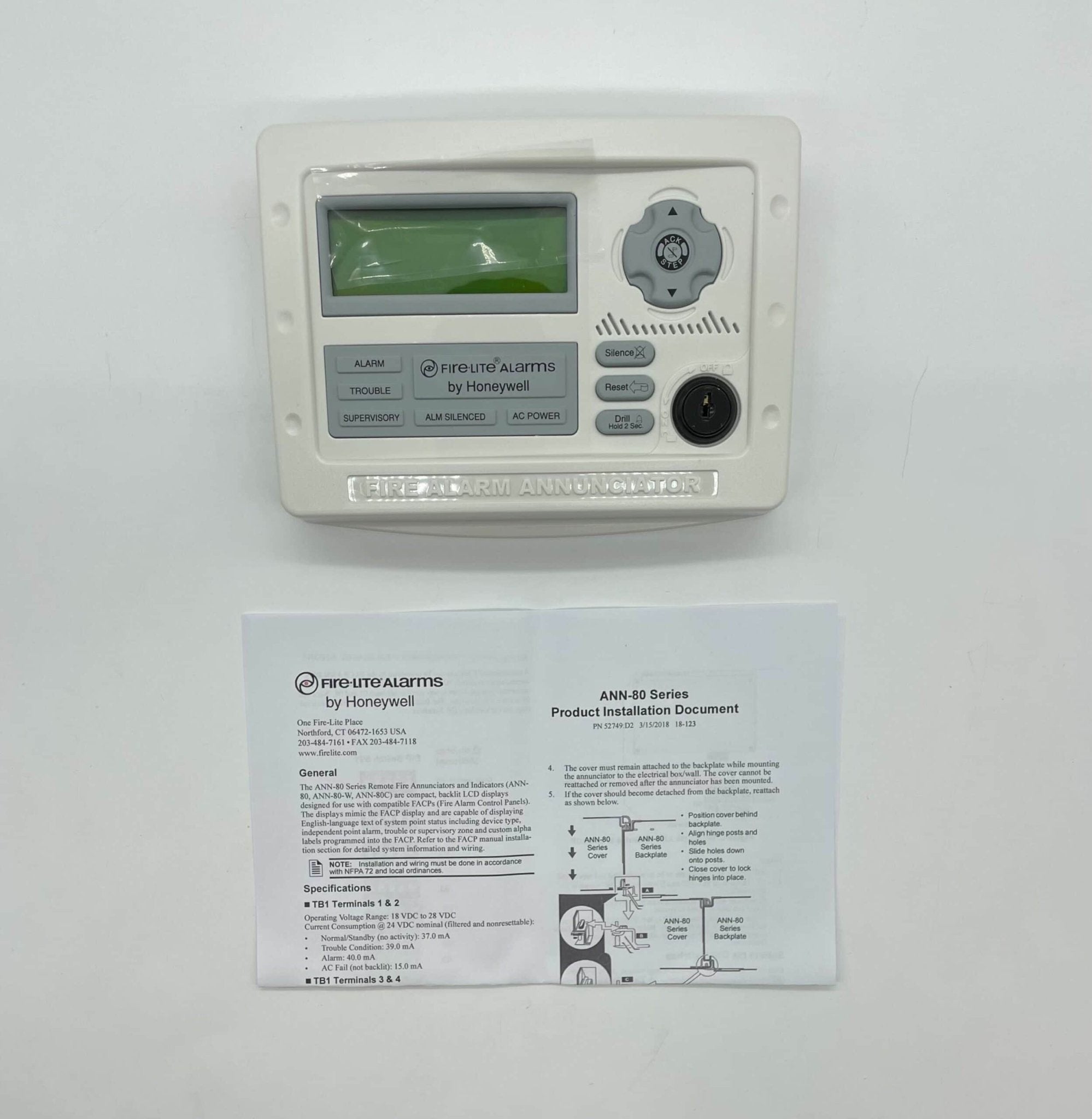

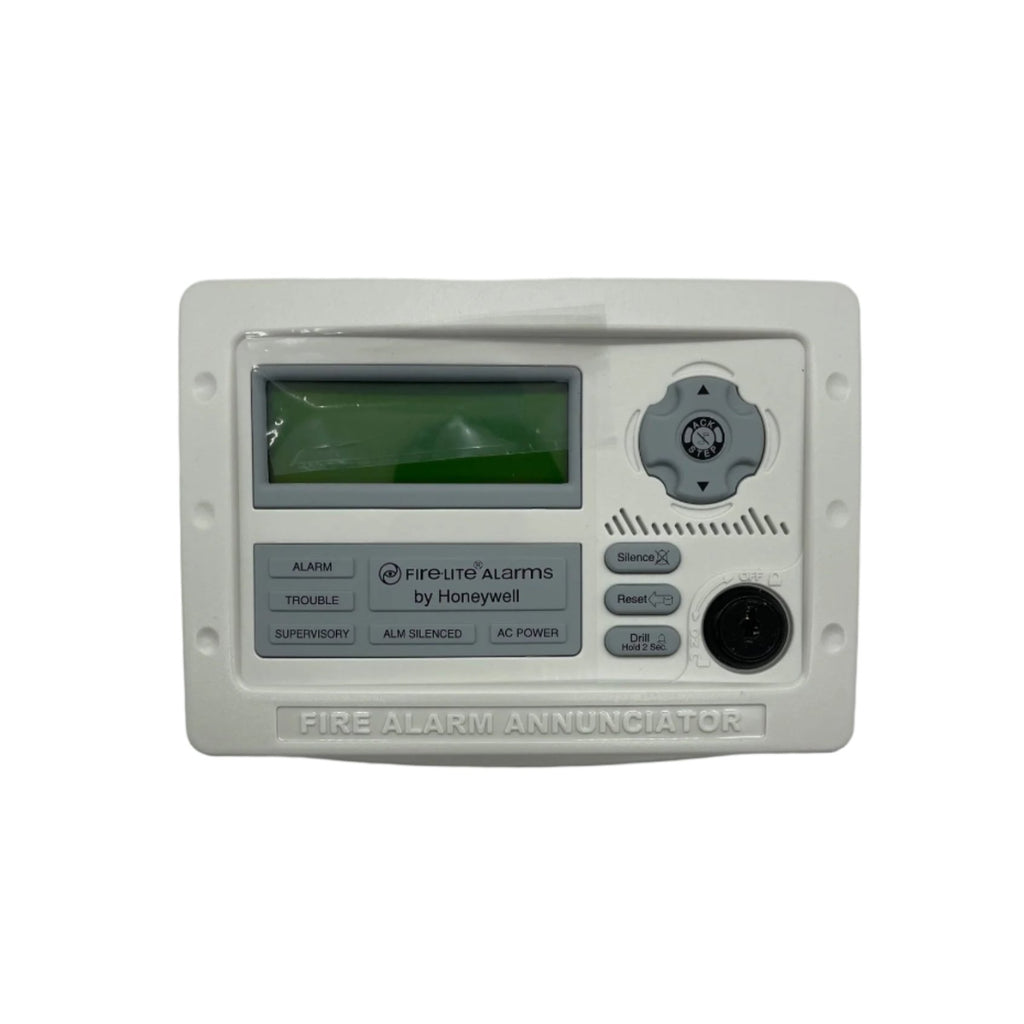

Fire-Lite ANN-80-W — white remote 80-character backlit LCD annunciator that mirrors the fire alarm control panel display over the ANN-Bus.
It is a remote display and command point, not a panel component. The LCD repeats device type, zone, point-level alarm, trouble and supervisory status and any custom alpha labels, while four keyswitch-protected buttons hand back the critical functions. A two-wire serial ANN-Bus carries data and two more conductors carry 24 VDC.
- Backlit 80-character LCD, 20 characters by 4 lines
- 18 to 28 VDC; 40 mA maximum at 24 VDC, filtered and non-resettable
- Up to eight units per panel ANN-Bus, each needing a unique ID number
- May be located up to 6,000 ft (1,800 m) from the panel
- Acknowledge, Signal Silence, Drill and Reset switches, each enabled at the panel
- 5.375" × 6.875" × 1.375", indoor dry location
- UL 864 9th Edition; UL S2424, FM approved, CSFM 7120-0075:0211
ANN-80 without a suffix is the identical unit in red, so colour is the only difference. The backbox ships separately and is colour matched: ANN-SB80KIT-W in white, ANN-SB80KIT-R in red.
