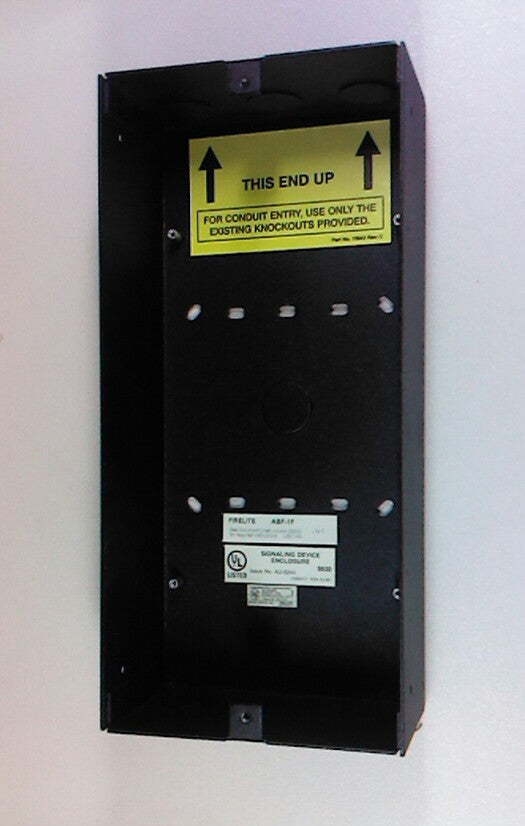

ABF-1F is a Fire-Lite annunciator flush box that provides remote, flush mounting of a single ACS Series annunciator module. It is used when an annunciator such as an ACM-16ATF or ACM-32AF is installed away from the fire alarm control panel and the enclosure is to be recessed into the wall.
Specifications
| Type |
Flush-mount annunciator box |
| Capacity |
One annunciator module |
| Box dimensions |
9.938 in. (25.24 cm) H x 4.625 in. (11.75 cm) W x 2.5 in. (6.35 cm) D |
| Trim plate |
Painted metal, 11 in. (27.94 cm) H x 6.25 in. (15.875 cm) W |
| Conduit knockouts |
For 1/2 in. (1.27 cm) conduit |
| Included |
Trim plate, mounting hardware, adhesive-backed annunciator label for the dress plate |
Compatibility and installation notes
- For Fire-Lite ACS Series annunciator modules (ACM/AEM-16ATF, ACM/AEM-32AF), which communicate with the panel over an EIA-485 loop.
- Flush mounting only; for two modules use the ABF-2F, for one to four modules the ABF-4F.
- Semi-flush alternatives with a smoked glass door and keylock are the ABF-1DF (one module) and ABF-2DF (two modules).
Related models
Documents
Specifications from Fire-Lite data sheet DF-52378:B1 (8/1/2011). Manufacturer specifications are subject to change.
