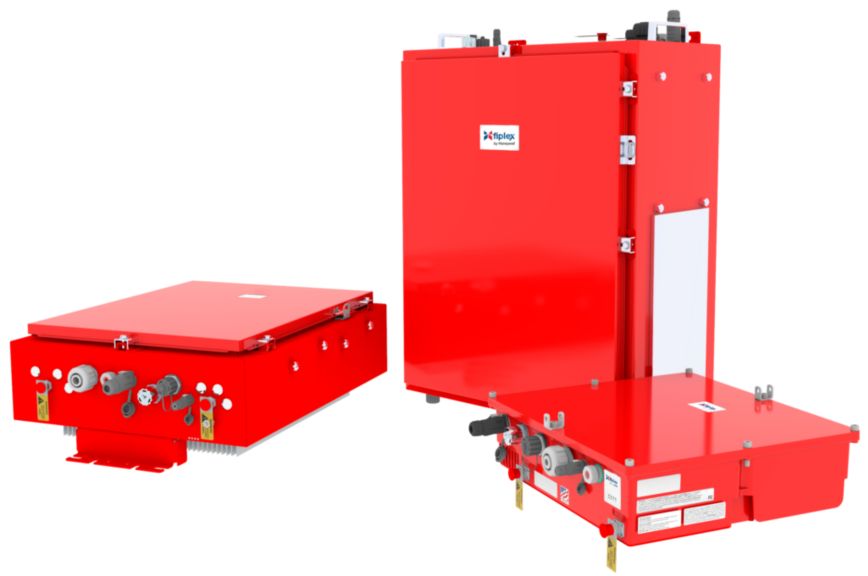

Fiplex by Honeywell HONBDA-D-S27AH — single-band 800 MHz high-capacity digital signal booster, Class A, DC powered.
A bi-directional amplifier carries public safety radio into the parts of a building the outside signal does not reach, so responders keep radio contact indoors. This one is fully digital, filtering 64 channels individually rather than passing one broad slice of spectrum.
- 800 MHz band only: 806-824 MHz uplink, 851-869 MHz downlink
- 64 channel filters plus 4 bandwidth-adjustable, 12.5 kHz to 150 kHz
- Maximum gain 85 dB, adjustable across 30 dB in 1 dB steps per link
- Composite output 0.5 W (+27 dBm) downlink, +27 dBm uplink; noise figure 9 dB max
- Oscillation detection with auto-shutdown; antenna isolation alarm
- NEMA 4 enclosure, N(f) connectors, dry-contact alarms
- UL 2524 2nd Edition Listed with SGS; NFPA 72, 1221 and 1225 compliant
HONBDA-A-S27AH is the same unit on AC power; HONBDA-D-S33AH and HONBDA-D-S37AH raise the downlink to 2 W and 5 W. The similar 727AH, 733AH and 737AH numbers are the 700 MHz models and include FirstNet Band 14, outside the 800 MHz passband of this one.
