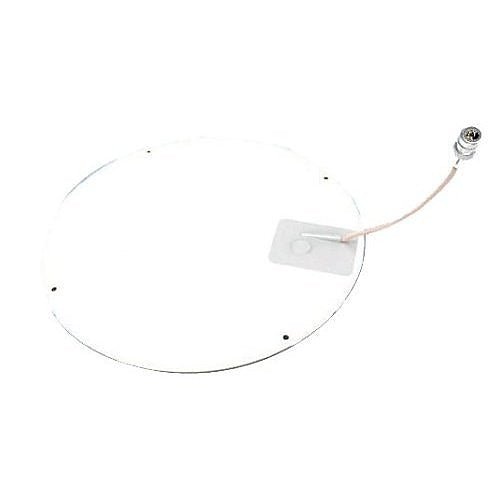

Fiplex by Honeywell BDA-OIA-1301000-2 — ultra-thin omnidirectional indoor antenna covering 130 to 1000 MHz.
It mounts on a ceiling or a gypsum wall with no ground plane behind it, and the radiating element is entirely flat, so it sits almost invisibly against the surface rather than protruding like a whip or a dome. The 130 to 1000 MHz span covers the VHF and UHF land-mobile range in one unit instead of a single band at a time.
- Frequency range 130 to 1000 MHz, omnidirectional pattern
- Nominal gain unity
- VSWR 1.8:1 typical, 2.0:1 maximum
- Power handling 5 W, nominal impedance 50 ohms
- Standard termination N female
- 15.25 in. diameter, 0.07 in. thick, under 1 lb, white; mounting bolts provided
Check the gain before comparing it with other Fiplex indoor antennas: the data sheet rates this one at unity, trading gain for bandwidth and a flat profile, unlike the narrower ceiling antennas specified over a single band such as 136 to 174 MHz. The N female termination means the coaxial jumper is a separate order, and this is an indoor unit only.
