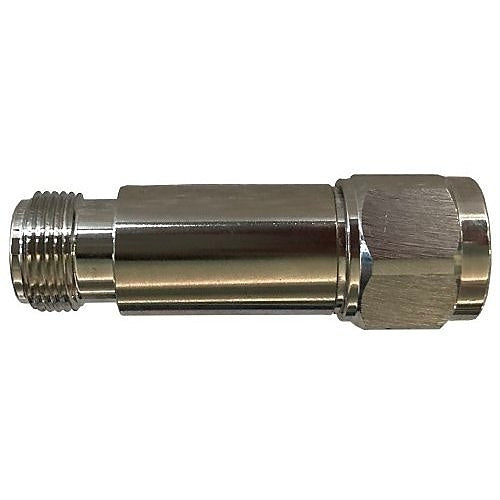

Fiplex by Honeywell BDA-NATTEN-0510 is a 10 dB attenuator rated for 5 W, intended for coaxial RF lines in bi-directional amplifier installations. It is a passive device with a 50 ohm nominal impedance and N male connectors.
This is the 10 dB version of the 5 W attenuator; other connector types can be supplied on request. It is specified up to 3 GHz.
Features
- Passive coaxial configuration
- Nominal impedance of 50 ohms
- Power level of 5 W with 10 dB attenuation
- N male connectors as standard, other types on request
- Maximum frequency of 3 GHz
Specifications
| Product type |
Signal attenuator |
| Attenuation |
10 dB |
| Power level |
5 W |
| Impedance |
50 ohms (nominal) |
| Maximum frequency |
3 GHz |
| Connectors |
N male (standard) |
