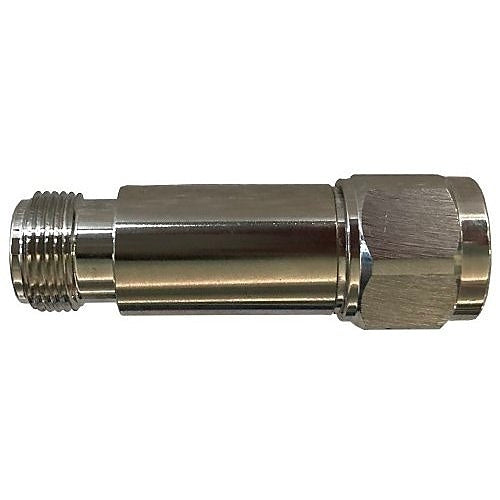

Fiplex by Honeywell BDA-NATTEN-0503 is a 3 dB, 5 W coaxial attenuator with N-type connectors. It is a passive device with a nominal impedance of 50 ohms and is part of the Fiplex bi-directional amplifier accessories.
N male connectors are standard, and other connector types can be requested.
Features
- Passive device in a coaxial configuration
- Attenuation of 3 dB
- Nominal impedance 50 ohms
- Power level 5 W
- N male connectors as standard, other types on request
Specifications
| Type |
Signal attenuator |
| Attenuation |
3 dB |
| Power |
5 W |
| Impedance |
50 ohms |
| Connectors |
N male |
| Maximum frequency |
3 GHz |
