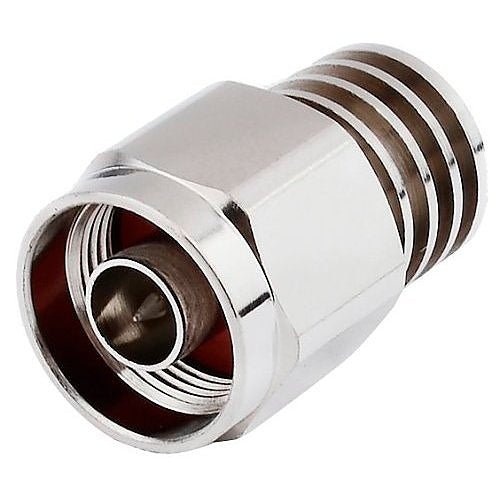

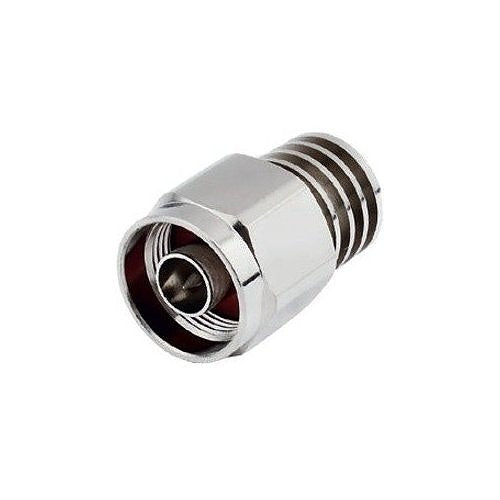

Fiplex BDA-LD-05 — 5 W, 50 Ω in-line coaxial RF termination (load) with an N male connector, for Fiplex by Honeywell passive DAS.
A termination absorbs RF power at a port that must not be left open, keeping a 50 Ω distribution network matched. Honeywell documents it on data sheet HON-62077 alongside the 50 W BDA-LD-50, as part of the Fiplex passive DAS line.
- Frequency: DC to 3 GHz
- Input power: 5 W CW; natural convection cooling
- Impedance 50 Ω; VSWR stated as 1.2:1
- Connector: N male, in-line coaxial; any operating position
- Temperature: -22 to 149 °F (-30 to +65 °C)
- MTBF over 1,000,000 hours; weight 0.17 lb (0.08 kg)
Choose by power: the BDA-LD-50 is the 50 W finned version (1.1 lb, MTBF over 500,000 hours). Size the load to the RF power present at the port it terminates.
